ANC/Active Sound Control Microphone Connector For Inputs And Outputs (2019 2020 2021)
NOTE: The front ANC/active sound control microphone, front HFL-ANC/active sound control microphone, and the HFL microphone are the same parts.

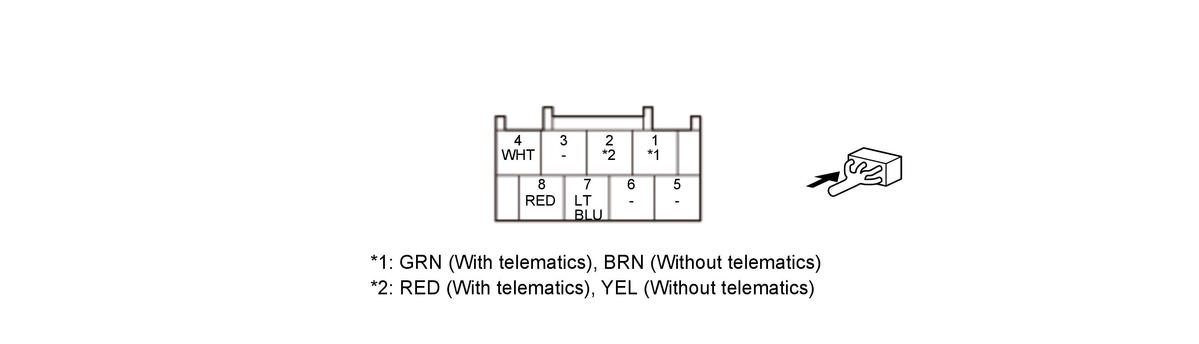

Front ANC/Active Sound Control Microphone 8P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | MIC GND | Ground for HFL microphone |
| 2 | MIC SIG*1 MIC SIG+*2 |
Outputs HFL microphone signal |
| 3 | Not used | - - - |
| 4 | MIC PWR | Power source for front HFL-ANC/active sound control microphone |
| 5 | Not used | - - - |
| 6 | Not used | - - - |
| 7 | HFT MUTE | Inputs HFL microphone directivity switching signal |
| 8 | F MIC+ | Outputs front ANC/active sound control microphone signal |
*1: With telematics
*2: Without telematics

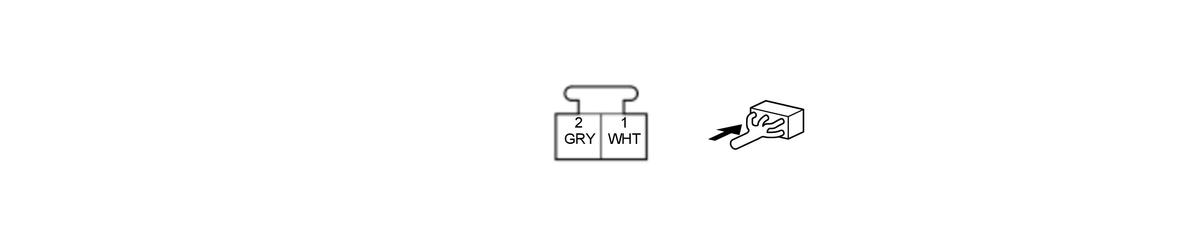

Rear ANC/Active Sound Control Microphone 2P Connector (female terminals) Display Audio Type
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | R MIC+ | Outputs rear ANC/active sound control microphone signal |
| 2 | R MIC SH | Shield for terminal No. 1 |

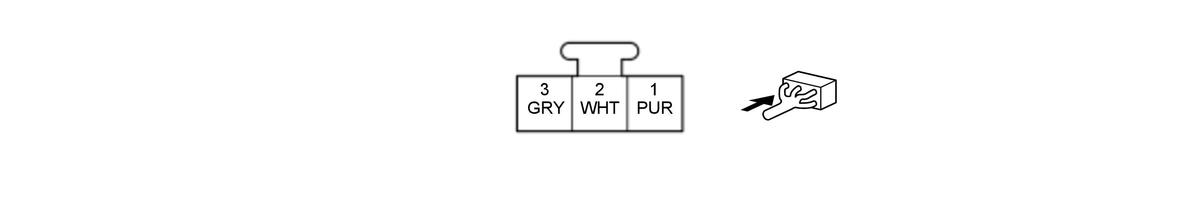

Rear ANC/Active Sound Control Microphone 3P Connector (female terminals) Color Audio Type
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ACC (DC/DC)*1 ACC *2 |
Power source for accessories |
| 2 | R MIC+ | Outputs sound signal to ANC/active sound control unit |
| 3 | R MIC SH | Shield for terminal No. 2 |
*1: With auto idle stop system
*2: Without auto idle stop system
