USB Adapter Connector For Inputs And Outputs (2016 2017 2018)
NOTE: The USB adapter, the USB adapter A, and the USB adapter B are the same parts.

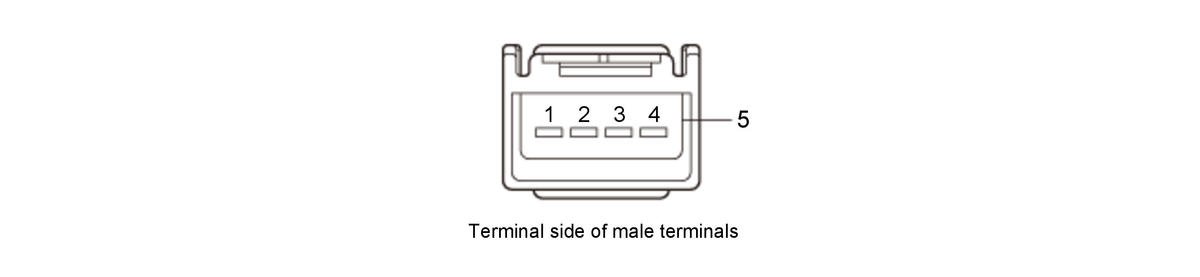

USB ADAPTER 5P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | USB VBUS | Inputs power source for USB device |
| 2 | USB DATA- | Communication signal |
| 3 | USB DATA+ | Communication signal |
| 4 | USB GND | Ground for USB device |
| 5 | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
