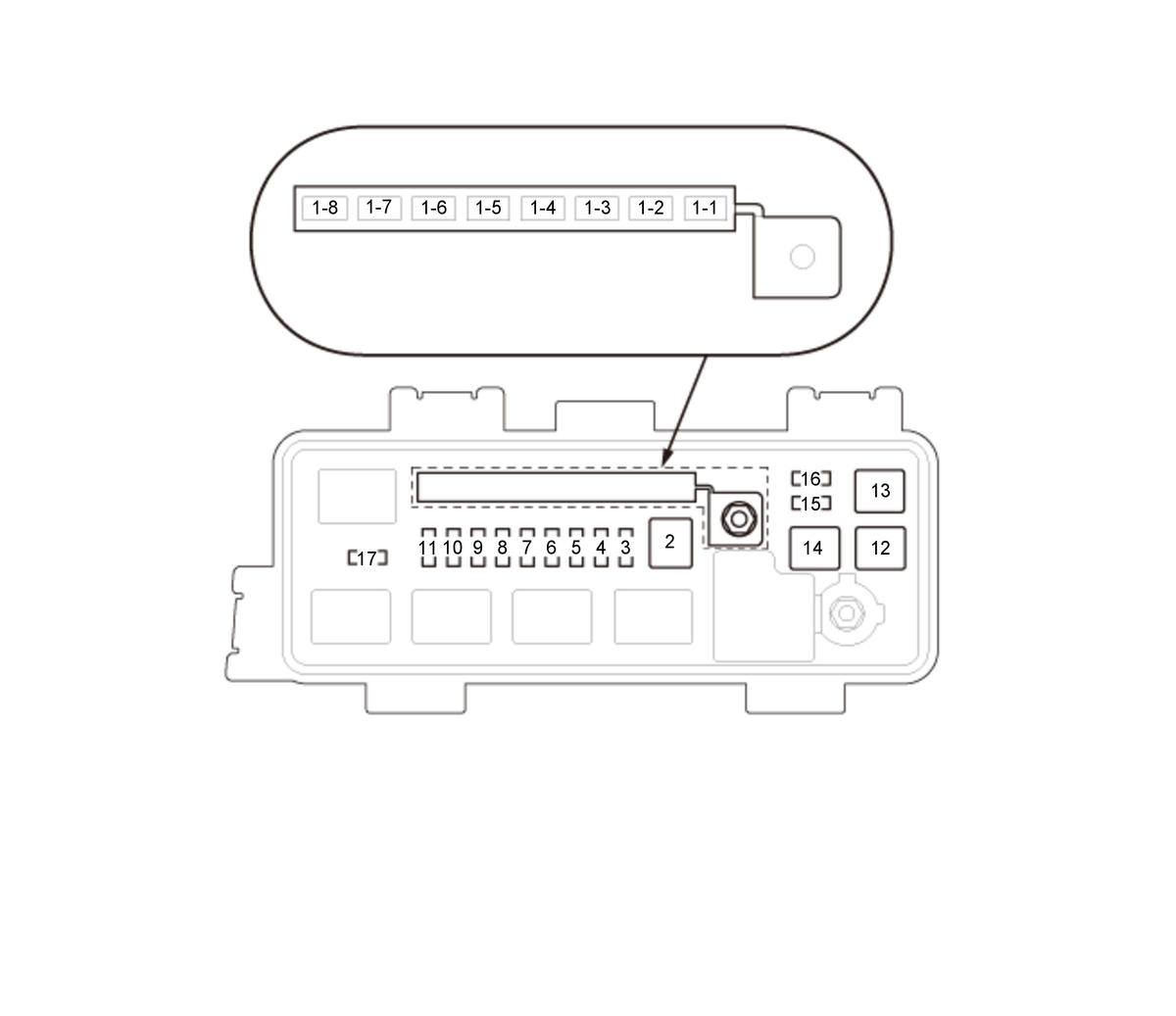

Auxiliary Under-Hood Fuse/Relay Box
Auxiliary Under-Hood Fuse/Relay Box Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B1-1 | 60 A | EPS control unit | |
| B1-2 | 60 A | No. C14, No. C15, No. C17, No. C18, and No. C36 fuses in the under-dash fuse/relay box | |
| B1-3 | 60 A | No. C1, No. C2, No. C3, No. C4, and No. C5 fuses in the under-dash fuse/relay box, No. C11 and No. C13 fuse in the under-dash fuse/relay box (via power window relay), Power window relay | |
| B1-4 | 40 A | Power tailgate control unit | |
| B1-5 | 30 A | No. C6, No. C7, No. C8, No. C9, No. C10, and No. C24 fuses in the under-dash fuse/relay box (via IG1A relay) | |
| B1-6 | 30 A | No. C28, No. C29, No. C30, No. C31, No. C32, and No. C39 fuses in the under-dash fuse/relay box (via IG1B relay) | |
| B1-7* | 20 A | i-VTM control unit, i-VTM relay | *: AWD |
| Via i-VTM relay: i-VTM control unit (4WD PWR), Rear differential pump motor |
|||
| B1-8 | 40 A | No. B17 fuse (via starter cut relay 1), Starter (via starter cut relay 1 and starter cut relay 2) |
|
| B2 | - - - | Not used | |
| B3 | - - - | Not used | |
| B4 | 7.5 A | 12 volt battery sensor | |
| B5 | 20 A | No. C26, No. C37, and No. C38 fuses in the under-dash fuse/relay box | |
| B6* | 20 A | Power tailgate control unit (+B PTG CLOSER MTR) | *: With power tailgate |
| B7 | 20 A | Console accessory power socket (via console accessory power socket relay) | |
| B8 | 20 A | Cargo area accessory power socket (via cargo area accessory power socket relay) | |
| B9* | 15 A | Via heated windshield wiper area relay: Heated windshield wiper area, Heated windshield wiper area switch indicator |
*: With heated windshield wiper area |
| B10 | 10 A | No. C22 and No. C40 fuses in the under-dash fuse/relay box (via ACC relay circuit (built into the under-dash fuse/relay box)) | |
| Via IG2 relay circuit (built into the under dash fuse/relay box): No. C21 and No. C23 fuses in the under-dash fuse/relay box, Keyless access/TPMS control unit (IG2-MAIN) |
|||
| B11 | - - - | Not used | |
| B12 | - - - | Not used | |
| B13 | - - - | Not used | |
| B14 | - - - | Not used | |
| B15 | - - - | Not used | |
| B16* | 20 A | Second row seat heater control unit (+B HEATER(15A)) (via second row seat heater relay) | *: With second row seat heater |
| B17 | 7.5 A | PCM (STRLD) |
