Removal and Installation

  1. CKP Sensor Cover - Remove

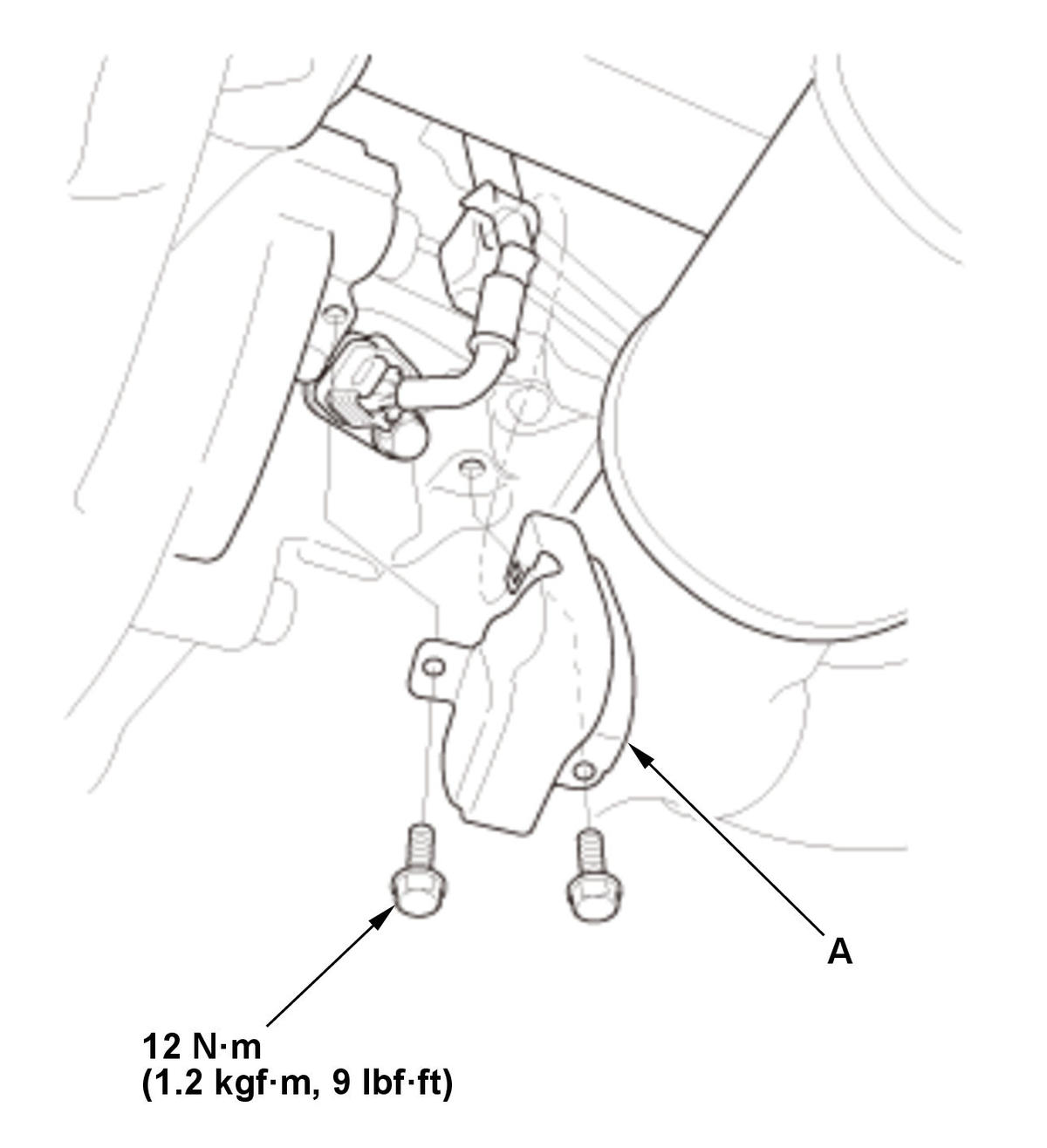

    Fig 1: CKP Sensor Cover With Torque Specifications
    GHH308447Courtesy of HONDA, U.S.A., INC.

    Remove the CKP sensor cover (A).

  2. CKP Sensor - Remove

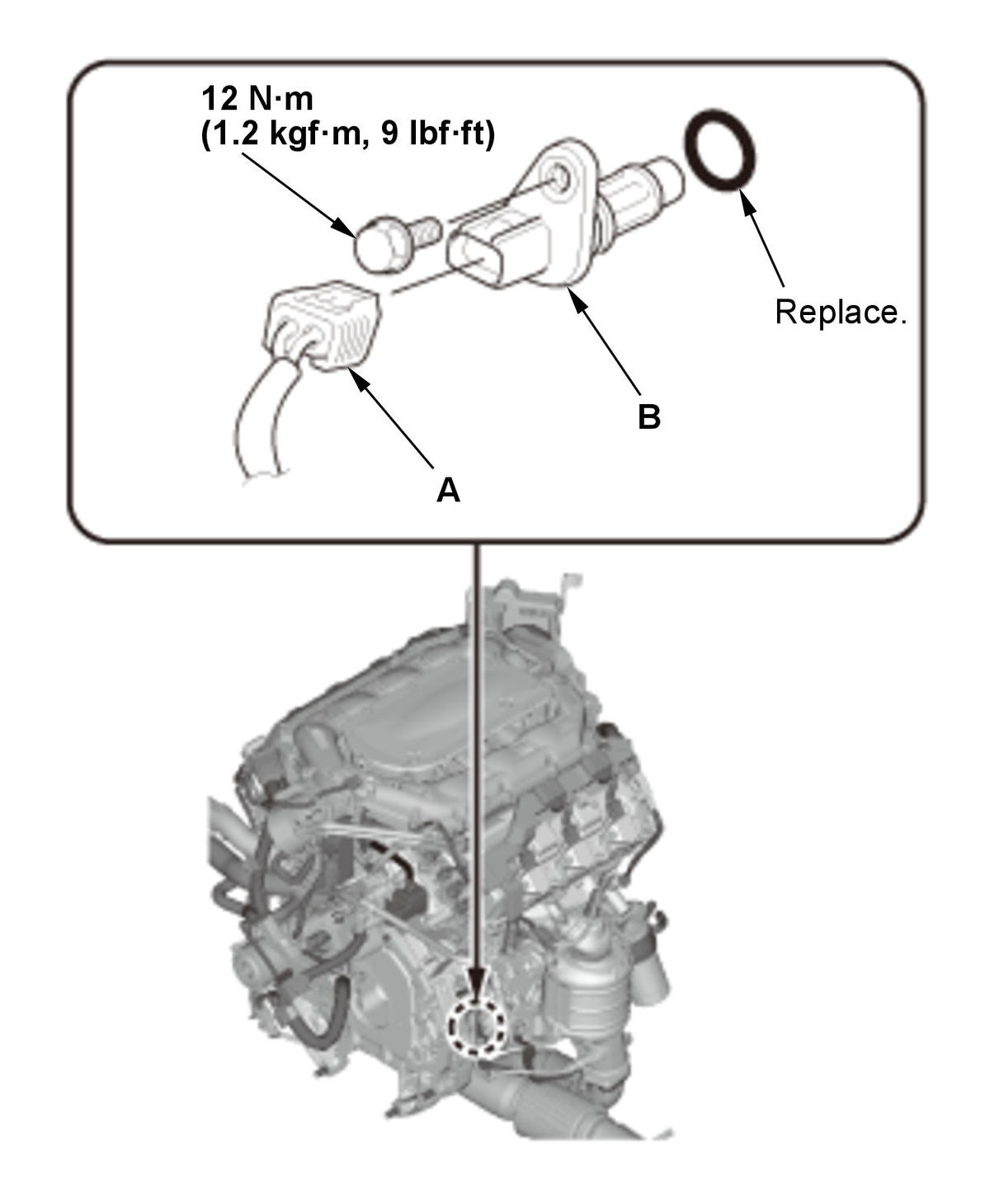

    Fig 2: CKP Sensor With Torque Specifications
    GHH308448Courtesy of HONDA, U.S.A., INC.
    1. Disconnect the connector (A).

    2. Remove the CKP sensor (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new O-ring.
  4. CKP Pattern - Clear/Learn
