Audio-Navigation System DTC: 1702 (Navigation System) (2024 2025)
Refer to: NAVIGATION SYSTEM DESCRIPTION - SYSTEM DIAGRAMDTC 1702 : SXM Antenna Error
NOTE:
- If the detection circuit reference voltage does not match the threshold, the audio-navigation unit determines an abnormality and stores the DTC.
- Check the vehicle 12 volt battery condition first - Refer to: Check the vehicle 12 volt battery condition first .
- Before you troubleshoot, make sure to follow the General Troubleshooting Information - Refer to: HOW TO TROUBLESHOOT THE NAVIGATION SYSTEM .
- Check the connectors for poor connections or loose terminals.
- Problem verification
-1. Clear the hard error codes - Refer to: HOW TO TROUBLESHOOT THE NAVIGATION SYSTEM .
-2. Turn the vehicle to the OFF (LOCK) mode then the ON mode.
-3. Turn on the audio-navigation unit, and select the XM radio.
-4. Check for hard error codes - Refer to: HOW TO TROUBLESHOOT THE NAVIGATION SYSTEM .
Is DTC 1702 indicated?
YES
The failure is duplicated, go to step 2.
NO
Intermittent failure, the system is OK at this time.
- Roof antenna check (SXM SIG line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

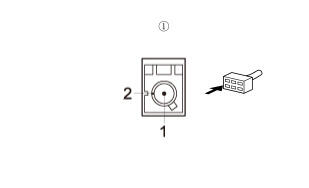

Roof antenna connector B (2P)
-3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.
Test condition
Vehicle ON mode
Roof antenna connector B (2P): disconnected
Test point 1
Roof antenna connector B (2P) (male terminals) No. 1:
Test point 2
Body ground
Is there about 5.0 V?
YES
ROOF ANTENNA REMOVAL AND INSTALLATION .
NO
Go to step 3.
- Open wire check (SXM lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Audio-navigation unit connector K (2P)
-3. Measure the resistance between test points 1 and 2.
Test condition
Vehicle OFF (LOCK) mode
Audio-navigation unit connector K (2P): disconnected
Roof antenna connector B (2P): disconnected
Test point 1
Audio-navigation unit connector K (2P) No. 1 - Refer to: AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS (2024 2025)
Test point 2
Roof antenna connector B (2P) (male terminals) No. 1:
Test point 1
Audio-navigation unit connector K (2P) No. 2 - Refer to: AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS (2024 2025)
Test point 2
Roof antenna connector B (2P) (male terminals) No. 2:
Are there 1.0 Ohm or less?
YES
The wires are not open. Go to step 4.
NO
Replace the antenna lead.
- Shorted wire check (SXM SIG line)
-1. Measure the resistance between test points 1 and 2.
Test condition
Vehicle OFF (LOCK) modeAudio-navigation unit connector K (2P): disconnectedRoof antenna connector B (2P): disconnected
Test point 1
Audio-navigation unit connector K (2P) No. 1 - Refer to: AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS (2024 2025)
Test point 2
Body ground
Is there 1.0 MOhm or more?
YES
The wire is not shorted. Go to step 5.
NO
Replace the antenna lead.
- Shorted wire check (SXM SIG line to SXM SH line)
-1. Measure the resistance between test points 1 and 2.
Test condition
Vehicle OFF (LOCK) modeAudio-navigation unit connector K (2P): disconnectedRoof antenna connector B (2P): disconnected
Test point 1
Audio-navigation unit connector K (2P) No. 1 - Refer to: AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS (2024 2025)
Test point 2
Audio-navigation unit connector K (2P) No. 2 - Refer to: AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS (2024 2025)
Is there 1.0 MOhm or more?
YES
The wires are not shorted. Go to step 6.
NO
Replace the antenna lead.
- Roof antenna check (substitution)
-1. Substitute a known-good roof antenna.
-2. Reconnect all the connectors, and recheck.
Does the symptom go away?
YES
ROOF ANTENNA REMOVAL AND INSTALLATION .
NO
Replace the audio-navigation unit - Refer to: AUDIO-NAVIGATION UNIT REMOVAL AND INSTALLATION (2024 2025) .
