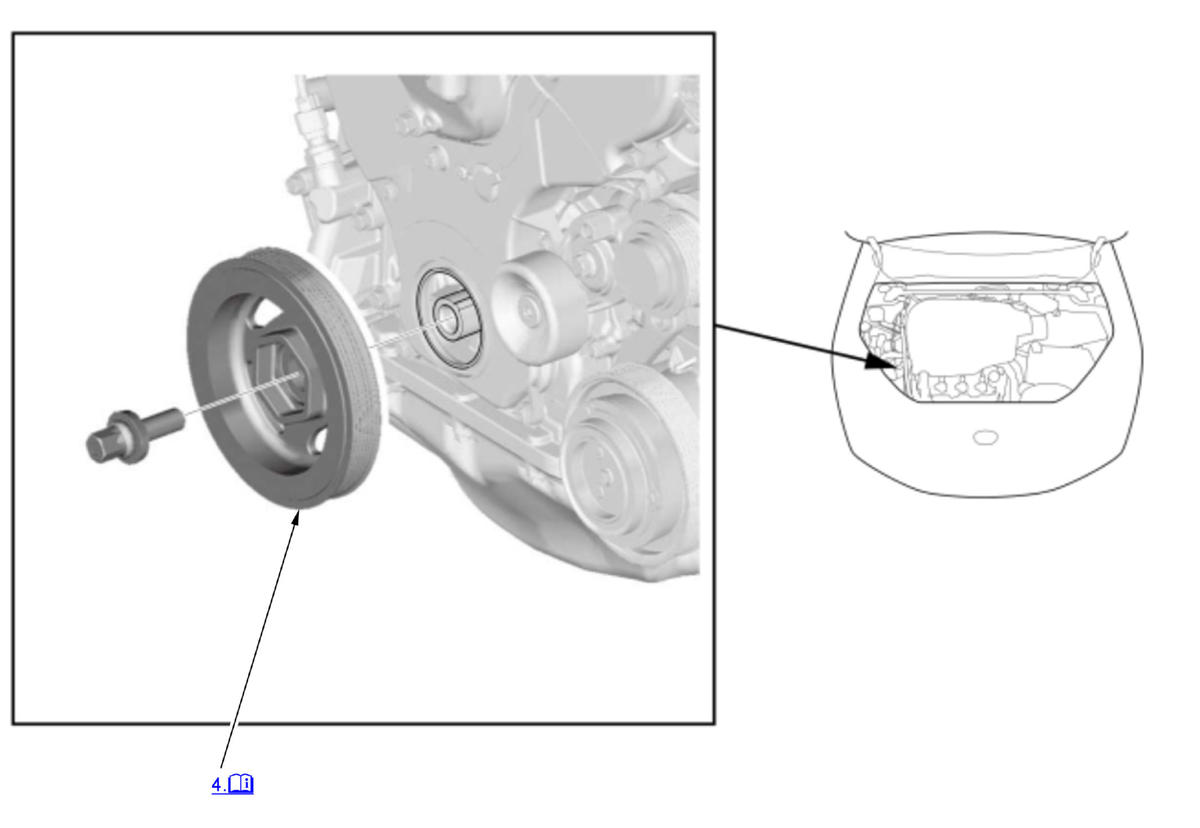

Crankshaft Pulley Removal and Installation: Removal

NOTE:

Where icon is shown, further information shown below.

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

Drive Belt - Remove
Right Front Wheel - Remove
Right Front Inner Fender - Remove
NOTE:
Remove the appropriate portion of the right front inner fender.

Crankshaft Pulley - Remove

Courtesy of HONDA, U.S.A., INC.

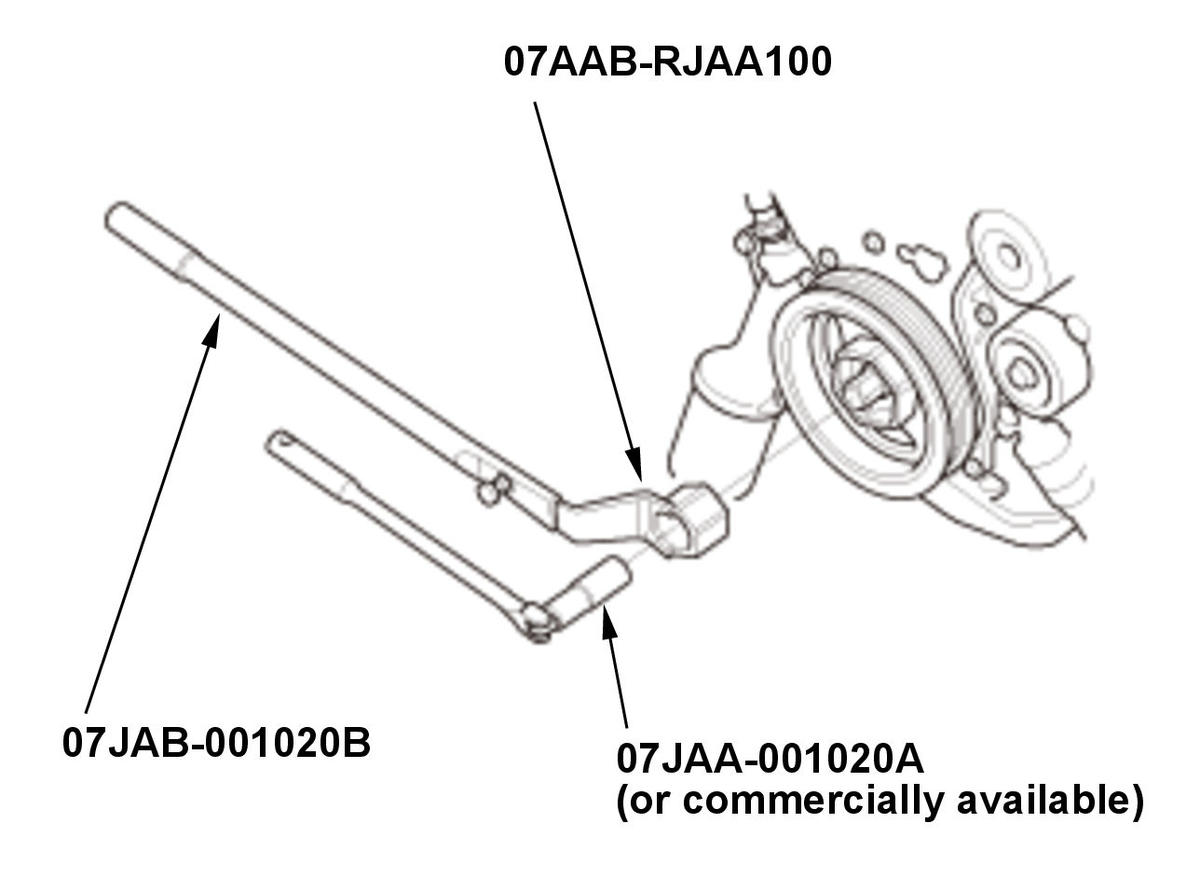

1. Hold the pulley with the holder handle and the crankshaft pulley holder.

2. Remove the bolt with a heavy duty 19 mm socket and a breaker bar, then remove the crankshaft pulley.
