DTC P16BB: General Description

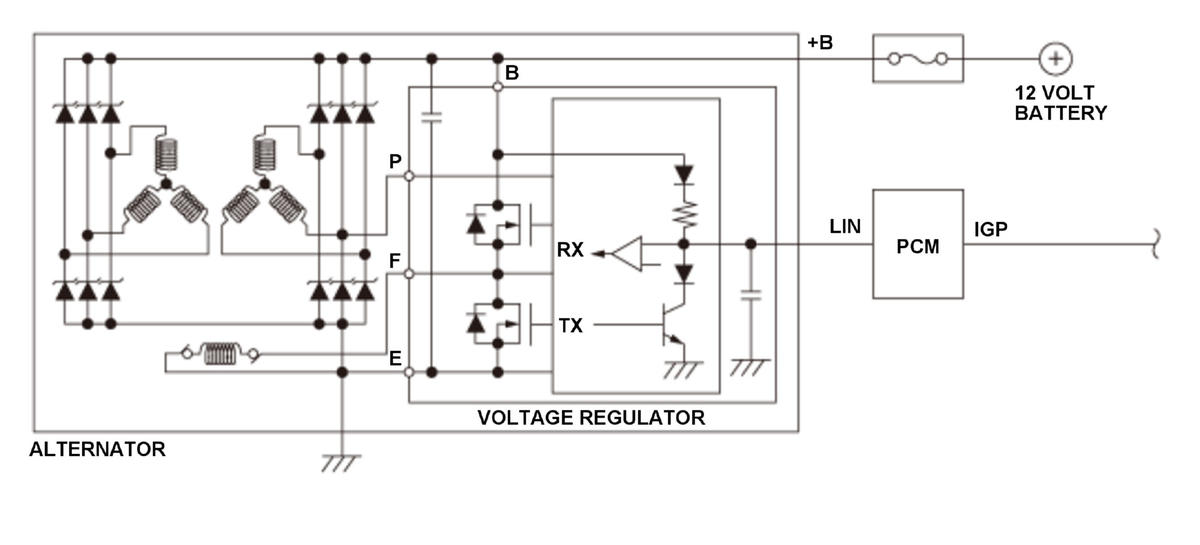

Driven by the engine, the alternator generates electricity according to the commands from the powertrain control module (PCM). The local interconnect network (LIN) line is connected to the alternator and transmits/receives information to/from the PCM. The PCM sets a target generating voltage in the range of 12.5 V to 14.5 V and commands the alternator via the LIN line. The alternator output signal (duty signal) is sent to the PCM, and is varied according to the 12 volt battery's state of charge, the electrical load, and the engine speed. If the IGP terminal voltage and the alternator output are out of a specified value for a set time while the PCM commands a target generating voltage to 14.5 V at a specified engine speed, the PCM detects a malfunction and stores a DTC.
