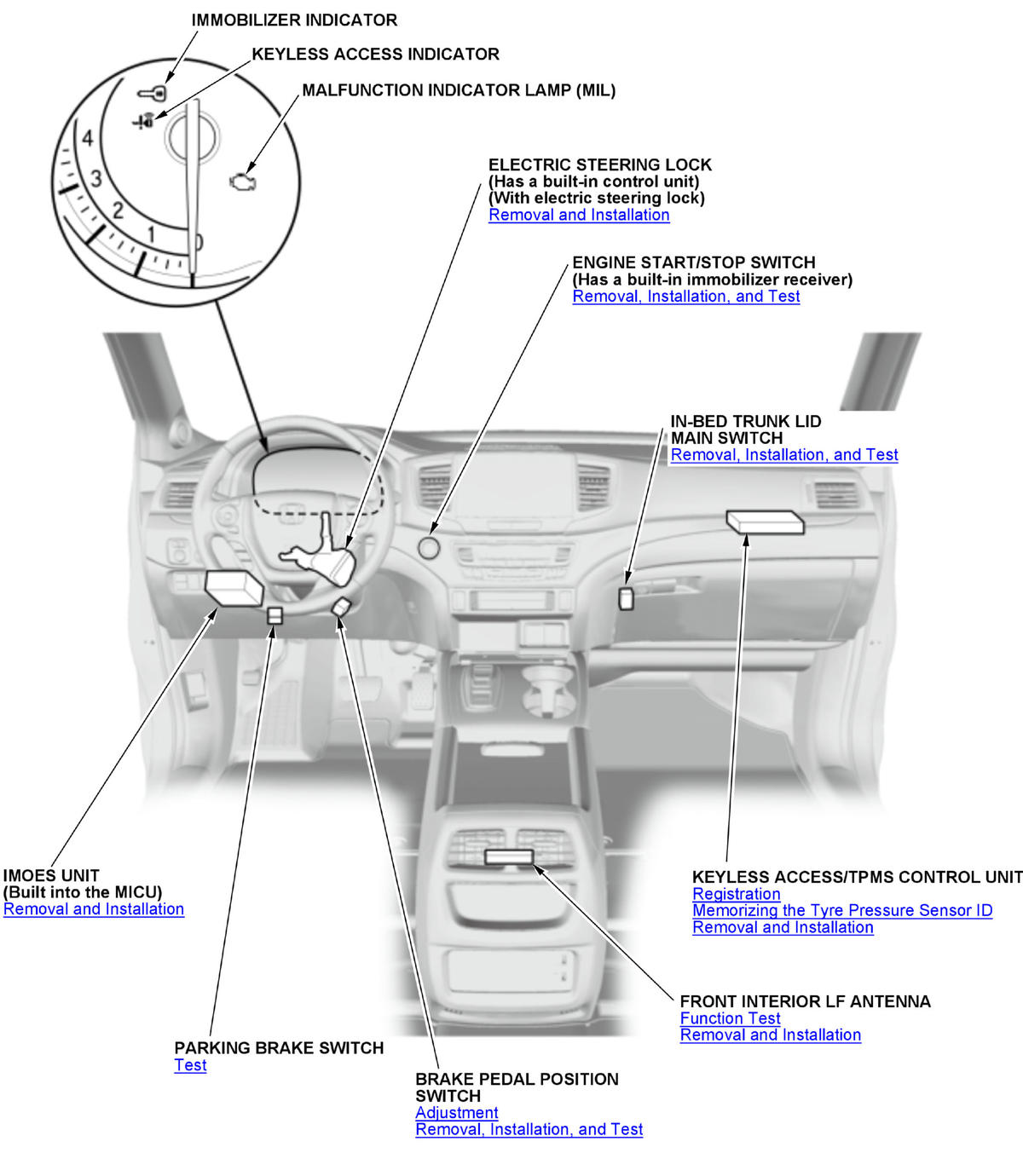

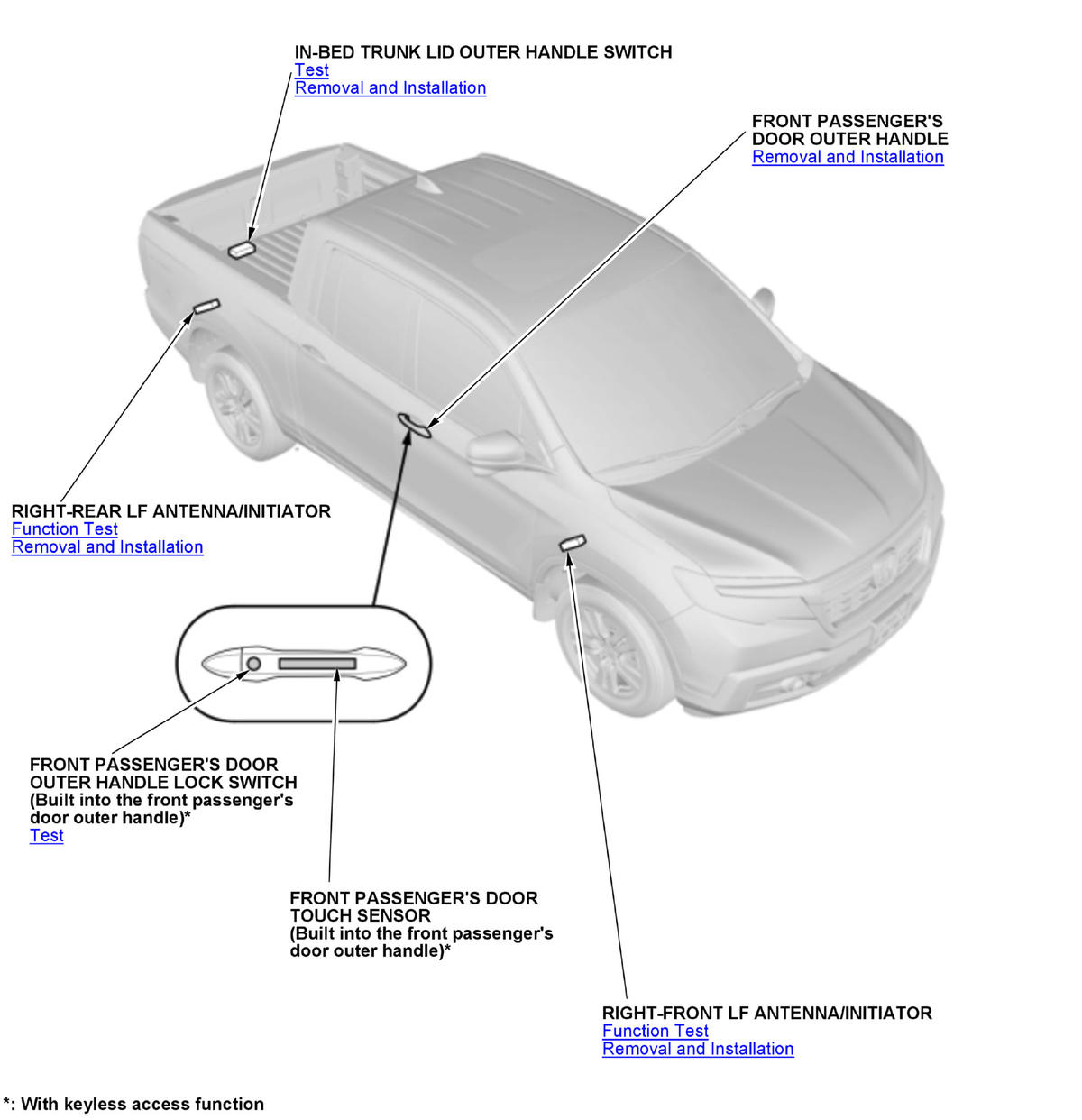

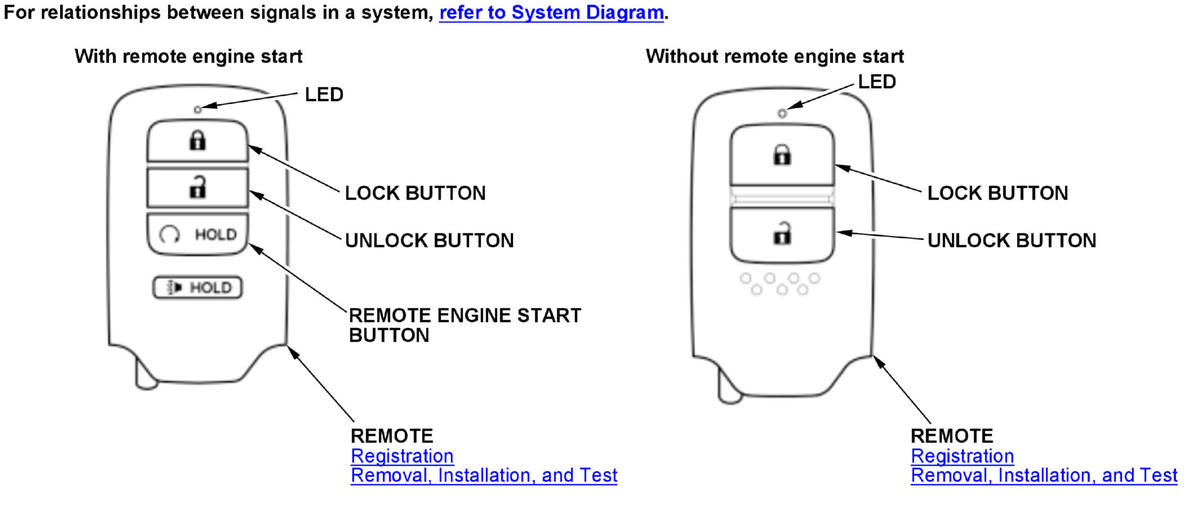

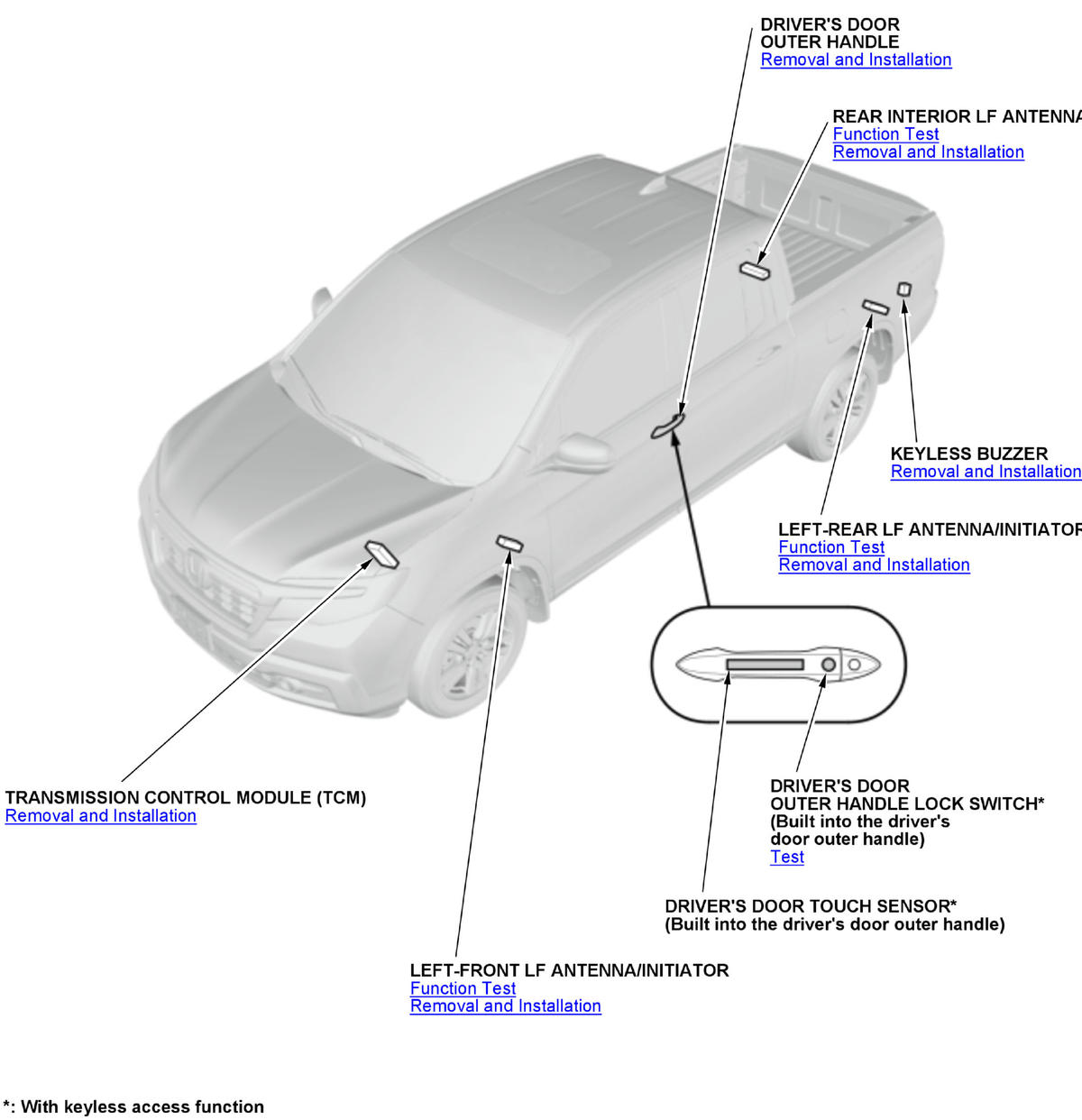

Keyless Access System Component Location Index (9-Speed A/T) (2020 2021 2022 2023 2024 2025)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
