BSI Radar Unit Connector for Inputs and Outputs (2017 2018 2019)
Left Side BSI Radar Unit 6P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION | Detects ignition signal |
| 2 | DR BSD IND+ | Drives the left BSI alert indicator |
| 3 | B-CAN_H | B-CAN communication (high) circuit |
| 4 | Not used | --- |
| 5 | B-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |

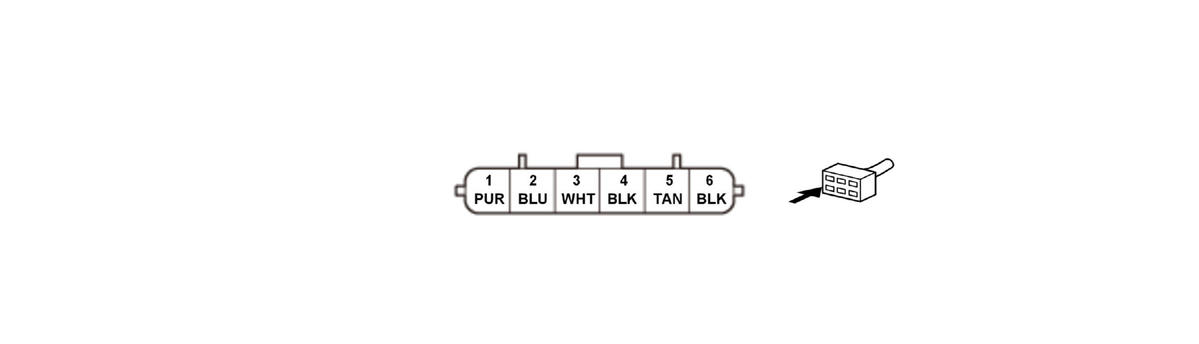

Right Side BSI Radar Unit 6P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION | Detects ignition signal |
| 2 | AS BSI IND+ | Drives the right BSI alert indicator |
| 3 | B-CAN_H | B-CAN communication (high) circuit |
| 4 | GND | Ground circuit for the BSI radar unit |
| 5 | B-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |
