Auxiliary Jack Assembly Connector for Inputs and Outputs (2017 2018)

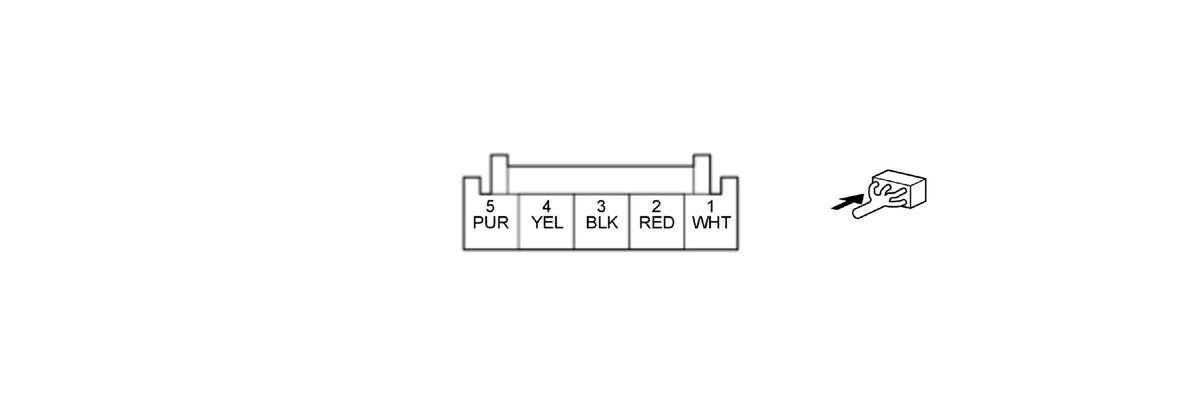

AUXILIARY JACK ASSEMBLY 5P CONNECTOR (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | AUX RCH | Outputs auxiliary sound signal |
| 2 | AUX LCH | Outputs auxiliary sound signal |
| 3 | AUX SIG GND | Ground for auxiliary sound signal |
| 4 | AUX GND | Ground for auxiliary jack assembly connection signal |
| 5 | AUX DET | Inputs connection signal for auxiliary jack assembly |
