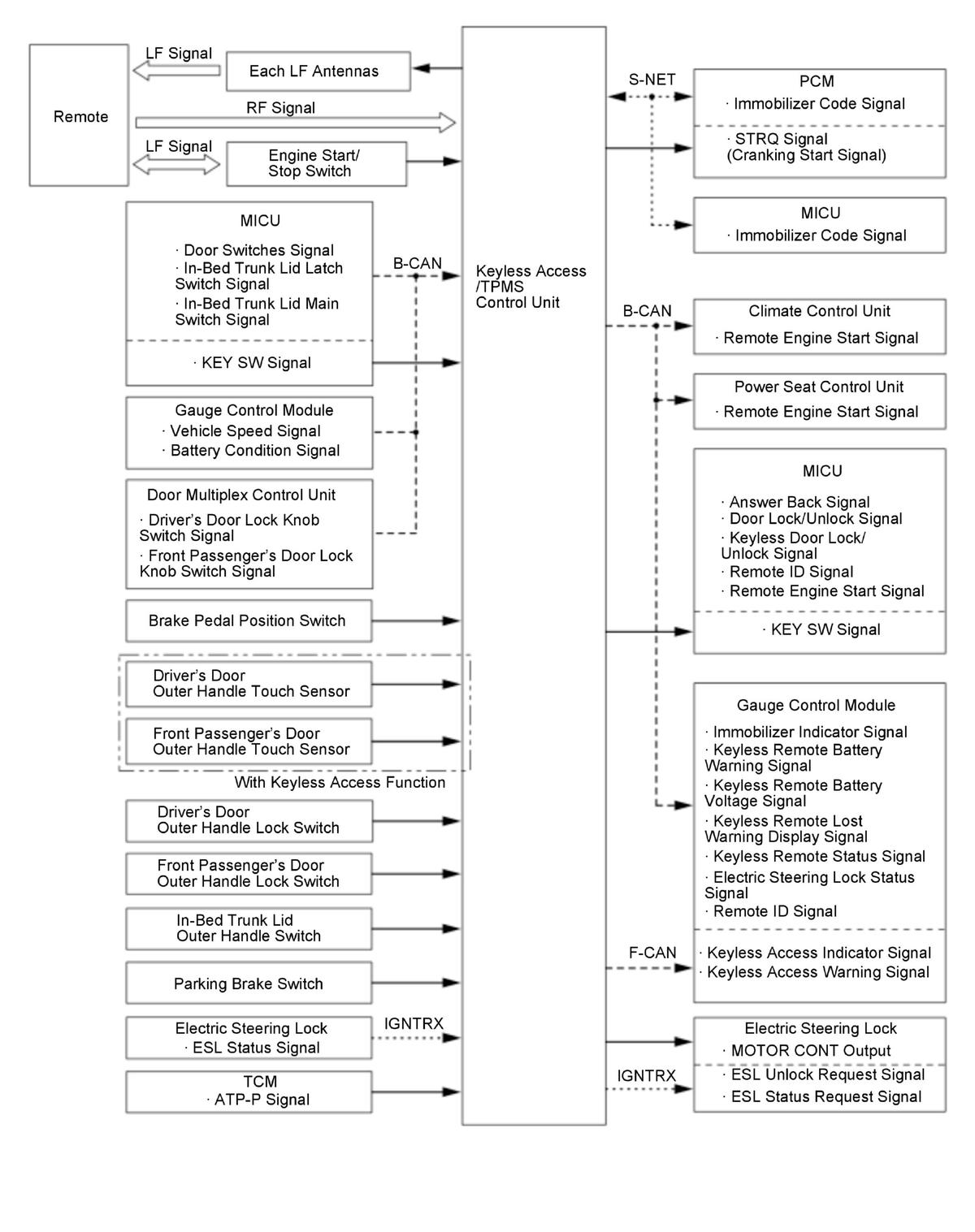

Keyless Access System Description - System Diagram (2021 2022 2023 2024 2025)

For locations of each component on the vehicle, refer to Component Location Index .

GHH459864Courtesy of HONDA, U.S.A., INC.
