Power Window Master Switch Connector for Inputs and Outputs (2019)

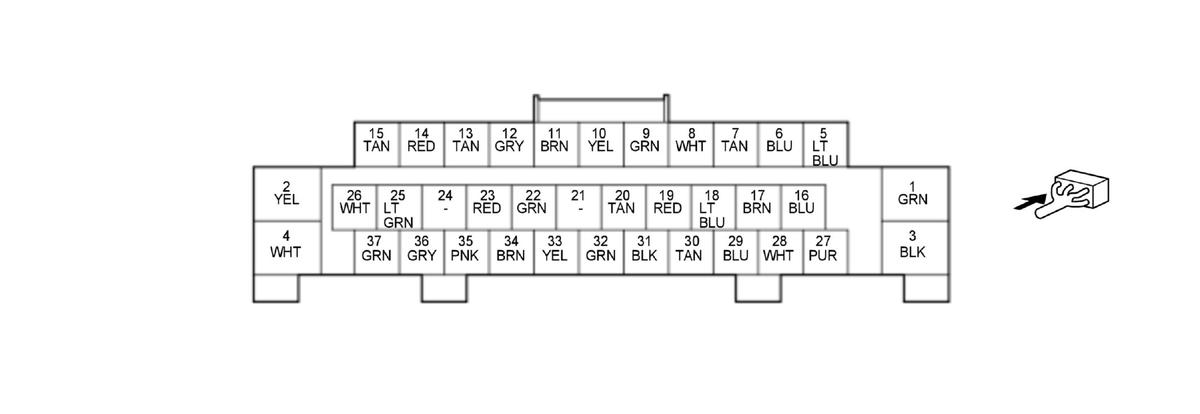

POWER WINDOW MASTER SWITCH 37P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	DR DN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	DR UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	PGND	Power window master switch ground	Less than 0.2 V at all times
4	+B DR P/W	+B power source	About battery voltage at all times
5* 1	R/C MIRR MTR (L-UD)	Detects power mirror switch (R/C MIRR MTR (L-UD)) signal	When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position)
6* 1	R-LR	Detects power mirror switch (R-LR) signal	With power mirror selector switch in R position: less than 0.2 V
7* 1	R-UD	Detects power mirror switch (R-UD) signal	With power mirror selector switch in R position: less than 0.2 V
8* 2	RETRA DR CLOSE	Drives retract actuator	With vehicle in ON mode and power mirror retract operation: about battery voltage If none of above conditions are met: less than 0.2 V
9* 2	RETRA DR OPEN	Drives retract actuator	With vehicle in ON mode and power mirror extend operation: about battery voltage If none of above conditions are met: less than 0.2 V
10* 4	M-IND1	Outputs driving position memory switch indicator 1 signal	Indicator 1 ON: pulse (depending on indicator brightness) Indicator 1 OFF: less than 0.2 V
11* 2	RETRA SW	Outputs power mirror retract switch signal	With vehicle in ON mode and power mirror retract switch in EXTEND position: less than 0.2 V With vehicle in ON mode, and power mirror retract switch in RETRACT position: about battery voltage
12* 4	M-IND2	Outputs driving position memory switch indicator 2 signal	Indicator 2 ON: pulse (depending on indicator brightness) Indicator 2 OFF: less than 0.2 V

*1: Without DPMS

*2: With retractable mirror

*3: With power mirror defogger

*4: With DPMS

Terminal number	Terminal name	Description	Signal
13	DR SVCC	Drives driver's power window motor hall IC unit	With door multiplex control unit is wake-up mode: about battery voltage With door multiplex control unit is sleep mode: less than 0.2 V
14	FUEL LID SW+	Detects fuel fill door opener switch signal	With fuel fill door opener switch OFF: about battery voltage With fuel fill door opener switch OFF: less than 0.2 V
15* 3	L HEAT MIR	Drives left power mirror defogger	With mirror defogger ON mode: about battery voltage
16	RL RLY UP* 1/P/W RR-L SW(U)* 4	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
17	DR PLSA* 1/DR FLSA* 4	Detects driver's power window motor hall IC unit signal	---
18	RR RLY UP* 1/P/W RR-R SW(U)* 4	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
19	DR PLSB* 1/DR FLSB* 4	Detects driver's power window motor hall IC unit signal	---
20* 4	M-SET	Detects driving position memory switch (SET) signal	With driving position memory set switch ON: less than 0.2 V With driving position memory set switch OFF: about 5 V
21	---	Not used	---
22* 4	M-POS1	Detects driving position memory switch position 1 signal	With driving position memory switch 1 OFF: about 5 V With driving position memory switch 1 ON: less than 0.2 V
23* 4	M-POS2	Detects driving position memory switch position 2 signal	With driving position memory switch 2 OFF: about 5 V With driving position memory switch 2 OFF: about 5 V
24	---	Not used	---
25	IG2 A/C	IG2 power source	With vehicle in ON mode: about battery voltage
26	+B BACKUP	+B power source	About battery voltage at all times
27	RL RLY DN* 1/P/W RR-L SW(D)* 4	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
28	B-CAN_H	Communication line	---
29	RR RLY DN* 1/P/W RR-R SW(D)* 4	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
30	B-CAN_L	Communication line	---
31	GND	Power window master switch ground	Less than 0.2 V at all times

*1: Without DPMS

*2: With retractable mirror

*3: With power mirror defogger

*4: With DPMS

Terminal number	Terminal name	Description	Signal
32	DR SILCON UNLOCK	Detects driver's door lock knob switch (UNLOCK) signal	With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V
33	DR SILCON LOCK	Detects driver's door lock knob switch (LOCK) signal	With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V
34	DR K/CYL UNLOCK	Detects driver's door key cylinder switch (UNLOCK) signal	With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V
35	DR K/CYL LOCK	Detects driver's door key cylinder switch (LOCK) signal	With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V
36	LIN(WINDOW)	Communication line	---
37	ILLUMI+PW	Outputs power window switch illumination signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V

*1: Without DPMS

*2: With retractable mirror

*3: With power mirror defogger

*4: With DPMS
