VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019)

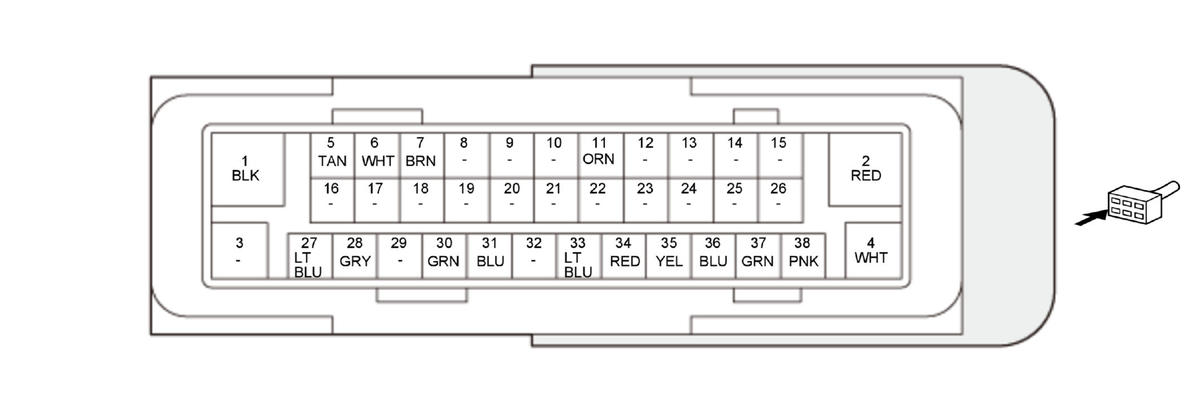

VSA Modulator-Control Unit Inputs and Outputs for 38P Connector (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
PGND |
Ground for the VSA modulator-control unit |
| 2 |
MTR+B |
Power source for the motor relay |
| 3 |
Not used |
--- |
| 4 |
FSR+B |
Power source for the fail-safe relay |
| 5 |
BRAKE DIAG |
Detects brake light relay |
| 6 |
F-CAN_H |
F-CAN communication circuit |
| 7 |
F-CAN_L |
F-CAN communication circuit |
| 8 |
Not used |
--- |
| 9 |
Not used |
--- |
| 10 |
Not used |
--- |
| 11 |
IG1 VSA |
Power source for activating the system |
| 12 |
Not used |
--- |
| 13 |
Not used |
--- |
| 14 |
Not used |
--- |
| 15 |
Not used |
--- |
| 16 |
Not used |
--- |
| 17 |
Not used |
--- |
| 18 |
Not used |
--- |
| 19 |
Not used |
--- |
| 20 |
Not used |
--- |
| 21 |
Not used |
--- |
| 22 |
Not used |
--- |
| 23 |
Not used |
--- |
| 24 |
Not used |
--- |
| 25 |
Not used |
--- |
| 26 |
Not used |
--- |
| 27 |
FRL- |
Detects left-front wheel speed sensor signal |
| 28 |
FRL+ |
Detects left-front wheel speed sensor signal |
| 29 |
Not used |
--- |
| 30 |
RRR+ |
Detects right-rear wheel speed sensor signal |
| 31 |
RRR- |
Detects right-rear wheel speed sensor signal |
| 32 |
Not used |
--- |
| Terminal number |
Terminal sign |
Description |
| 33 |
K-LINE |
Communication with HDS |
| 34 |
RRL- |
Detects left-rear wheel speed sensor signal |
| 35 |
RRL+ |
Detects left-rear wheel speed sensor signal |
| 36 |
BRAKE LAMP |
Drives the brake light relay |
| 37 |
FRR+ |
Detects right-front wheel speed sensor signal |
| 38 |
FRR- |
Detects right-front wheel speed sensor signal |
