AC Inverter Unit Connector for Inputs and Outputs
| Connector Index |
| AC INVERTER UNIT CONNECTOR A (2P) |
| AC INVERTER UNIT CONNECTOR B (10P) |

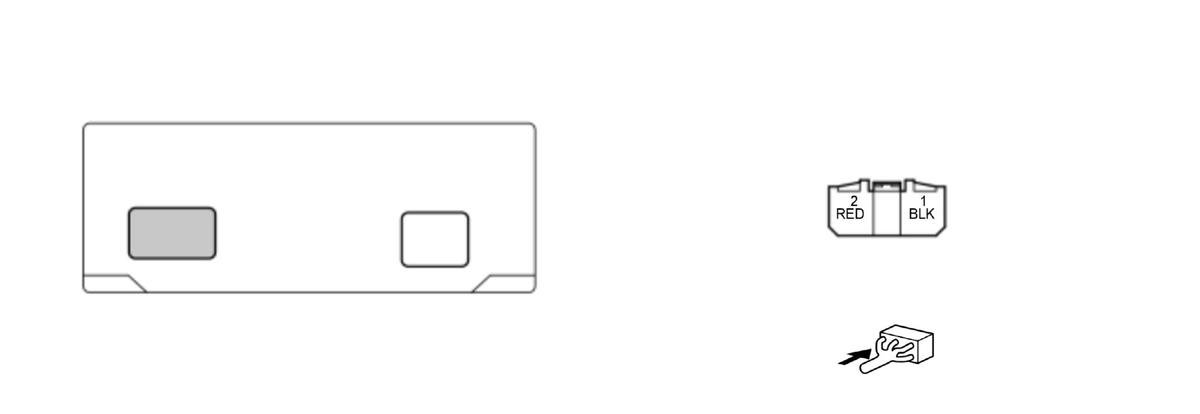

AC INVERTER UNIT CONNECTOR A (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
GND |
AC inverter unit ground |
Less than 0.2 V at all times |
| 2 |
AC +B |
Detects AC inverter relay signal |
With vehicle in ACCESSORY or ON mode: about battery voltage |

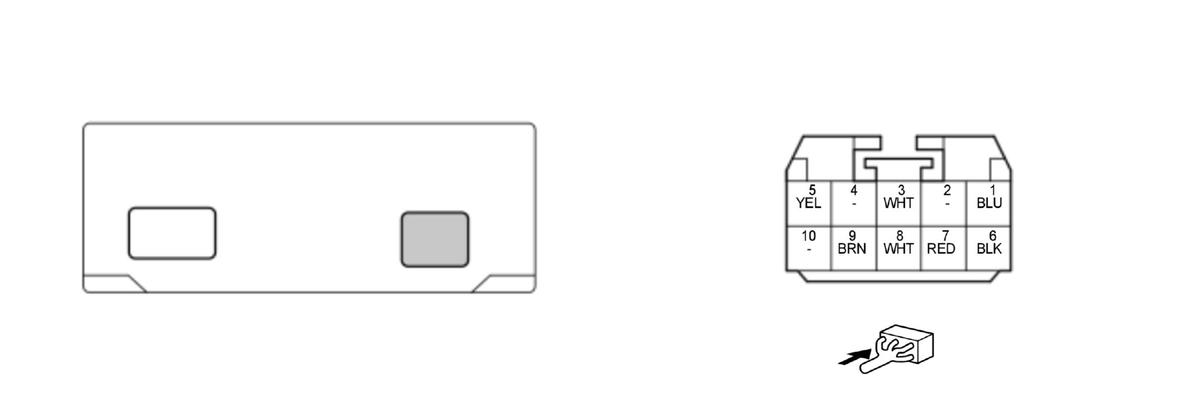

AC INVERTER UNIT CONNECTOR B (10P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
AC SW |
Detects AC power outlet switch signal |
With vehicle in ACCESSORY or ON mode, and AC power outlet switch pressed: about battery voltage |
| 2 |
--- |
Not used |
--- |
| 3 |
AC- |
Outputs AC power outlet signal |
--- |
| 4 |
--- |
Not used |
--- |
| 5 |
AC+ |
Outputs AC power outlet signal |
--- |
| 6 |
NSW |
Detects NSW signal |
With vehicle in ON mode, P position/mode, and engine speed at least 500 rpm: less than 0.2 V
If none of above conditions are met: about 5 V |
| Terminal number |
Terminal name |
Description |
Signal |
| 7 |
AC RLY CL |
Drives AC inverter relay |
With vehicle in ACCESSORY or ON mode: about battery voltage |
| 8 |
150W IND |
Outputs 150 W indicator signal |
When switching to 150 W: less than 0.2 V |
| 9 |
400W IND |
Outputs 400 W indicator signal |
When switching to 400 W: less than 0.2 V |
| 10 |
--- |
Not used |
--- |
