Exploded View

NOTE:

How to read the torque specifications .

  1. Intake Manifold

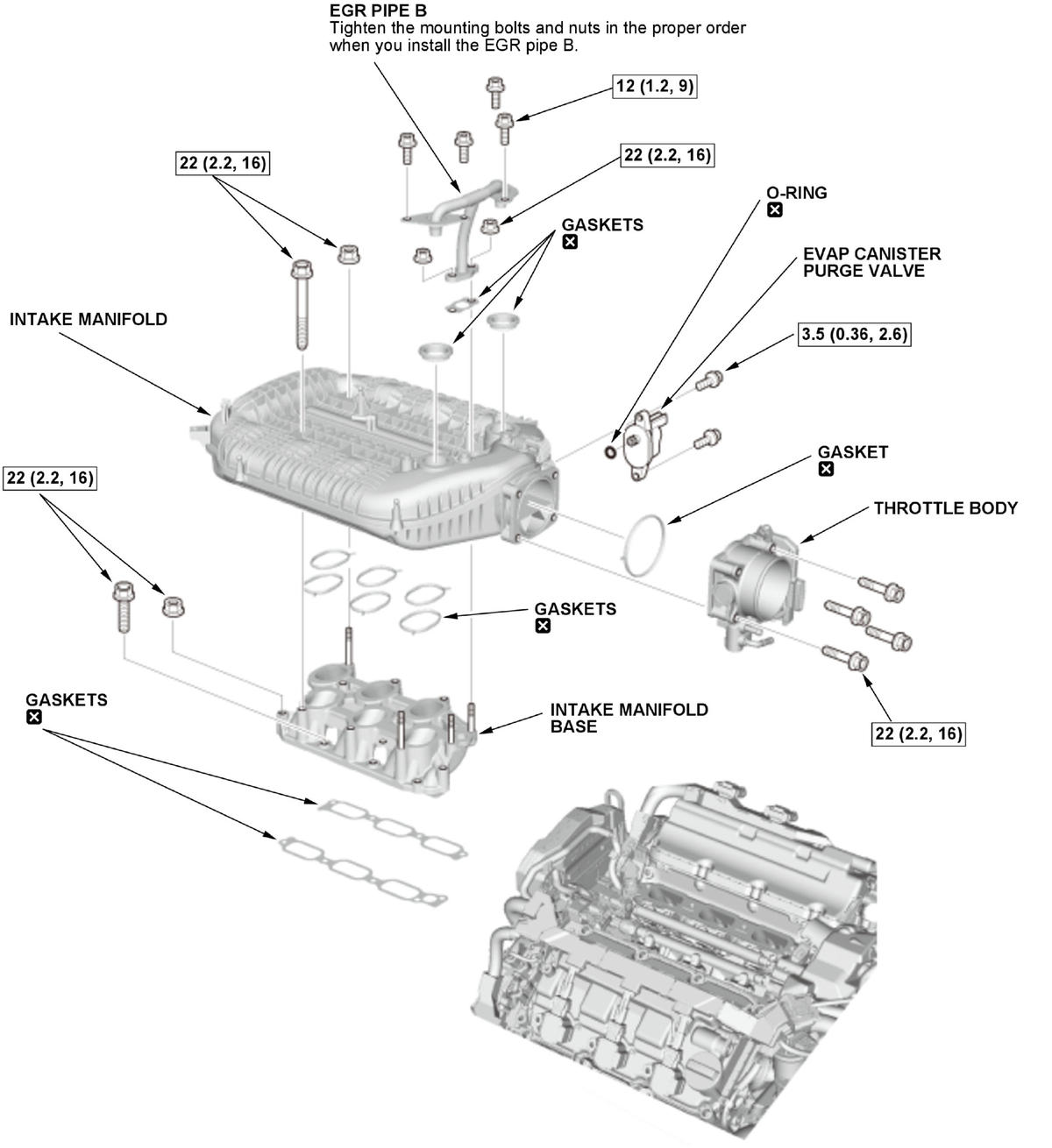

    Fig 1: Intake Manifold Replacement Components With Torque Specifications
    GHH455156Courtesy of HONDA, U.S.A., INC.
