Under-Dash Fuse/Relay Box Connector for Inputs and Outputs (2017 2018 2019)
| Connector Index |
|---|
| UNDER-DASH FUSE/RELAY BOX CONNECTOR D (44P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR E (36P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR F (18P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR G (4P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR H (13P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR M (12P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR N (20P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR P (24P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (10P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR R (16P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR S (18P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR T (10P) |

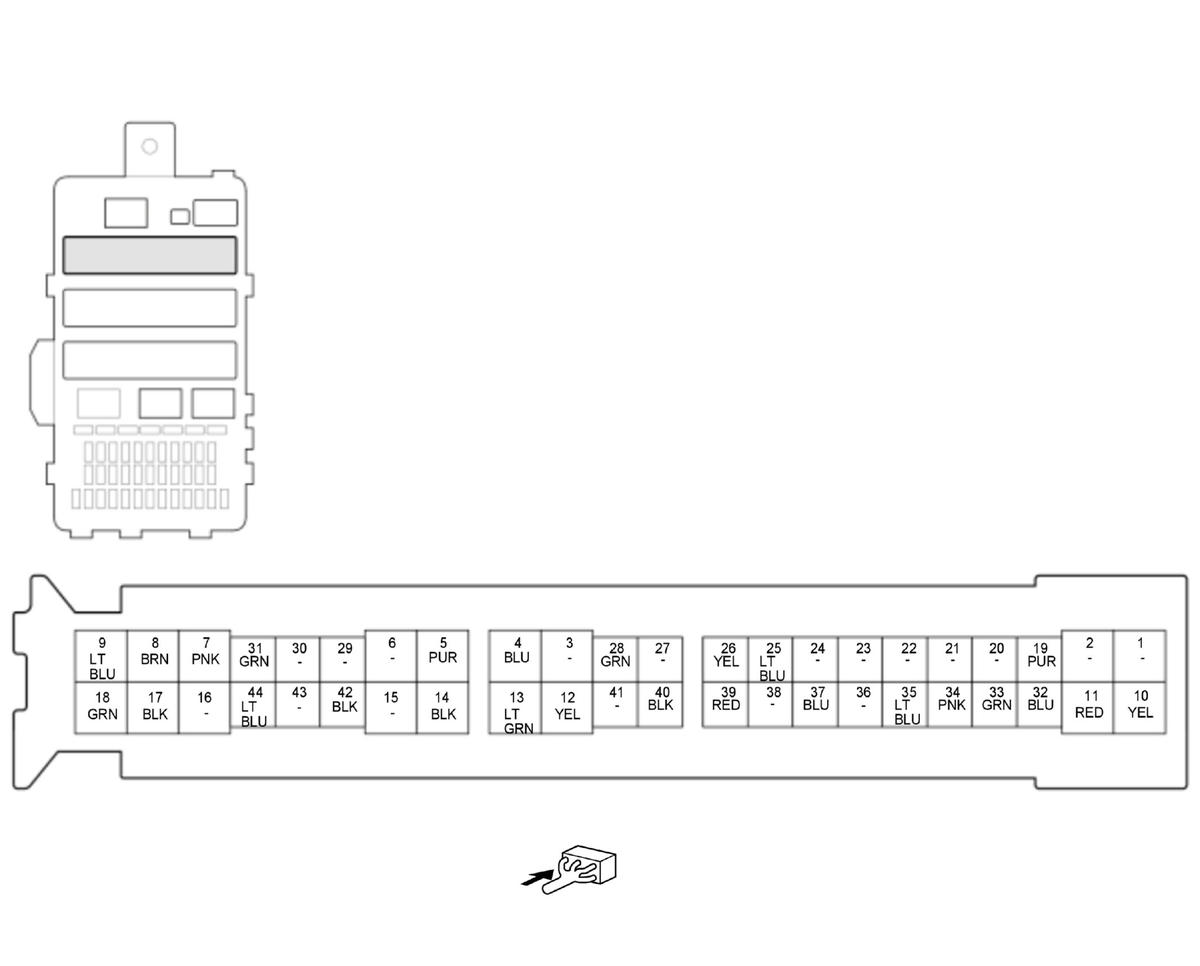

UNDER-DASH FUSE/RELAY BOX CONNECTOR D (44P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
*1: With back power window
*2: With power seat
*3: With front seat heater and without ventilated seat
*4: With power lumbar support
*5: With driving position memory or with rear seat heater
*6: With AC power outlet
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 4* 1 | +B P/W BACK | +B power supply | About battery voltage at all times |
| 5 | +B FUEL PUMP | +B power supply | About battery voltage at all times |
| 6 | --- | Not used | --- |
| 7* 2 | +B DR P/SEAT(REC) | +B power supply | About battery voltage at all times |
| 8 | BACK LT | Output back-up lights signal | With vehicle in ON mode and R position/mode: about battery voltage If none of above conditions are met: less than 0.2 V |
| 9* 2 | +B DR P/SEAT(SLI) | +B power supply | About battery voltage at all times |
| 10 | +B RR L P/W | Drives left rear power window motor | With vehicle in ON mode: about battery voltage |
| 11 | L SIDE DOOR LOCK | Drives left rear door lock actuator | When left rear door lock actuator in locking operation: about battery voltage |
| 12 | L SIDE DOOR UNLOCK | Drives left rear door lock actuator | When left rear door lock actuator in unlocking operation: about battery voltage |
| 13* 3 | +B H/SEAT | +B power supply | About battery voltage at all times |
| 14 | GND | MICU ground | Less than 0.2 V at all times |
| 15 | --- | Not used | --- |
| 16 | --- | Not used | --- |
| 17 | TRUNK ACT | Drives in-bed trunk lid release actuator | When in-bed trunk lid release actuator in open operation: about battery voltage |
| 18 | +B RR R P/W | Drives right rear power window motor | With vehicle in ON mode: about battery voltage |
| 19* 4 | +B DR POWER LUMBAR | +B power supply | About battery voltage at all times |
| 20 | --- | Not used | --- |
| 21 | --- | Not used | --- |
| 22 | --- | Not used | --- |
| 23 | --- | Not used | --- |
| 24 | --- | Not used | --- |
| 25 | RR DR SILCON UNLOCK | Detects left rear door lock knob switch (UNLOCK) signal | With left rear door lock knob switch UNLOCK: less than 0.2 V With left rear door lock knob switch LOCK: about battery voltage |
| 26 | RR AS SILCON UNLOCK | Detects right rear door lock knob switch (UNLOCK) signal | With right rear door lock knob switch UNLOCK: less than 0.2 V With right rear door lock knob switch LOCK: about battery voltage |
| 27 | --- | Not used | --- |
| 28 | RR DOOR SW | Detects right rear door switch signal | With right rear door switch ON: less than 0.2 V With right rear door switch OFF and MICU is wake-up mode: about battery voltage With right rear door switch OFF and MICU is sleep mode: pulse |
| 29 | --- | Not used | --- |
| 30 | --- | Not used | --- |
| 31* 5 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 32 | L TURN SIG | Output left rear turn signal light signal | With left turn signal light ON: about battery voltage |
*1: With back power window
*2: With power seat
*3: With front seat heater and without ventilated seat
*4: With power lumbar support
*5: With driving position memory or with rear seat heater
*6: With AC power outlet
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 33 | R TURN SIG | Output right rear turn signal light signal | With right turn signal light ON: about battery voltage |
| 34 | RL DOOR SW | Detects left rear door switch signal | With left rear door switch ON: less than 0.2 V With left rear door switch OFF and MICU is wake-up mode: about battery voltage With left rear door switch OFF and MICU is sleep mode: pulse |
| 35 | FL DOOR SW | Detects driver's door switch signal | With driver's door switch ON: less than 0.2 V With driver's door switch OFF and MICU is wake-up mode: about battery voltage With driver's door switch OFF and MICU is sleep mode: pulse |
| 36 | --- | Not used | --- |
| 37 | FR DOOR SW | Detects front passenger's door switch signal | With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and MICU is wake-up mode: about battery voltage With front passenger's door switch OFF and MICU is sleep mode: pulse |
| 38 | --- | Not used | --- |
| 39 | BED GATE SW+ | Detects tailgate switch signal | With tailgate switch ON: less than 0.2 V With tailgate switch OFF and MICU is wake-up mode: about battery volt With tailgate switch OFF and MICU is sleep mode: pulse |
| 40* 6 | NSW | Output NSW signal | With vehicle in ON mode, P position/mode, and engine speed at least 500 rpm: less than 0.2 V If none of above conditions are met: about 5 V |
| 41 | --- | Not used | --- |
| 42 | GND | MICU ground | Less than 0.2 V at all times |
| 43 | --- | Not used | --- |
| 44 | CARGO LT | Detects cargo area light signal | With cargo area light ON: about battery voltage |
*1: With back power window
*2: With power seat
*3: With front seat heater and without ventilated seat
*4: With power lumbar support
*5: With driving position memory or with rear seat heater
*6: With AC power outlet

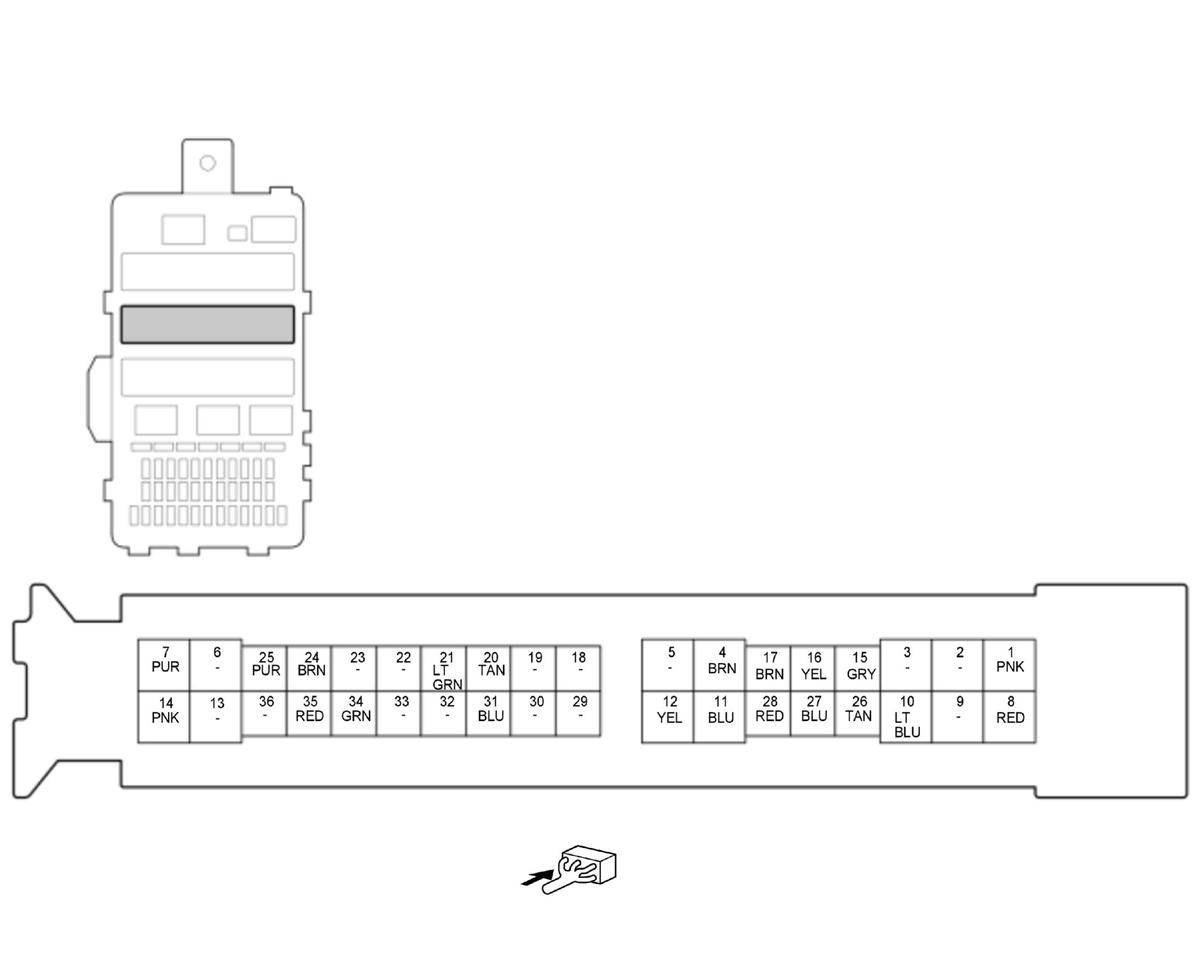

UNDER-DASH FUSE/RELAY BOX CONNECTOR E (36P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | FR WASHER RLY CL- | Drives windshield washer motor relay | With front washer switch ON: less than 0.2 V With front washer switch OFF: about battery voltage |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | +B HAZARD | +B power supply | About battery voltage at all times |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | STOP SW | Detects brake pedal position switch signal | With brake pedal pressed: about battery voltage With brake pedal released: less than 0.2 V |
| 8 | L H/L HI | Output left headlight (HI) signal | With headlight (HI) is ON: about battery voltage With headlight (HI) is OFF: less than 0.2 V |
| 9 | --- | Not used | --- |
| 10 | IG1 VB SOL | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 11 | +B ACC/IG2 MAIN | IG2 power source | With vehicle in ON mode: about battery voltage |
| 12 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 13 | --- | Not used | --- |
*1: With LED daytime running light
*2: With front fog light
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 14 | SMALL LT RLY OUT | Output small lights signal | With small lights are ON: about battery voltage With small lights are OFF: less than 0.2 V |
| 15 | WIPER HI/LO RLY CL- | Drives windshield wiper high/low relay | With vehicle in ON mode and windshield wiper LO speed: less than 0.2 V With vehicle in ON mode and windshield wiper HI speed: about battery voltage |
| 16 | WIPER INT RLY CL- | Drives windshield wiper intermittent relay | With vehicle in ON mode and windshield wiper operation: less than 0.2 V With vehicle in ON mode and windshield wiper stopping: about battery voltage |
| 17 | ATP-R | Detects transmission range switch (R) signal | With vehicle in ON mode and R position/mode: less than 0.2 V If none of above conditions are met: about battery voltage |
| 18 | --- | Not used | --- |
| 19 | --- | Not used | --- |
| 20* 1 | DRL SIG | Output daytime running lights signal | About 0 V-battery voltage (depending on daytime running light brightness) |
| 21* 2 | FR FOG LT RLY CL- | Drives front fog light relay | With front fog light switch ON: less than 0.2 V With front fog light switch OFF: about battery voltage |
| 22 | --- | Not used | --- |
| 23 | --- | Not used | --- |
| 24 | H/L LO RLY CL- | Drives headlight relay | With headlight (Lo) is ON: less than 0.2 V With headlight (Lo) is OFF: about battery voltage |
| 25 | SMALL LT RLY CL- | Drives small light relay | With small lights are ON: less than 0.2 V With small lights are OFF: about battery voltage |
| 26 | IG1 VSA | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 27 | ATP-P | Detects transmission range switch (P) signal | With out of P position/mode and MICU is wake-up mode: about battery voltage With P position/mode: less than 0.2 V With out of P position/mode and MICU is sleep mode: pulse |
| 28 | FR WIPER AS | Detects windshield wiper motor auto-stop position signal | With windshield wiper at out of auto-stop position and MICU is wake-up mode: pulse If none of above conditions are met: less than 0.2 V |
| 29 | --- | Not used | --- |
| 30 | --- | Not used | --- |
| 31 | HORN RLY CL- | Drives horn relay | With horn ON: less than 0.2 V With horn OFF: about battery voltage |
| 32 | --- | Not used | --- |
| 33 | --- | Not used | --- |
| 34 | IG1 WIPER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 35* 1 | IG2 DRL | IG2 power source | With vehicle in ON mode: about battery voltage |
| 36 | --- | Not used | --- |
*1: With LED daytime running light
*2: With front fog light

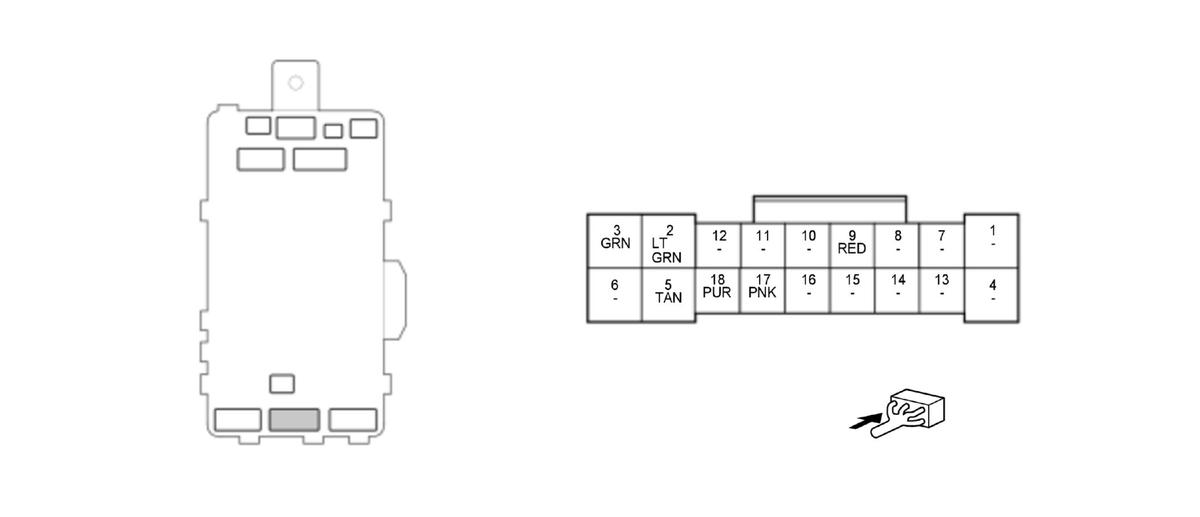

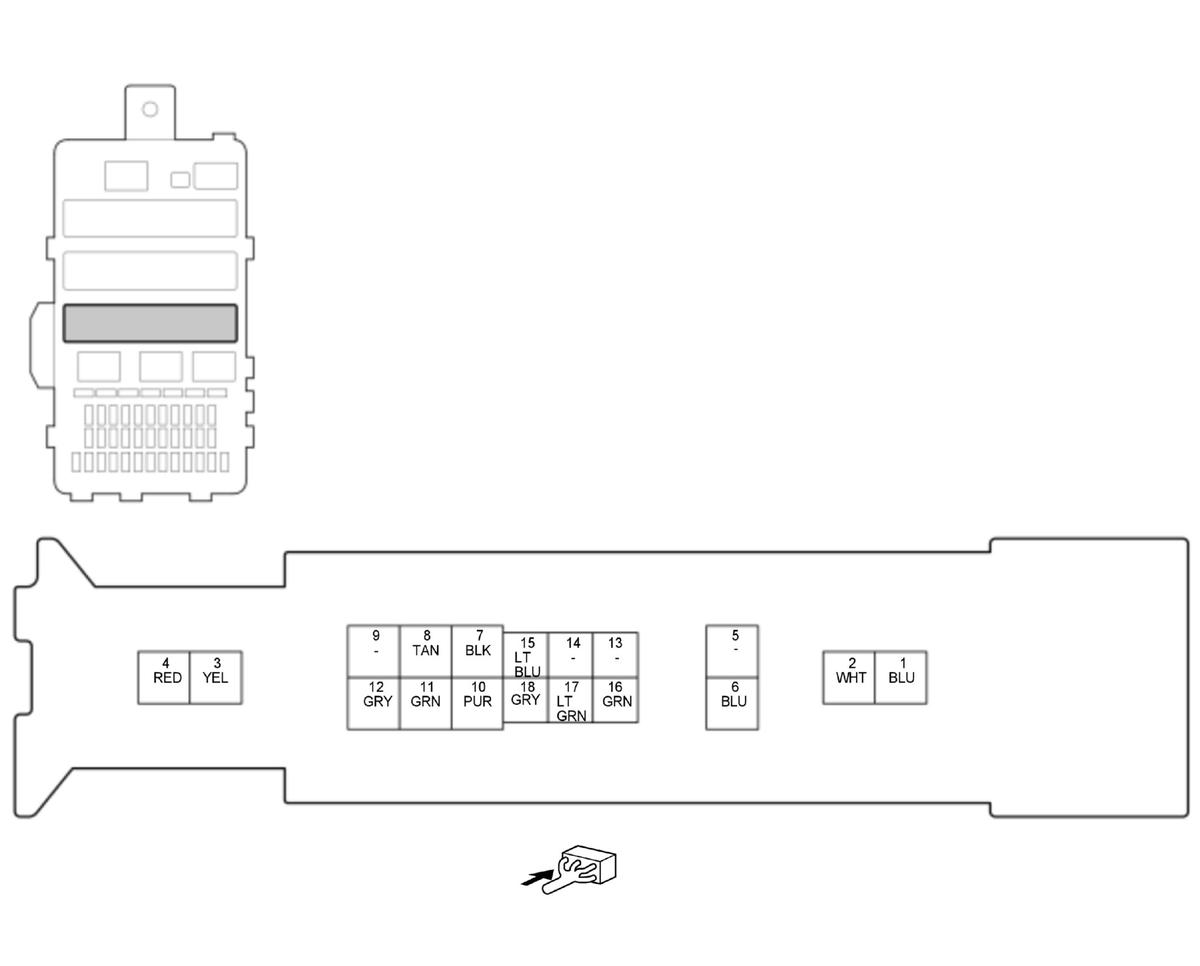

UNDER-DASH FUSE/RELAY BOX CONNECTOR F (18P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B IG MAIN2 | +B power supply | About battery voltage at all times |
| 2 | +B IG MAIN | +B power supply | About battery voltage at all times |
| 3 | +B F/BOX MAIN | +B power source | About battery voltage at all times |
| 4 | +B F/BOX MAIN2 | +B power source | About battery voltage at all times |
| 5 | --- | Not used | --- |
| 6 | +B H/L HI MAIN | +B power supply | About battery voltage at all times |
| 7 | GND | Under-dash fuse/relay box ground | Less than 0.2 V at all times |
| 8 | IGP | Detects PGM-FI main relay 1 signal | With vehicle in ON mode: about battery voltage |
| 9 | --- | Not used | --- |
| 10 | IG1 OPTION | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 11 | IG1 ACG | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 12 | R H/L HI | Output right headlight (HI) signal | With headlight (HI) is ON: about battery voltage With headlight (HI) is OFF: less than 0.2 V |
| 13 | --- | Not used | --- |
| 14 | --- | Not used | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 15 | RR DEF RLY CL- | Drives rear window defogger relay | With vehicle in ON mode and rear window defogger OFF: about battery voltage With vehicle in ON mode and rear window defogger ON: less than 0.2 V |
| 16 | HOOD SW | Detects hood latch switch signal | With hood latch switch ON : less than 0.2 V With hood latch switch OFF and MICU is wake-up mode: about battery voltage With hood latch switch OFF and MICU is sleep mode: pulse |
| 17 | S-NET | Communication line | --- |
| 18 | IMOFLR | Drives PGM-FI main relay 2 | About 0 V for 2 seconds after vehicle in ON mode, then battery voltage With vehicle in START model: about 0 V |

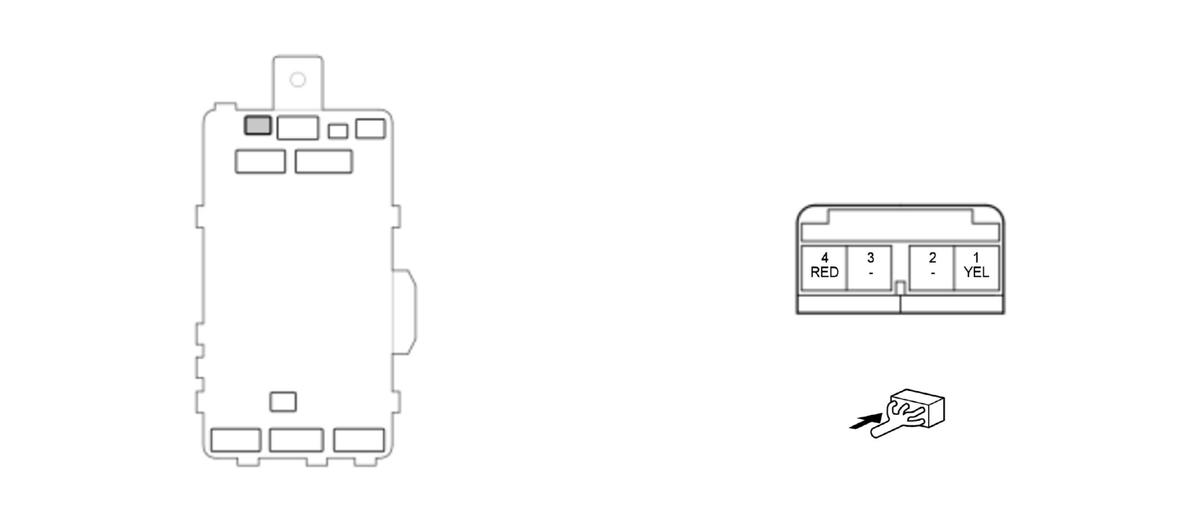

UNDER-DASH FUSE/RELAY BOX CONNECTOR G (4P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 SWS | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | IG1 SRS | IG1 power source | With vehicle in ON or START mode: about battery voltage |

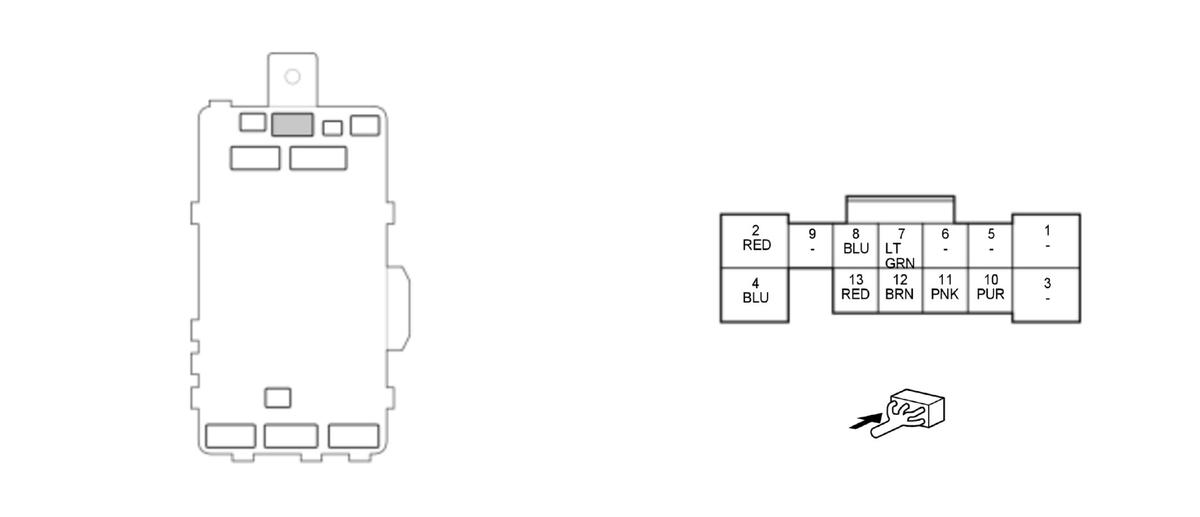

UNDER-DASH FUSE/RELAY BOX CONNECTOR H (13P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | BED GATE SW+ | Detects tailgate switch signal | With tailgate switch ON: less than 0.2 V With tailgate switch OFF and MICU is wake-up mode: about battery voltage With tailgate switch OFF and MICU is sleep mode: pulse |
| 3 | --- | Not used | --- |
| 4 | +B INTERIOR LT | +B power supply | About battery voltage at all times |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | ACC RLY CL | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 8 | IG1 RLY CL | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 9 | --- | Not used | --- |
| 10 | HORN SW | Detects horn switch signal | With horn switch ON: less than 0.2 V With horn switch OFF: about battery voltage With security alarm actuation: less than 0.2 V |
| 11 | INTR LT- | Outputs interior light signal | With interior light switch in DOOR position and interior lights ON: less than 0.2 V |
| 12 | IG2 RLY CL | IG2 power source | With vehicle in ON mode: about battery voltage |
| 13 | SMALL LT | Detects small light signal | With small lights are OFF: less than 0.2 V With small lights are ON: about battery voltage |

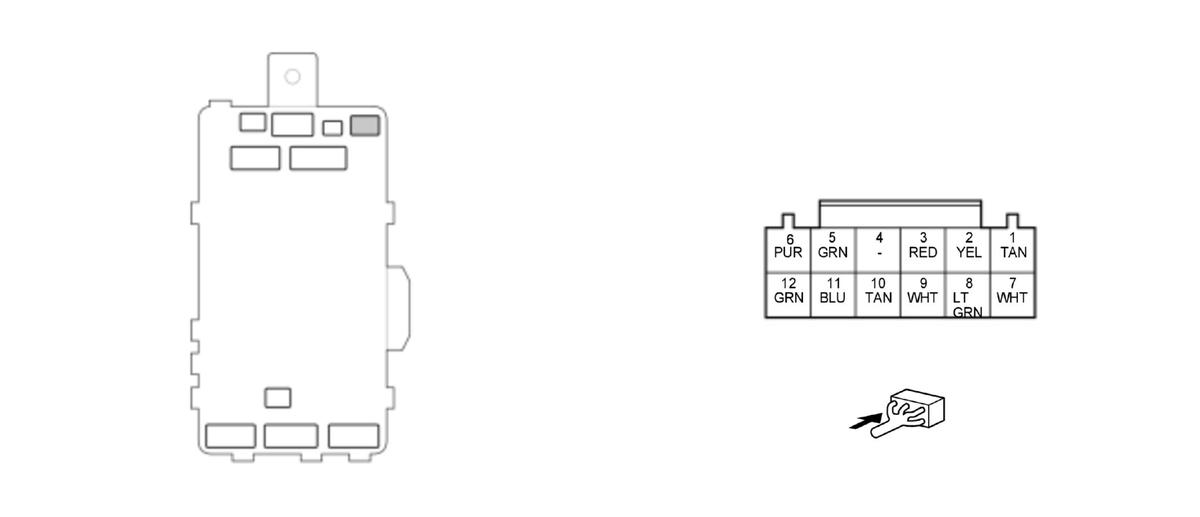

UNDER-DASH FUSE/RELAY BOX CONNECTOR M (12P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | B-CAN_L | Communication line | --- |
| 2 | IG1A FBK | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 3 | IG1B FBK | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 4 | --- | Not used | --- |
| 5 | R TURN SIG | Output right turn signal light signal | With right turn signal light ON: about battery voltage |
| 6 | SMART RLY GND | Ground for IG1A/IG1B relays and IG2/ACC relays circuits | Less than 0.2 V at all times |
| 7 | B-CAN_H | Communication line | --- |
| 8 | S-NET | Communication line | --- |
| 9 | +B BACKUP | +B power supply | About battery voltage at all times |
| 10 | IG2-MAIN | IG2 power source | With vehicle in ON mode: about battery voltage |
| 11 | L TURN SIG | Output left turn signal light signal | With left turn signal light ON: about battery voltage |
| 12 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |

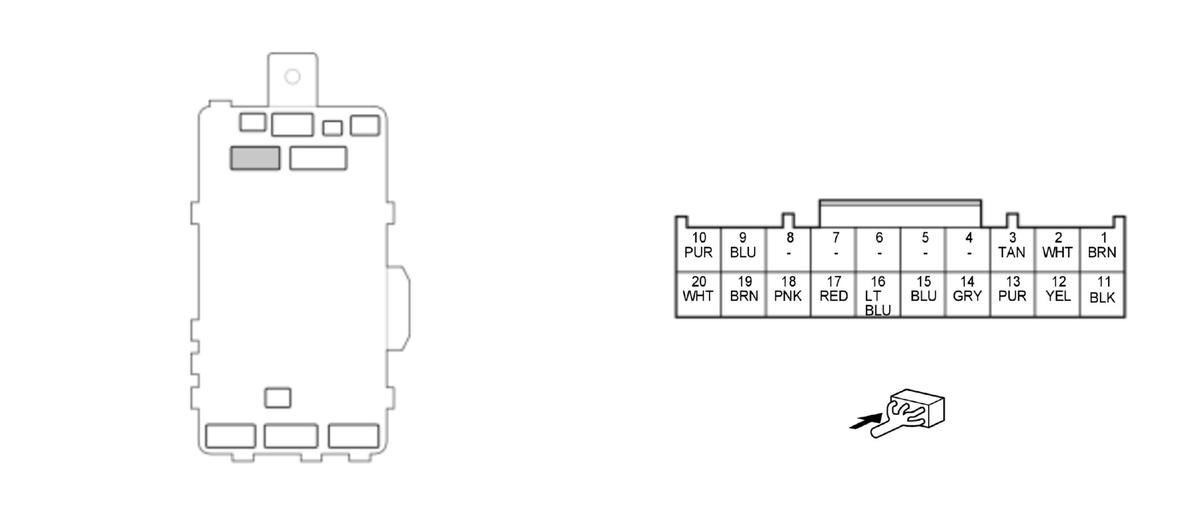

UNDER-DASH FUSE/RELAY BOX CONNECTOR N (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | COMBI SW GND(LT) | Ground for combination light switch | Less than 0.2 V at all times |
| 2 | FR WIPER HI SW | Detects windshield wiper switch Hi or Lo signal | With windshield wiper switch Hi or Lo: less than 0.2 V With windshield wiper switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| 3 | FR WIPER INT SW | Detects windshield wiper switch INT signal | With windshield wiper switch INT or Lo: less than 0.2 V With windshield wiper switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| 4 | --- | Not used | --- |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | --- | Not used | --- |
| 8 | --- | Not used | --- |
| 9 | FR WIPER INT VOL | Detects intermittent dwell timer controller signal | With vehicle in ON mode: about 0-5 V (depending on intermittent dwell timer controller) |
| 10 | FR FOG SW | Detects front fog light switch signal | With front fog light switch ON: less than 0.2 V With front fog light switch OFF and MICU is wake-up mode: about battery voltage With front fog light switch OFF and MICU is sleep mode: pulse |
| 11 | COMBI SW GND(WIP) | Ground for wiper/washer switch | Less than 0.2 V at all times |
| 12 | FR WASHER SW | Detects windshield washer switch signal | With windshield washer switch ON: less than 0.2 V With windshield washer switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 13 | FR WIPER MIST SW | Detects windshield wiper switch MIST signal | With windshield wiper switch MIST: less than 0.2 V With windshield wiper switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| 14 | R TURN SW | Detects right turn signal switch signal | With right turn signal switch ON: less than 0.2 V With right turn signal switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| 15 | L TURN SW | Detects left turn signal switch signal | With left turn signal switch ON: less than 0.2 V With left turn signal switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
| 16 | H/L HI SW | Detects combination light switch Hi signal | With combination light switch Hi: less than 0.2 V With combination light switch OFF and MICU is wake-up mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 17 | PASSING SW | Detects combination light switch PASSING signal | With combination light switch PASSING: less than 0.2 V With combination light switch OFF and MICU is wake-up mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 18 | H/L OFF SW | Detects combination light switch OFF signal | With combination light switch OFF: less than 0.2 V With combination light switch ON and MICU is wake-up mode: about battery voltage With combination light switch ON and MICU is sleep mode: pulse |
| 19 | H/L ON SW | Detects combination light switch ON signal | With combination light switch ON: less than 0.2 V With combination light switch OFF and MICU is wake-up mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |
| 20 | SMALL LT SW | Detects combination light switch SMALL signal | With combination light switch SMALL: less than 0.2 V With combination light switch OFF and MICU is wake-up mode: about battery voltage With combination light switch OFF and MICU is sleep mode: pulse |

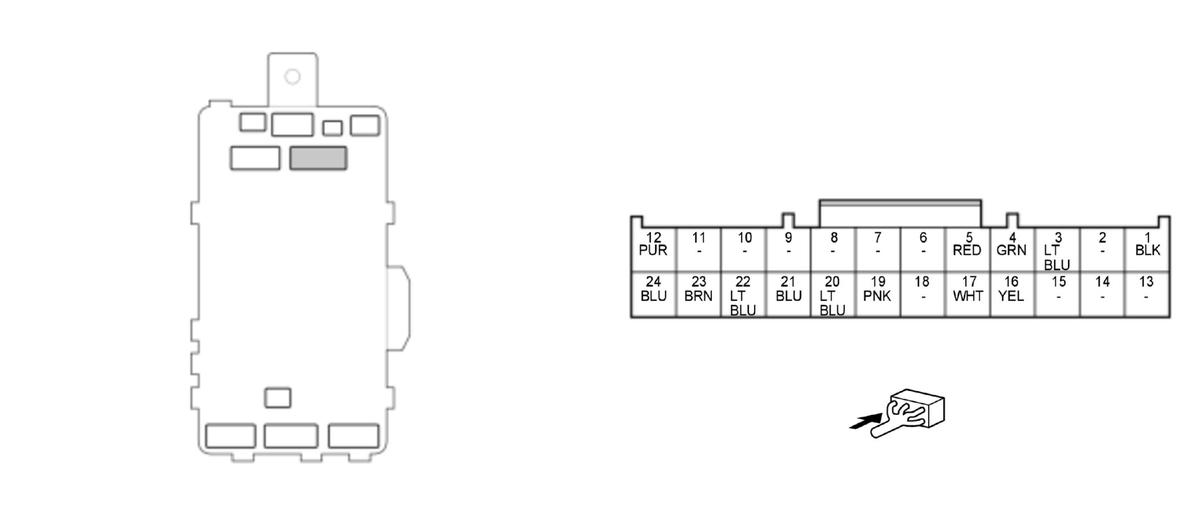

UNDER-DASH FUSE/RELAY BOX CONNECTOR P (24P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | MICU ground | Less than 0.2 V at all times |
| 2 | --- | Not used | --- |
| 3 | IG1 REM | IG1 power source | With engine remote start operation: about battery voltage |
| 4 | HAZARD SW | Detects hazard warning switch signal | With hazard warning switch ON: less than 0.2 V With hazard warning switch OFF: about battery voltage |
| 5 | TRUNK ACT RLY | Detects in-bed trunk lid main switch signal | With in-bed trunk lid main switch ON: less than 0.2 V With in-bed trunk lid main switch OFF: about battery voltage |
| 6 | --- | Not used | --- |
| 7 | --- | Not used | --- |
| 8 | --- | Not used | --- |
| 9 | --- | Not used | --- |
| 10 | --- | Not used | --- |
| 11 | --- | Not used | --- |
| 12* | R LED TELLTALE | Detects right LED control unit signal | --- |
| 13 | --- | Not used | --- |
| 14 | --- | Not used | --- |
| 15 | --- | Not used | --- |
| 16 | FUEL LID CL- | Drives fuel fill door opener solenoid relay | With fuel fill door opener switch ON: less than 0.2 V With fuel fill door opener switch OFF: about battery voltage |
| 17 | INTR LT CUT CL- | Drives interior lights cut relay | With interior lights are ON: less than 0.2 V With interior lights are OFF: about battery voltage |
| 18 | --- | Not used | --- |
| 19 | TRUNK SW | Detects in-bed trunk lid latch switch signal | With in-bed trunk lid latch switch ON: less than 0.2 V With in-bed trunk lid latch switch OFF: about battery voltage |
*: With LED headlight
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 20 | CARGO LT- | Detects cargo area light switch signal | With cargo area light switch ON: less than 0.2 V With cargo area light switch OFF: about battery voltage |
| 21 | TRUNK KEY-CYL SW | Detects in-bed trunk lid key cylinder switch signal | With in-bed trunk lid key cylinder switch ON: less than 0.2 V With in-bed trunk lid key cylinder switch OFF and MICU is wake-up mode : about battery voltage With MICU is sleep mode: pulse |
| 22 | KEY SW | Detects KEY SW signal | With vehicle in OFF (LOCK) mode and MICU in wake-up mode: about battery voltage With vehicle in OFF (LOCK) mode and MICU in sleep mode: pulse |
| 23 | SCTY(1) | Detects security signal | With security related unit installed: less than 0.2 V With security related unit not installed and MICU is wake-up mode: about battery voltage With MICU is sleep mode: pulse |
| 24* | L LED TELLTALE | Detects left LED control unit signal | --- |
*: With LED headlight

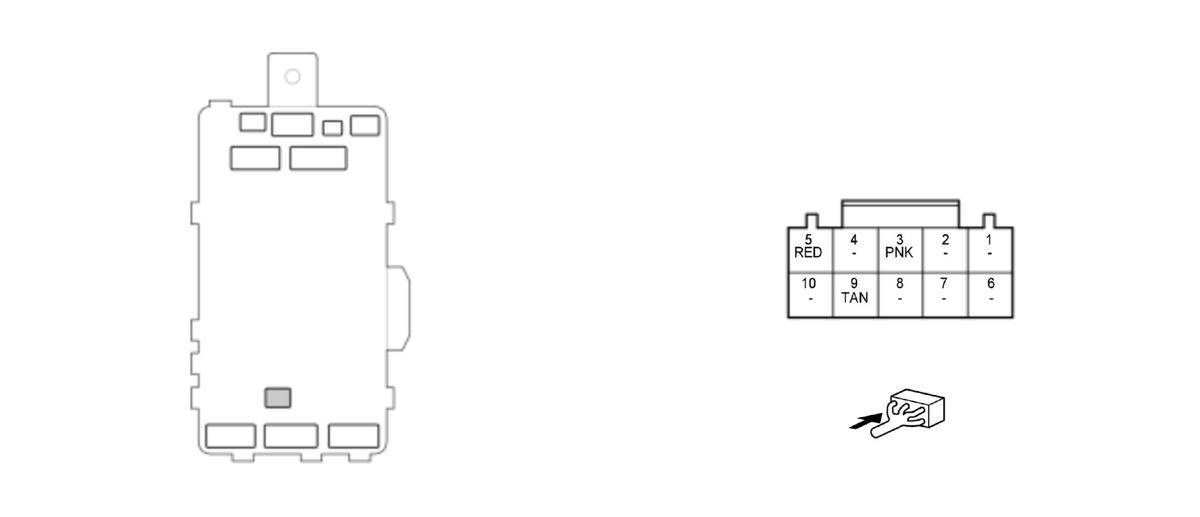

UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (10P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | --- | Not used | --- |
| 3* | FR DEF RLY CL- | Drives heated windshield wiper area relay | With heated windshield wiper area ON: less than 0.2 V With heated windshield wiper area OFF: about battery voltage |
| 4 | --- | Not used | --- |
| 5* | FR DEF SW | Detects heated windshield wiper area switch signal | With heated windshield wiper area switch ON: less than 0.2 V With heated windshield wiper area switch OFF and MICU is wake-up mode: about battery voltage With MICU is sleep mode: less than 0.2 V at all time |
*: With heated windshield wiper area
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 6 | --- | Not used | --- |
| 7 | --- | Not used | --- |
| 8 | --- | Not used | --- |
| 9 | EXT BUZ | Outputs keyless buzzer signal | --- |
| 10 | --- | Not used | --- |
*: With heated windshield wiper area
UNDER-DASH FUSE/RELAY BOX CONNECTOR R (16P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | +B FR AC SOCKET | +B power supply | About battery voltage at all times |
| 3 | --- | Not used | --- |
| 4 | --- | Not used | --- |
| 5* | +B H/SEAT | +B power supply | About battery voltage at all times |
| 6 | --- | Not used | --- |
| 7 | --- | Not used | --- |
| 8 | --- | Not used | --- |
| 9 | K-LINE | Communication line | --- |
| 10 | B-CAN_H | Communication line | --- |
| 11 | B-CAN_L | Communication line | --- |
| 12 | ACC | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 13 | IG1 VSA | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 14 | --- | Not used | --- |
| 15 | ILLUMI+ | Detects small light relay circuit signal | With interior lights are OFF: less than 0.2 V With interior lights are ON: about battery voltage |
| 16 | --- | Not used | --- |
*: With ventilated seat
UNDER-DASH FUSE/RELAY BOX CONNECTOR S (18P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | R SIDE DOOR LOCK | Drives right door lock actuator | When right door lock actuator in locking operation: about battery voltage |
| 3 | +B AS P/W | +B power supply | About battery voltage at all times |
| 4 | --- | Not used | --- |
| 5 | R SIDE DOOR UNLOCK | Drives right door lock actuator | When right door lock actuator in unlocking operation: about battery voltage |
| 6 | --- | Not used | --- |
| 7 | --- | Not used | --- |
| 8 | --- | Not used | --- |
| 9 | +B SMART | +B power supply | About battery voltage at all times |
| 10 | --- | Not used | --- |
| 11 | --- | Not used | --- |
| 12 | --- | Not used | --- |
| 13 | --- | Not used | --- |
| 14 | --- | Not used | --- |
| 15 | --- | Not used | --- |
| 16 | --- | Not used | --- |
| 17* | DR CRTSY LT | Detects driver's door courtesy light signal | With driver's door courtesy light ON: less than 0.2 V |
| 18* | AS CRTSY LT | Detects front passenger's door courtesy light signal | With front passenger's door courtesy light ON: less than 0.2 V |
*: With courtesy light
UNDER-DASH FUSE/RELAY BOX CONNECTOR T (10P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | --- | Not used | --- |
| 2 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| 3 | BACK LT | Detects reverse relay circuit signal | With vehicle in ON mode and R position/mode: about battery voltage If none of above conditions are met: less than 0.2 V |
| 4 | --- | Not used | --- |
| 5 | DR DOOR UNLOCK | Drives driver's door lock actuator | When driver's door lock actuator in unlocking operation: about battery voltage |
| 6 | DR DOOR LOCK | Drives driver's door lock actuator | When driver's door lock actuator in locking operation: about battery voltage |
| 7 | IG1 OPTION | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 8 | --- | Not used | --- |
| 9 | +B SUNROOF | +B power supply | About battery voltage at all times |
| 10 | +B DR P/W | +B power supply | About battery voltage at all times |
