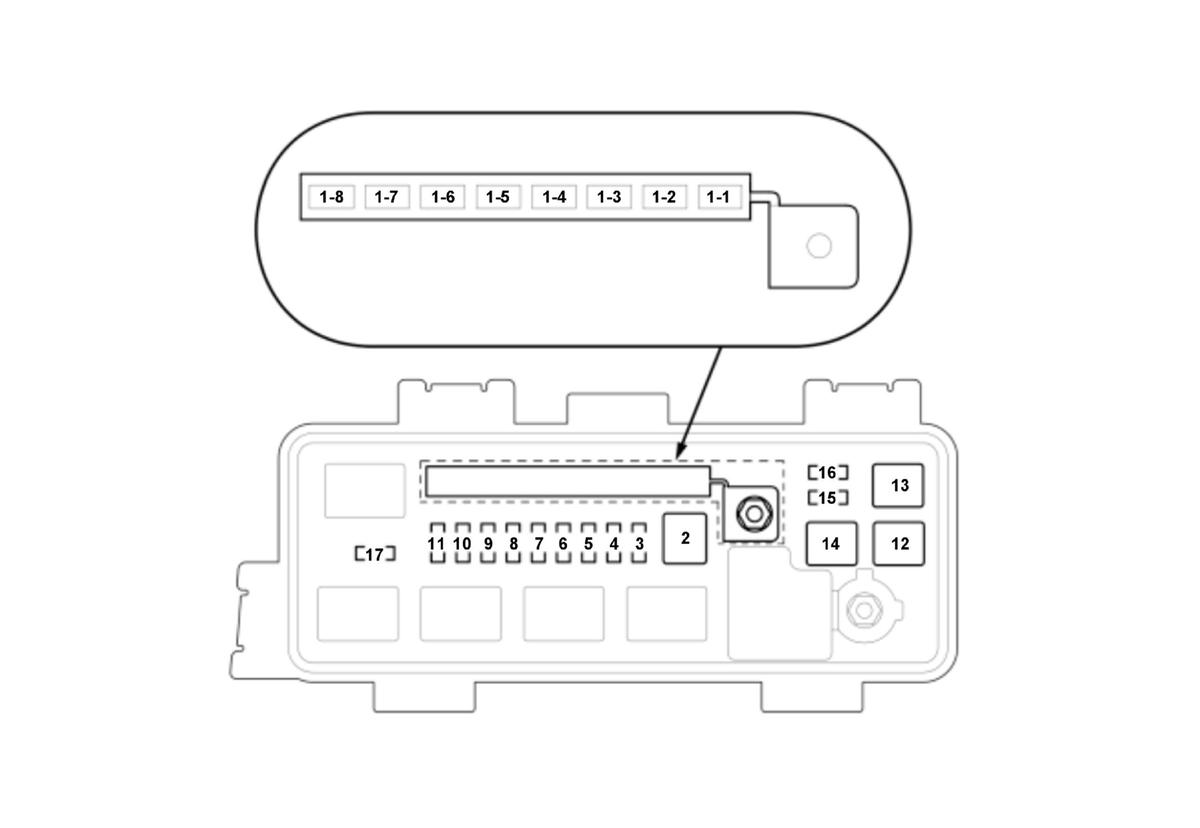

Auxiliary Under-Hood Fuse/Relay Box (B)
Auxiliary Under-Hood Fuse/Relay Box (B) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| B1-1 | 60 A | EPS control unit |
| B1-2 | 60 A | No. C14, No. C15 (with power seat), No. C16, No. C17 (with seat heater), No. C18, No. C36 (with power seat) fuses in the under-dash fuse/relay box |
| B1-3 | 60 A | No. C1, No. C2, No. C3, No. C4, and No. C5 fuses in the under-dash fuse/relay box, No. C11, No. C12 (with back power window), and No. C13 fuses in the under-dash fuse/relay box (via power window relay), Power window relay |
| B1-4 | 40 A | Not used |
| B1-5 | 30 A | No. C6, No. C7, No. C8, No. C9, No. C10, and No. C24 fuses in the under-dash fuse/relay box (via IG1A relay) |
| B1-6 | 30 A | No. C28, No. C29, No. C31, No. C32, and No. C39 fuses in the under-dash fuse/relay box (via IG1B relay) |
| B1-7 | 20 A | i-VTM control unit (AWD), i-VTM control unit (via i-VTM relay) (AWD), i-VTM relay (AWD), Rear differential pump motor (via i-VTM relay) (AWD) |
| B1-8 | 40 A | No. B17 fuse in the auxiliary under-hood fuse/relay box (via starter cut relay 1), Starter (via starter cut relay 1 and starter cut relay 2) |
| B2 | --- | Not used |
| B3 | 20 A | Trailer electric brake connector |
| B4 | 7.5 A | 12 volt battery sensor |
| B5 | 20 A | No. C26, No. C37, and No. C38 fuses in the under-dash fuse/relay box |
| B6 | 7.5 A | Trailer lighting control unit |
| B7 | 7.5 A | Trailer lighting control unit |
| B8 | 20 A | Console accessory power socket (via console accessory power socket relay) |
| B9 | 20 A | Trailer lighting connector (via trailer small light relay) |
| B10 | 10 A | No. C22 and No. C40 fuse in the under-dash fuse/relay box (via ACC relay circuit (built into the under-dash fuse/relay box))No. C21 and No. C23 fuses in the under-dash fuse/relay box (via IG2 relay circuit (built into the under dash fuse/relay box)), Heated windshield wiper area relay (via IG2 relay circuit (built into the under dash fuse/relay box)) (with heated windshield wiper area), Keyless access/TPMS control unit (via IG2 relay circuit (built into the under dash fuse/relay box)) |
| B11 | 20 A | Trailer lighting connector (via trailer charge relay) |
| B12 | --- | Not used |
| B13 | --- | Not used |
| B14 | --- | Not used |
| B15 | 15 A | Heated windshield wiper area (with heated windshield wiper area), Heated windshield wiper area switch indicator (with heated windshield wiper area) |
| B16 | 20 A | Rear seat heater control unit (via rear seat heater relay) (with rear seat heater) |
| B17 | 7.5 A | PCM |
