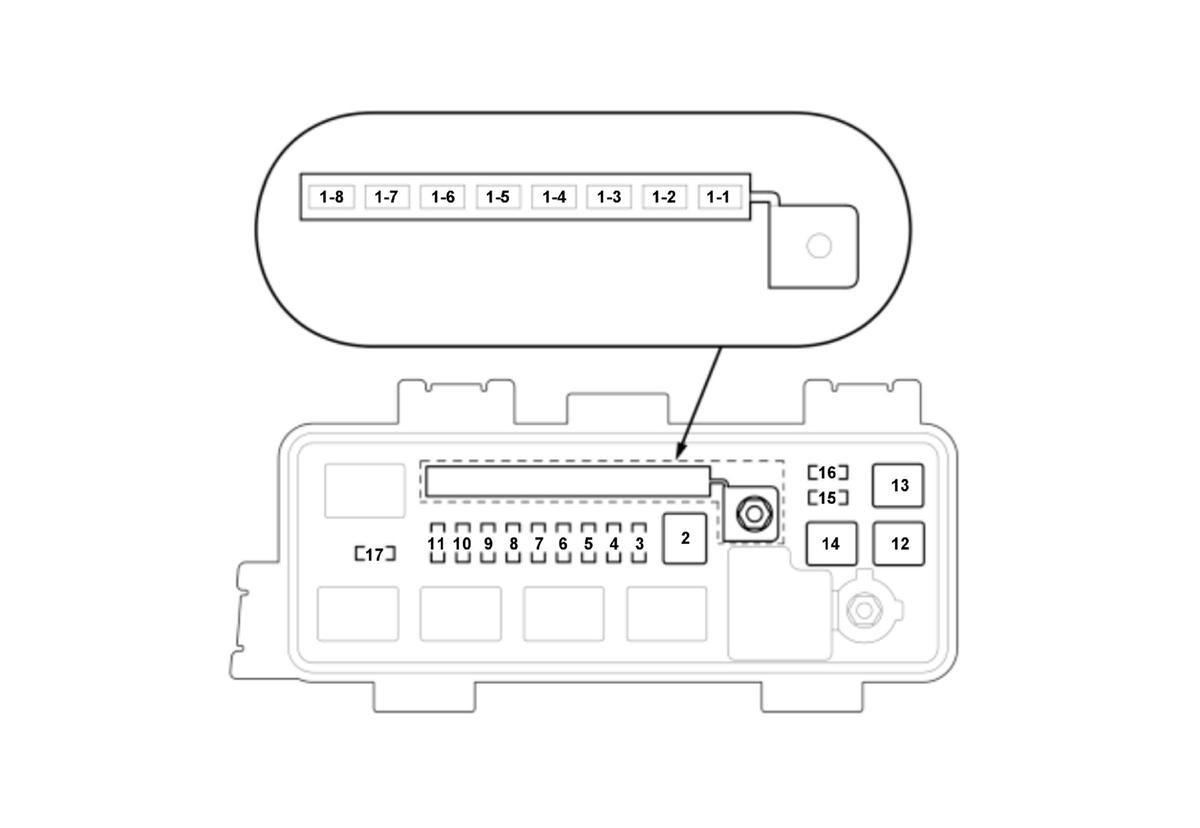

Auxiliary Under-Hood Fuse/Relay Box
Auxiliary Under-Hood Fuse/Relay Box
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B1-1 | 60 A | EPS control unit | |
| B1-2 | 60 A | No. C14, No. C15* 1, No. C16, No. C17* 2, No. C18, No. C36* 1 fuses in the under-dash fuse/relay box | *1: With power seat *2: With seat heater |
| B1-3 | 60 A | No. C1, No. C2, No. C3, No. C4, and No. C5 fuses in the under-dash fuse/relay box, No. C11, No. C12*, and No. C13 fuses in the under-dash fuse/relay box (via power window relay), Power window relay |
*: With back power window |
| B1-4 | 40 A | Not used | |
| B1-5 | 30 A | No. C6, No. C7, No. C8, No. C9, No. C10, and No. C24 fuses in the under-dash fuse/relay box (via IG1A relay) | |
| B1-6 | 30 A | No. C28, No. C29, No. C31, No. C32, and No. C39 fuses in the under-dash fuse/relay box (via IG1B relay) | |
| B1-7* | 20 A | i-VTM control unit, i-VTM control unit (via i-VTM relay), i-VTM relay, Rear differential pump motor (via i-VTM relay) |
*: AWD |
| B1-8 | 40 A | Not used | |
| B2 | --- | Not used | |
| B3 | 20 A | Trailer electric brake connector | |
| B4* | 7.5 A | 12 volt battery sensor | *: With LED daytime running light |
| B5 | 20 A | No. C26, No. C37, and No. C38 fuses in the under-dash fuse/relay box | |
| B6 | 7.5 A | Trailer lighting control unit | |
| B7 | 7.5 A | Trailer lighting control unit | |
| B8 | 20 A | Console accessory power socket (via console accessory power socket relay) | |
| B9 | 30 A | Trailer lighting connector (via trailer small light relay) | |
| B10 | 10 A | No. C21 and No. C23 fuses in the under-dash fuse/relay box (via IG2 relay circuit (built into the under dash fuse/relay box)), No. C22 and No. C40 fuse in the under-dash fuse/relay box (via ACC relay circuit (built into the under-dash fuse/relay box)), Heated windshield wiper area relay (via IG2 relay circuit (built into the under dash fuse/relay box))*, Keyless access/TPMS control unit (via IG2 relay circuit (built into the under dash fuse/relay box)) |
*: With heated windshield wiper area |
| B11 | 20 A | Trailer lighting connector (via trailer charge relay) | |
| B12 | 30 A | No. B17 fuse in the auxiliary under-hood fuse/relay box (via starter cut relay 1), Starter (via starter cut relay 1 and starter cut relay 2) | |
| B13 | 30 A | DC-DC converter | |
| B14 | 30 A | DC-DC converter | |
| B15* | 15 A | Heated windshield wiper area, Heated windshield wiper area switch indicator |
*: With heated windshield wiper area |
| B16 | 20 A* 1 | Rear seat heater control unit (via rear seat heater relay) | *1: With rear seat heater *2: Without LED daytime running light |
| 7.5 A* 2 | 12 volt battery sensor | ||
| B17 | 7.5 A | PCM |
