Steering Column/EPS Control Unit Removal and Installation: Removal
NOTE:
- SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.
- Do not release the lock lever until the steering column/EPS control unit is installed. If the lock lever is released before installation, adjust the steering column after installation.
- Steering Column Tilt and Telescopic Position - Set
1. Set the steering column to the center tilt position, and to the center telescopic position. - 12 Volt Battery Terminal - Disconnect
- Driver's Airbag - Remove
- Steering Wheel - Remove
- Driver's Dashboard Lower Cover - Remove
- Column Cover - Remove
- Front Door Sill Trim - Remove
- Kick Panel - Remove
- Center Console Side Cover - Remove (Driver's Side)
- Steering Joint - Disconnect
- Combination Switch/Wire Harness - Remove
1. Disconnect the connectors (A).

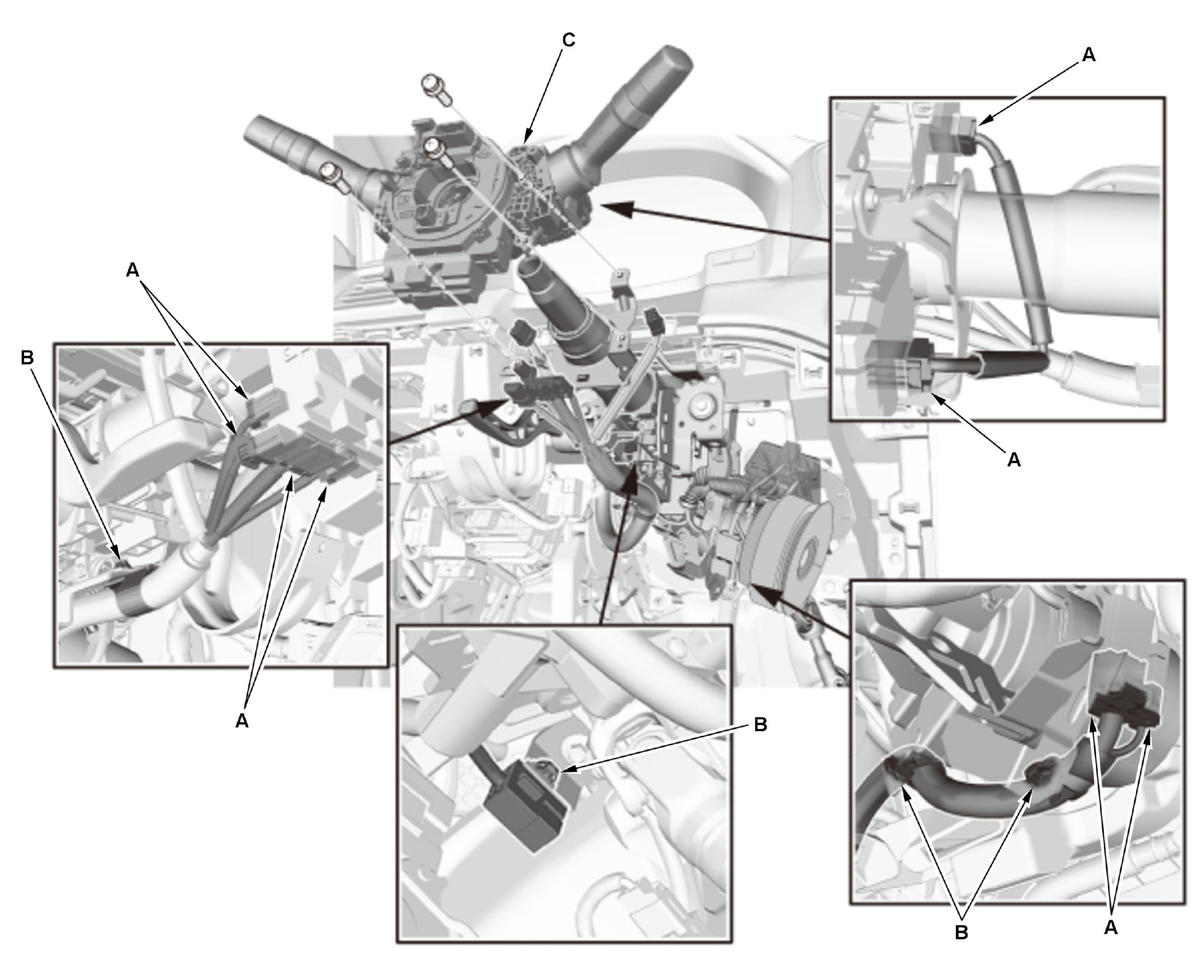

With steering lock

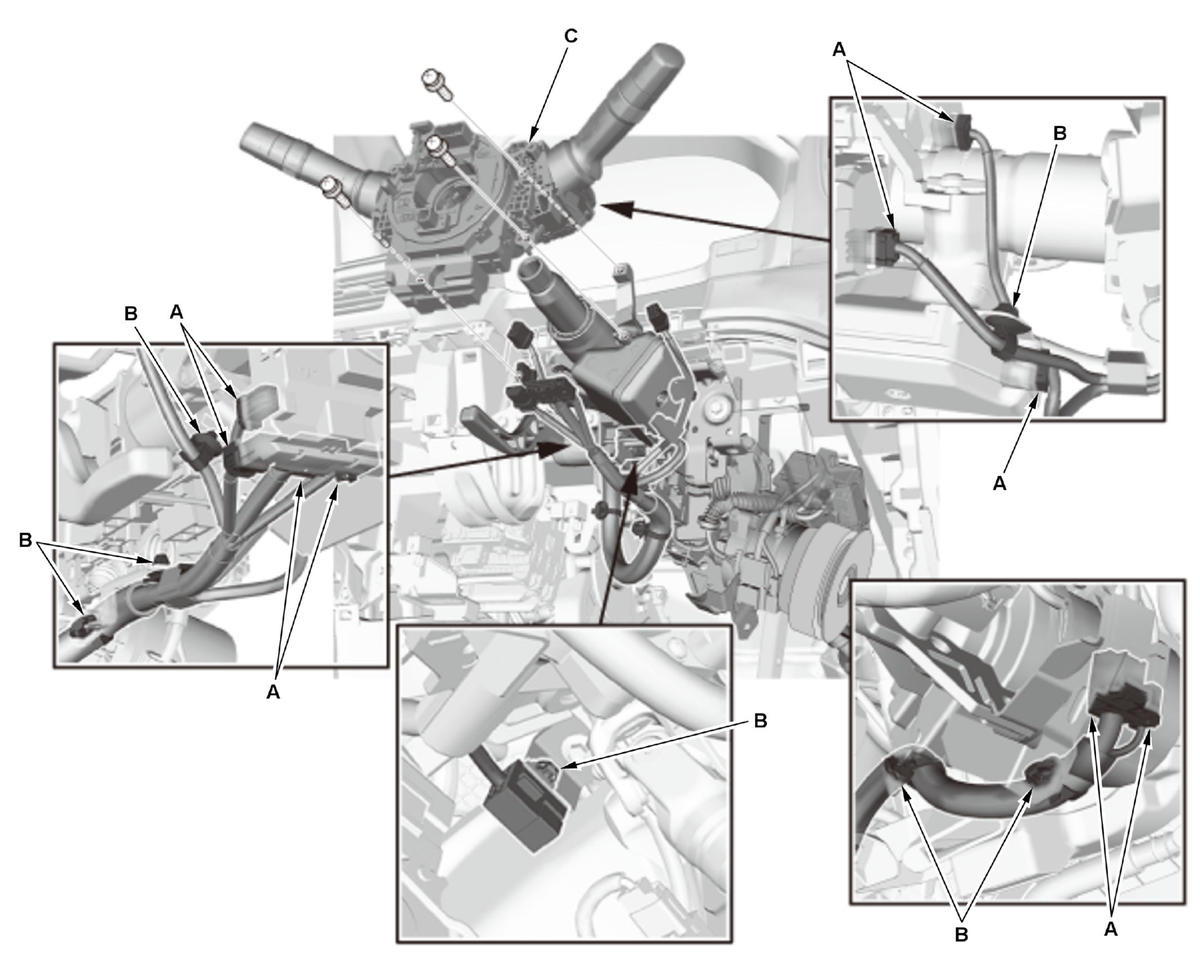

Without steering lock
2. Remove the harness clips (B).
3. Remove the combination switch (C).

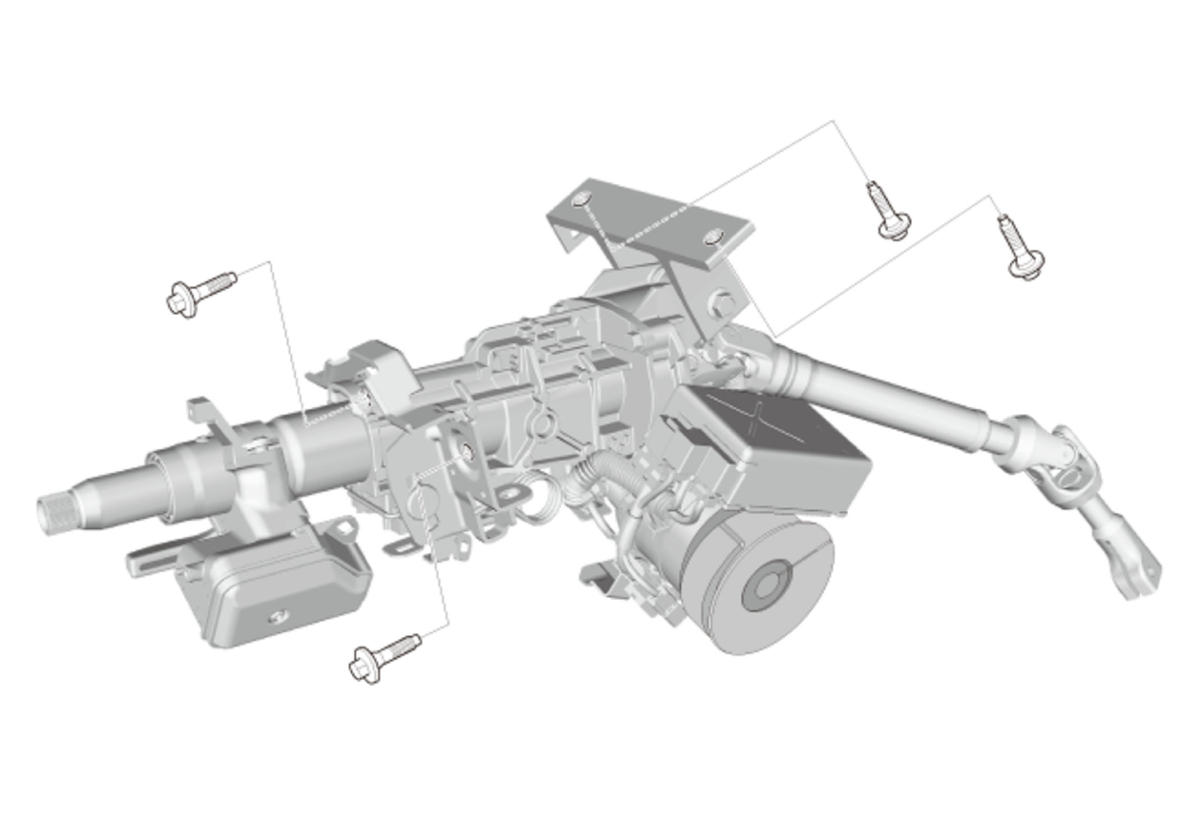

- Steering Column/EPS Control Unit - Remove
