Engine Oil Pan Removal and Installation: Removal

NOTE:

Where icon is shown, further information shown below.

GHH455060Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions

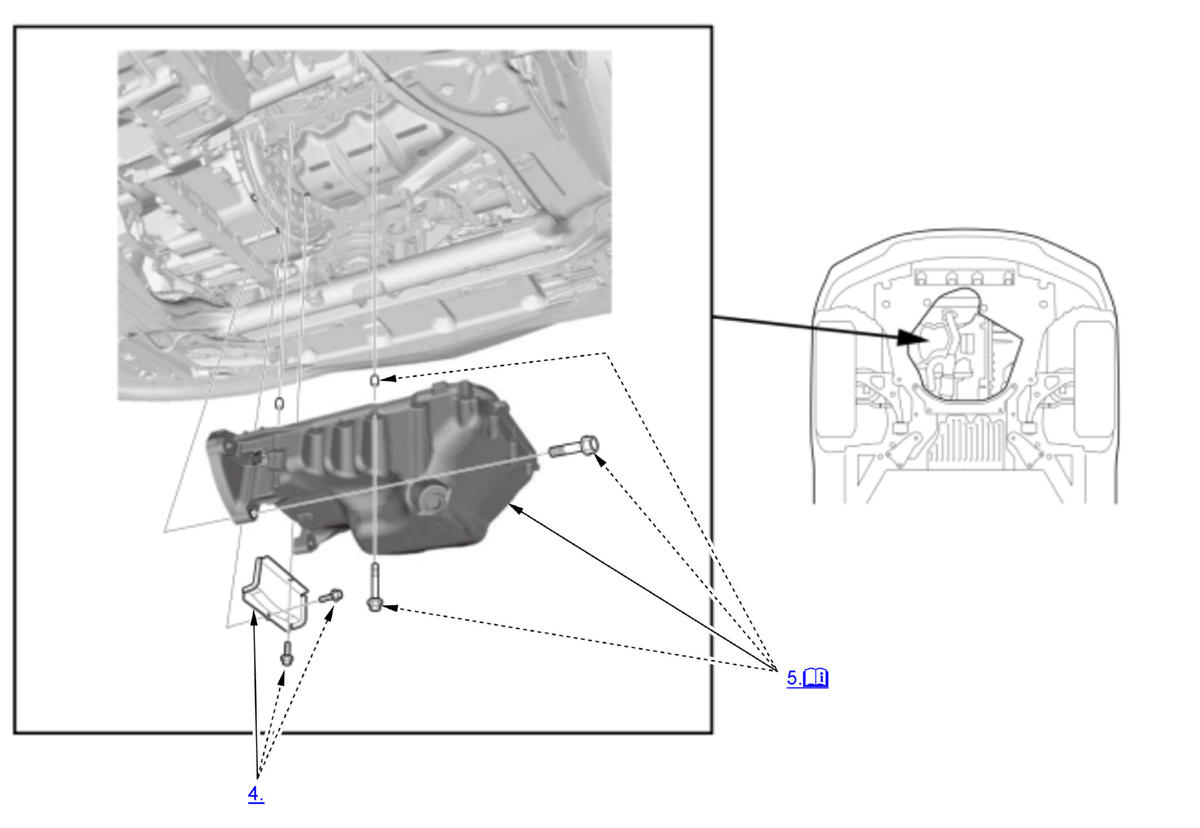

  1. Engine Oil - Drain
  2. Under-Floor TWC - Remove
    NOTE:

    Do not remove the front secondary HO2S.

  3. Connector (CKP Sensor) - Disconnect
  4. Torque Converter Cover - Remove
  5. Oil Pan - Remove
    GHH455061Courtesy of HONDA, U.S.A., INC.

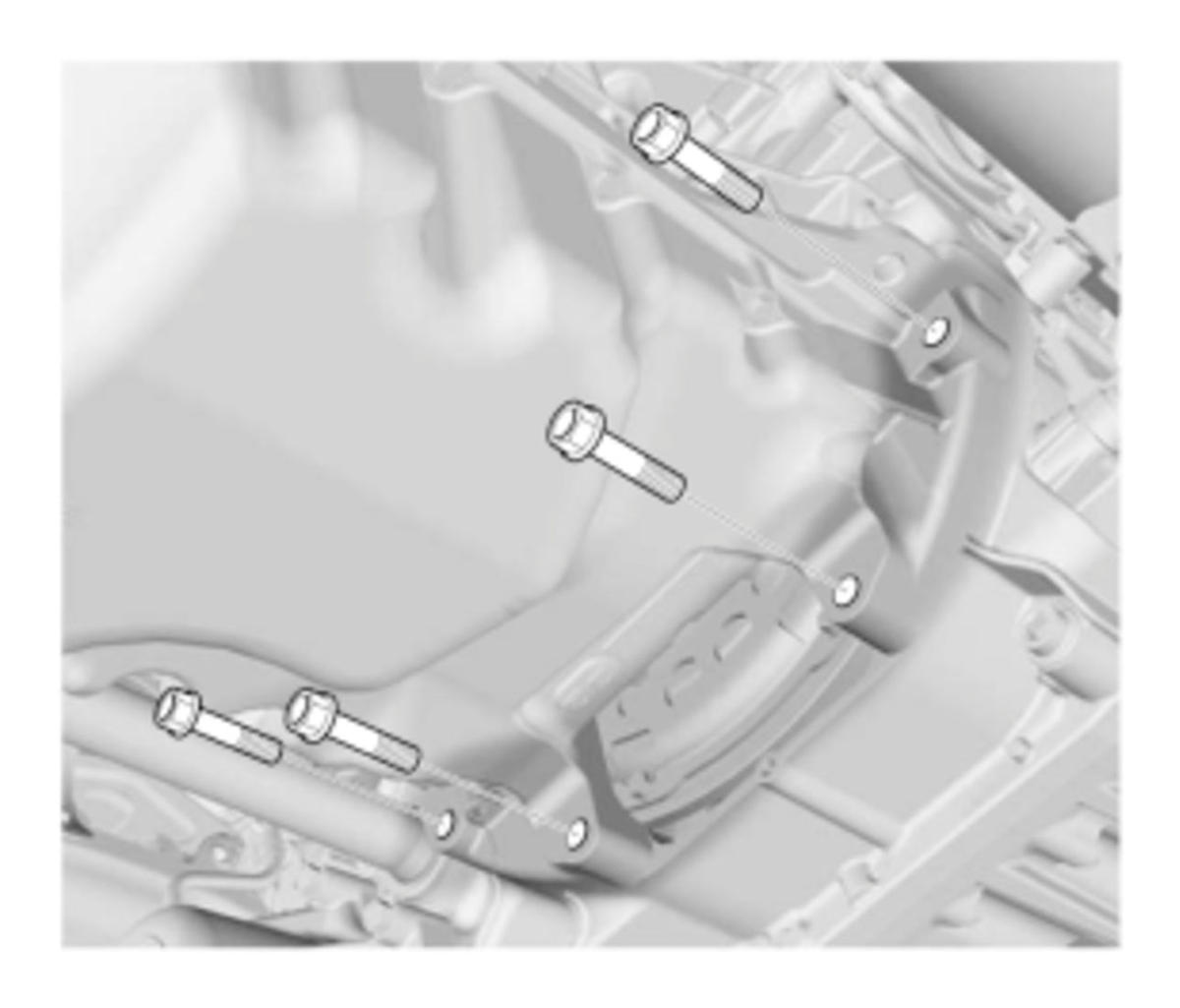

    		 1. Remove the transmission assembly mounting bolts.
    2. Remove the bolts securing the oil pan.

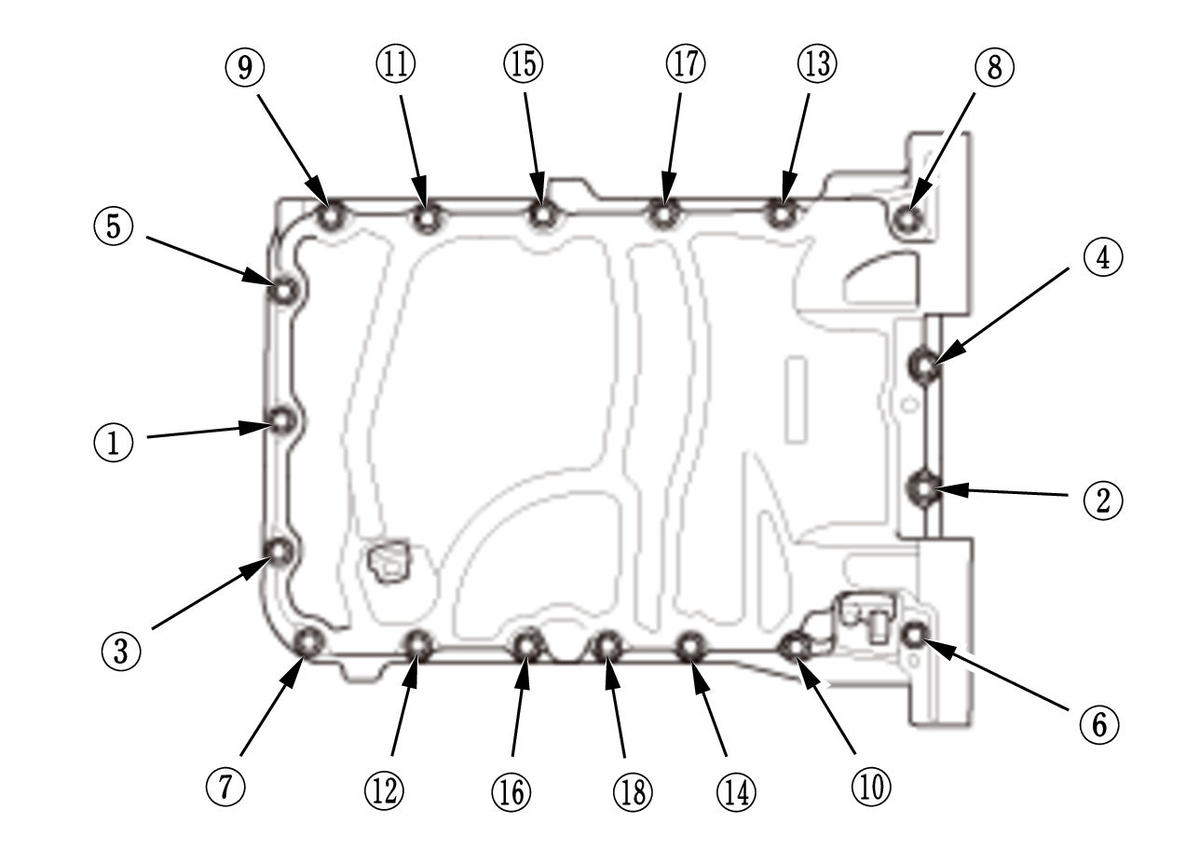

    Fig 1: Removing Oil Pan Bolts In Sequence
    GHH455062Courtesy of HONDA, U.S.A., INC.
    GHH455063Courtesy of HONDA, U.S.A., INC.

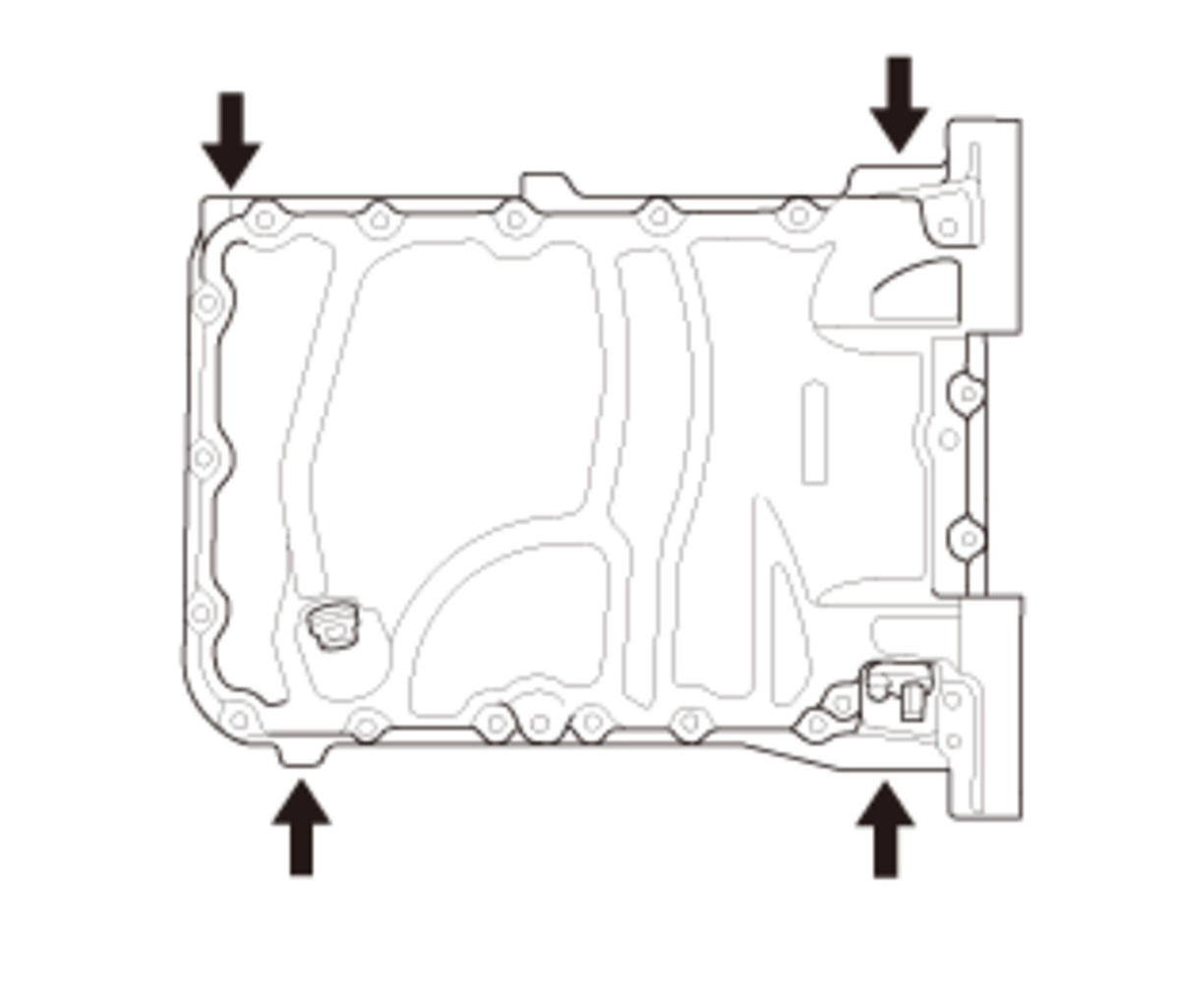

    		 3. Using a flat blade screwdriver, separate the oil pan from the engine block in the places shown.
    GHH455064Courtesy of HONDA, U.S.A., INC.

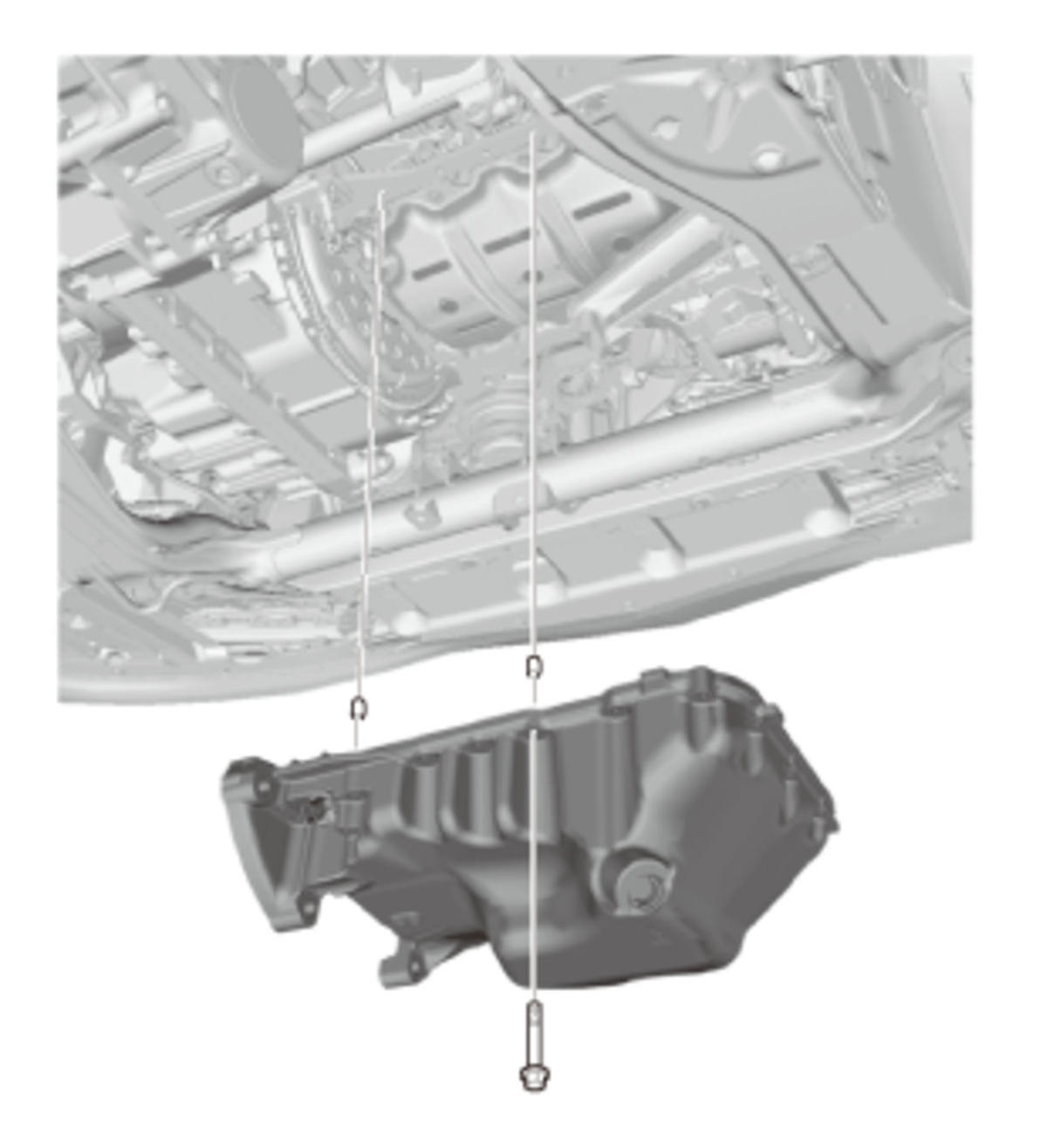

    		 4. Remove the oil pan.
