Keyless/Power Door Locks/Security System Description

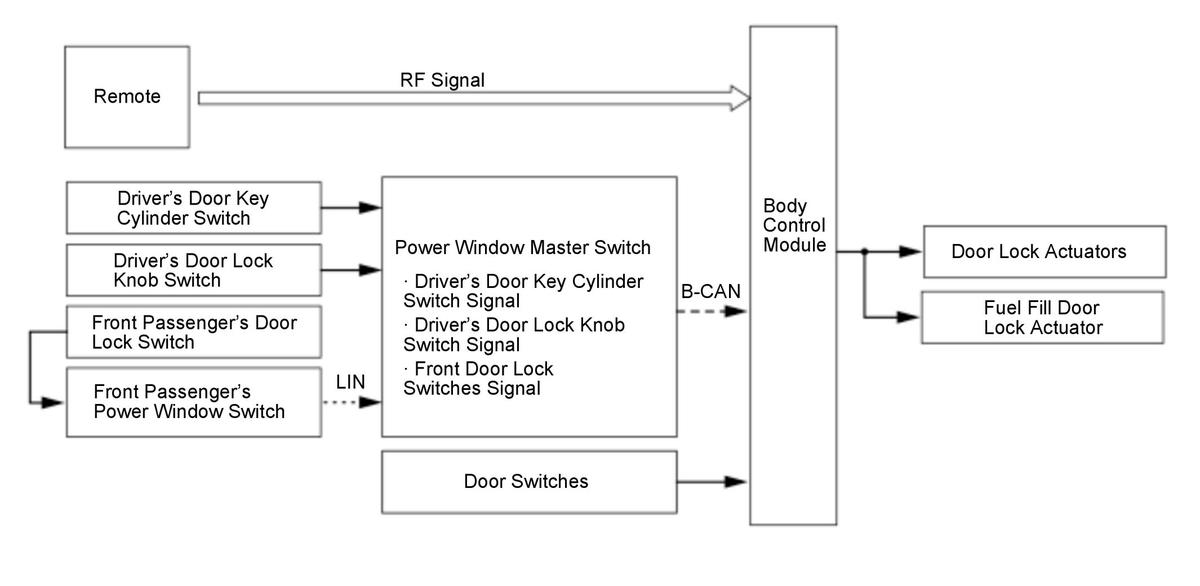

Door Lock Control

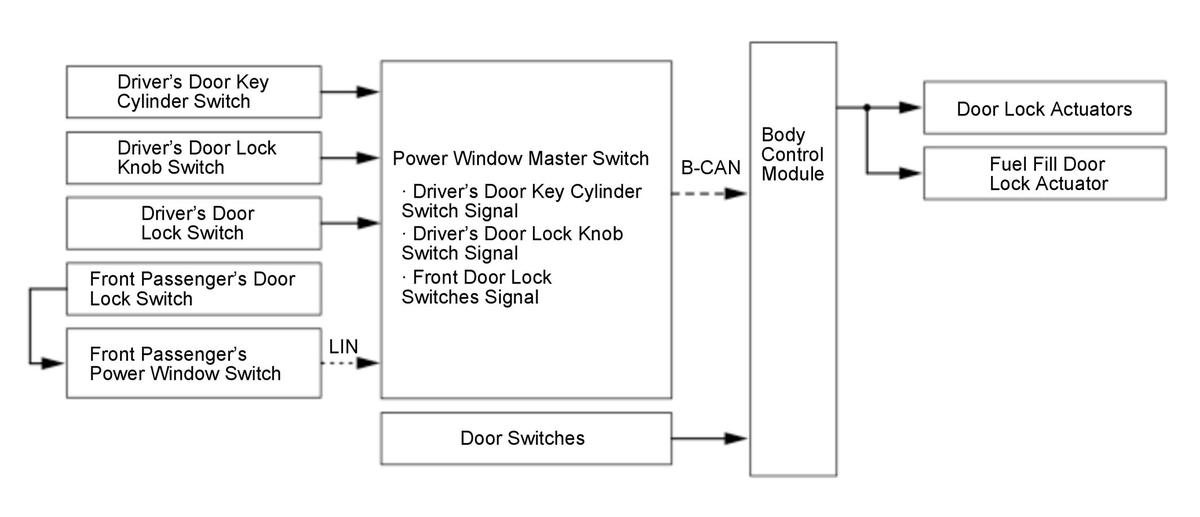

The door lock control function allows the body control module to detect the status of various switch signals and control each actuator in order to lock and unlock the doors.
The system has three circuits between the door lock actuators and the body control module to improve safety of the system. One is for the driver's door lock actuator, and others are for the left rear door lock actuator and passenger's side door lock actuators. The door lock actuator circuit has two fuses. When one fuse is blown, another fuse in the same circuit must be checked.

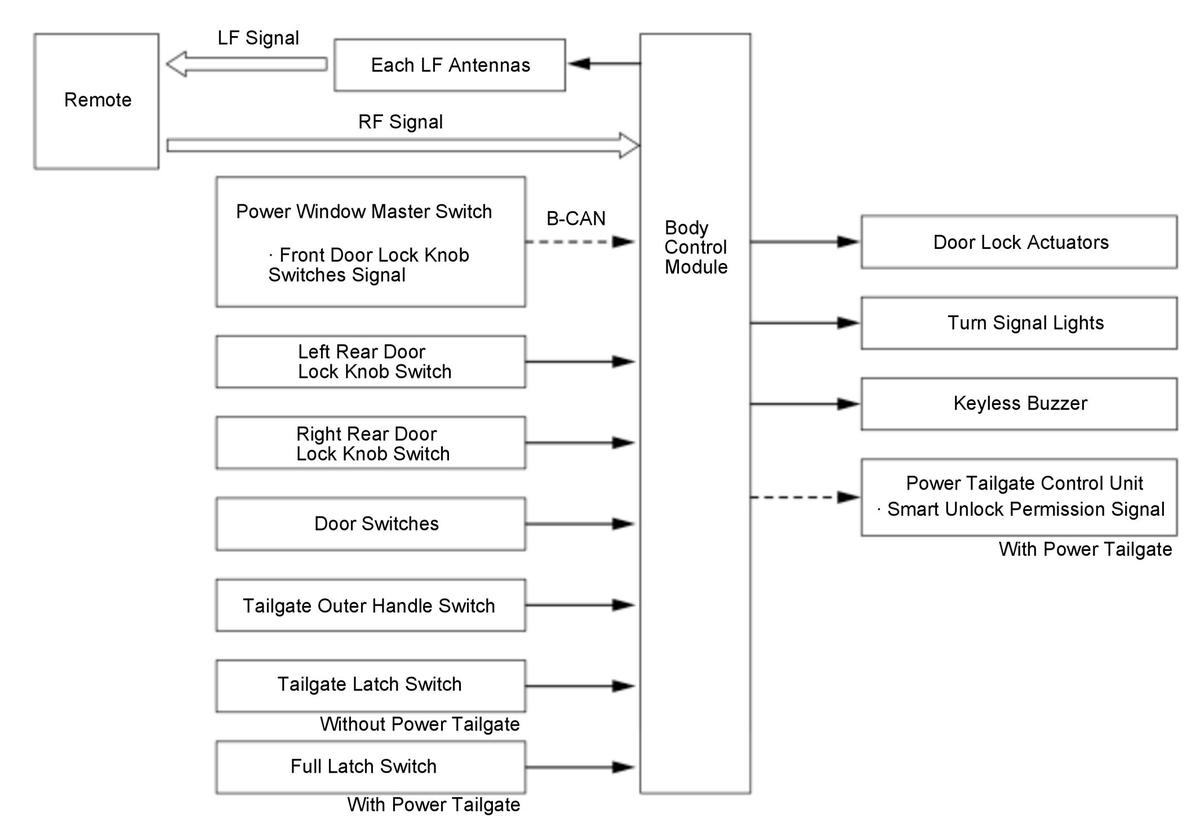

Tailgate Release Control (Without Power Tailgate)

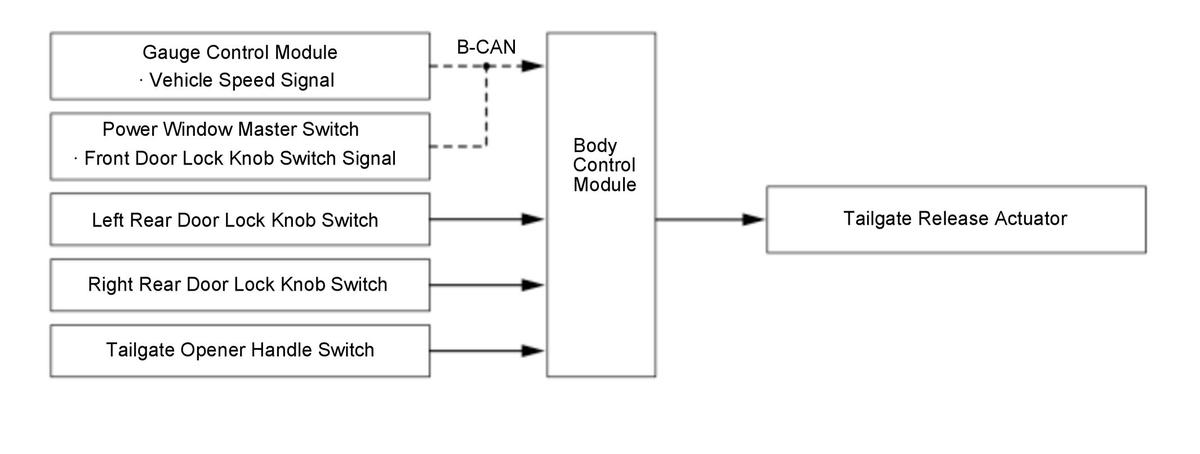

In the tailgate release function, the body control module activates the tailgate release actuator by the tailgate outer handle switch operation when the vehicle runs at a speed less than 1 mph (2 km/h). The tailgate can be unlocked by the tailgate outer handle switch operation without having the remote if all the doors are unlocked.
Keyless Door Lock Control
When you press the LOCK button, all the doors lock. When you press the UNLOCK button once, only the driver's door unlocks. The other doors will unlock when you press the button a second time. The doors will not lock with the transmitter if a door is not fully closed, or if the vehicle is in the ON mode. Also, if the door is not opened within 30 seconds after the unlock operation, the relock operation is performed. The customization menu can set the relock timer value.
Keyless Answer Back Control

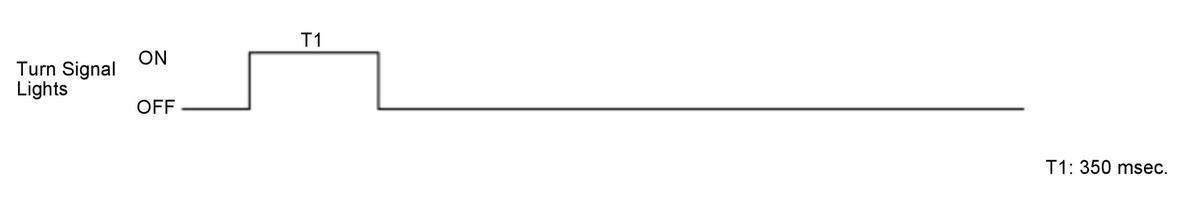

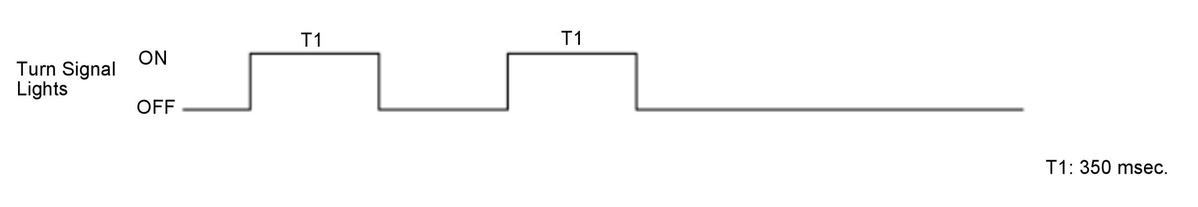

When using the remote, the body control module provides an answer back function to alert the operator that the body control module received a lock or unlock command from the remote. When the body control module receives a lock signal, the body control module sends the turn signal light signal once. When the body control module receives an unlock signal, it sends the turn signal light signal two times.
Lock
Unlock
Key Lockout Prevent Function
The body control module monitors whether or not there is the remote in the vehicle. If the remote is in the vehicle, the system will not lock the doors. If the driver manually locks and closes the doors with the remote in the vehicle, the body control module energizes the door lock actuator and unlocks the doors. Also, if the tailgate is closed with the remote in the vehicle, all the doors are closed, and the driver's door lock knob is in the lock position, the body control module energizes the door lock actuator and unlocks the doors*1 or the tailgate can be unlocked by the tailgate outer handle switch operation*2. In addition, when the key lockout prevent function operates, the answer back is performed.
*1: Without power tailgate
*2: With power tailgate
Automatic Door Lock/Unlock Control
The automatic door lock/unlock control function allows the body control module to detect the status of B-CAN and other various switch signals and control each actuator in order to automatically lock/unlock the doors.
Automatic Door Lock Function:
- When the vehicle speed exceeds 9 mph (15 km/h) (Default setting).
- When the shift position/mode is out of the P position/mode.
Automatic Door Unlock Function:
- When the driver's door switch is ON (door open) (Default setting).
- When the vehicle mode is changed to the OFF (LOCK) mode from the ON mode.
- When the shift position/mode is moved to the P position/mode from other than P position/mode.
Customizing Function:
The locking method can be set as non-link, link to vehicle speed, link to shift position/mode, or link to engine start/stop switch by the customizing function. For more information about customize options, refer to the Owner's Manual.

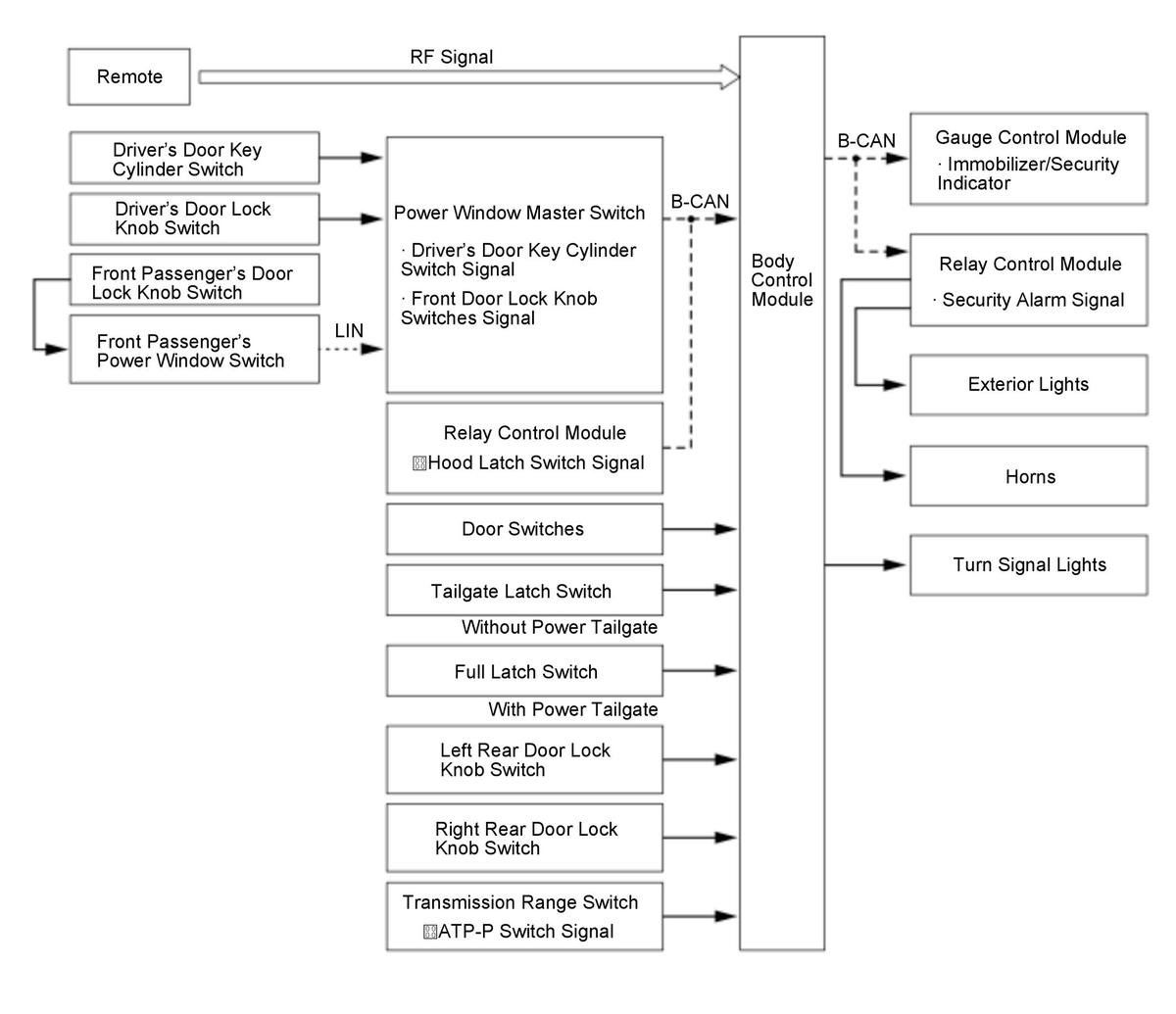

Security Control
When the security alarm is set, the body control module sends the security set signal using the B-CAN.
| Start setting |
|
| Cancellation |
|
| Setting conditions (related systems are normally operated) |
|
| Start the alarm | When any of the monitoring switch signal inputs are received without the signal for cancelling setting |
| Cancel the alarm |
|
Security Setting

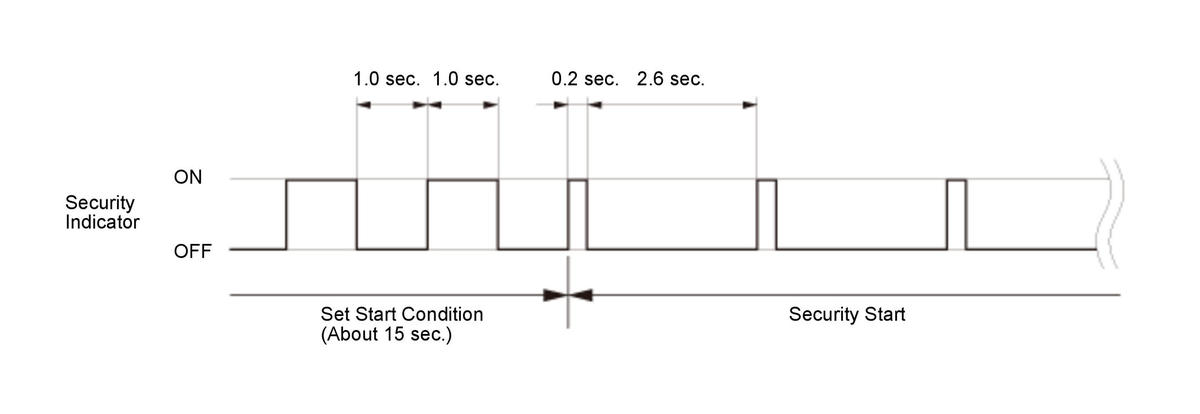

When the security alarm is set, the body control module sends the security set signal using the B-CAN. When the gauge control module receives a security set signal from the body control module, the security indicator flashes at a slower pace to indicate the system has armed.
Security Alarm

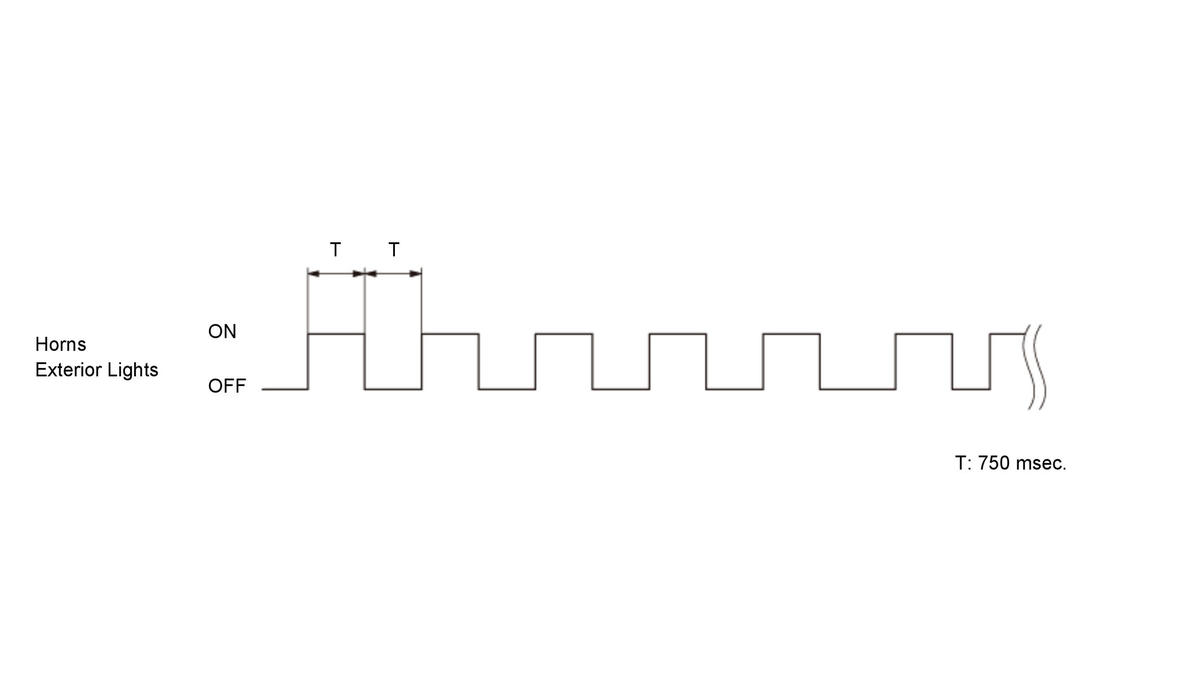

With the security system armed, manually opening the hood, the tailgate, or moving the door lock knob to the unlock position activates the security alarm. Alternatively, the security alarm sounds, the headlights low beam, the front parking lights, the taillights, the license plate light, and the side marker lights blink, repeating this alarm (one cycle is 120 seconds). Even if you remove the 12 volt battery, the alarming state cannot be changed. The alarm starts again when reinstalling the 12 volt battery.
Security Answer Back Control

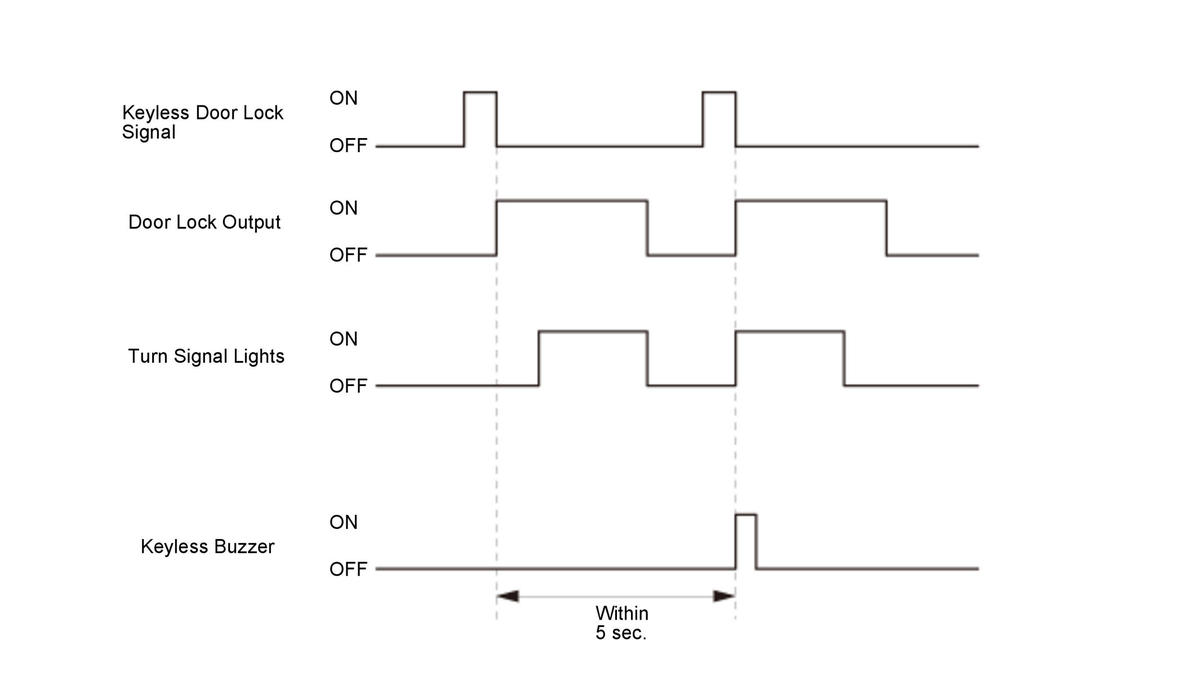

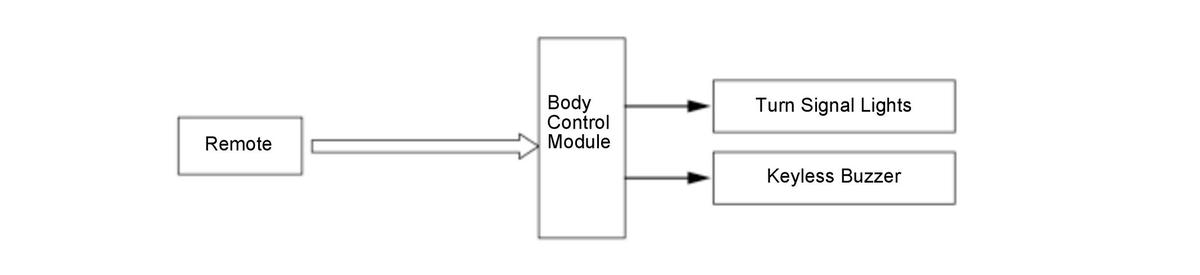

When using the remote, the body control module provides an answer back function to alert the customer that the body control module received a lock command from the remote. When the body control module receives a lock signal, the body control module outputs once to turn on the turn signal lights, and the keyless buzzer will sound.
When the body control module receives a lock signal, the body control module sends signals once to the turn signal lights, and the keyless buzzer will sound once when you operates the lock again within 5 seconds.
