Keyless/Power Door Locks/Security System Symptom Troubleshooting - Security Alarm System Will Not Arm: Inspection

HOOD_SW, GND Circuit Inspection

Test Procedure

• Preparation

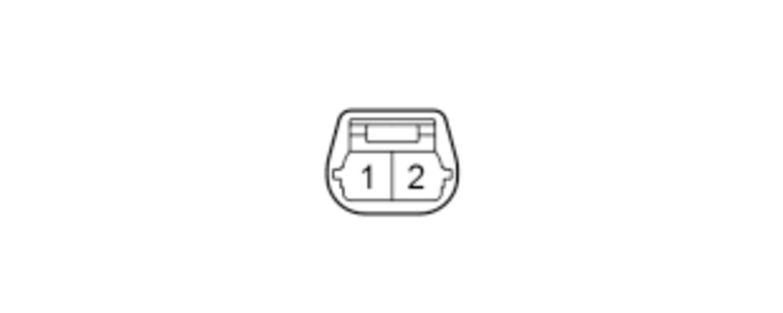

  • Hood latch switch connector (2P) : disconnected

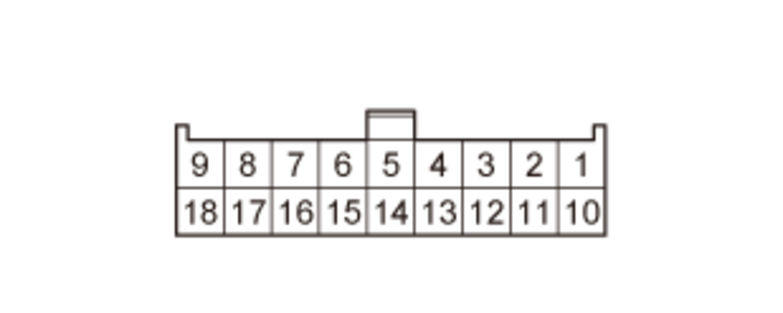

  • Relay control module connector C (18P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Hood latch switch connector (2P) female terminals	(Disconnected) Relay control module connector C (18P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	HOOD_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	HOOD_SW shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

FL_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation

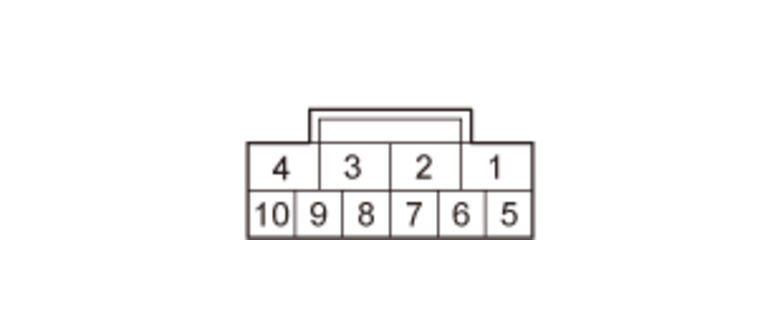

  • Driver's door latch connector (10P) : disconnected

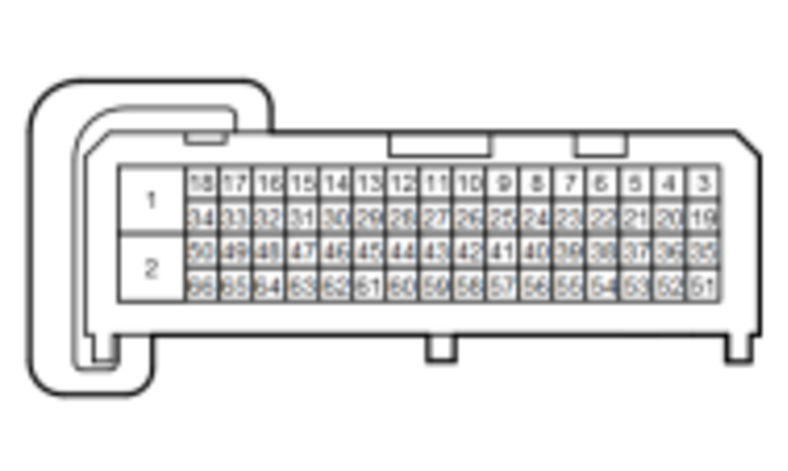

  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Driver's door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	FL_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

DR_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
  • Driver's door latch connector (10P) : disconnected

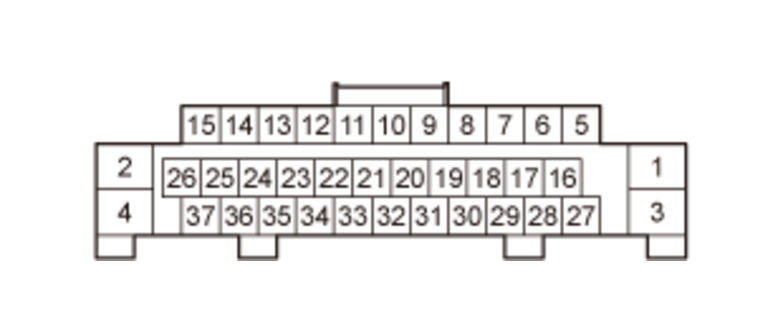

  • Power window master switch connector (37P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Driver's door latch connector (10P) female terminals	(Disconnected) Power window master switch connector (37P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	DR_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	DR_SILCON_UNLOCK shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

DR_KEY_CYL_LOCK, GND Circuit Inspection

Test Procedure

• Preparation
  • Driver's door latch connector (10P) : disconnected
  • Power window master switch connector (37P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Driver's door latch connector (10P) female terminals	(Disconnected) Power window master switch connector (37P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	DR_KEY_CYL_LOCK open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	DR_KEY_CYL_LOCK shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

FR_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation
  • Front passenger's door latch connector (10P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Front passenger's door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	FR_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

AS_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
  • Front passenger's door latch connector (10P) : disconnected

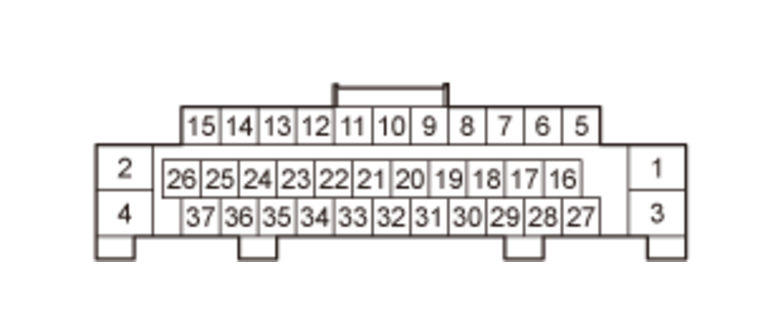

  • Front passenger's power window switch connector (37P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Front passenger's door latch connector (10P) female terminals	(Disconnected) Front passenger's power window switch connector (37P) - Refer to: Front Passenger's Power Window Switch Connector for Inputs and Outputs female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	AS_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	AS_SILCON_UNLOCK shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

RL_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation
  • Left rear door latch connector (10P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Left rear door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	RL_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

RR_L_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
  • Left rear door latch connector (10P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Left rear door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	RR_L_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	RR_L_SILCON_UNLOCK shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

RR_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation
  • Right rear door latch connector (10P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Right rear door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	RR_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

RR_R_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
  • Right rear door latch connector (10P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Right rear door latch connector (10P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	RR_R_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	RR_R_SILCON_UNLOCK shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

TAIL_GATE_SW, GND Circuit Inspection (without power tailgate)

Test Procedure

• Preparation

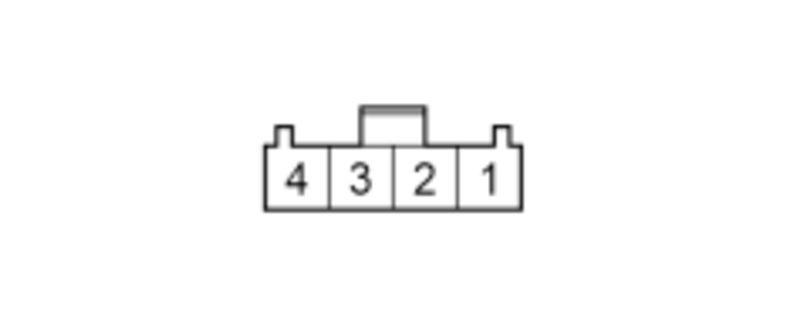

  • Tailgate latch connector (4P) : disconnected
  • Body control module connector B (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Tailgate latch connector (4P) female terminals	(Disconnected) Body control module connector B (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	TAIL_GATE_SW open wire inspection	OFF			There is less than 1 Ohm
    	GND open wire inspection	OFF			There is less than 1 Ohm
    	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	TAIL_GATE_SW shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
