Engine Start/Stop Switch Test: Test

How To Use This Service Information .

1. Engine Start/Stop Switch - Test

   Preconditions

   • Dashboard Center Trim Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, and 3)



     • When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
     • Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

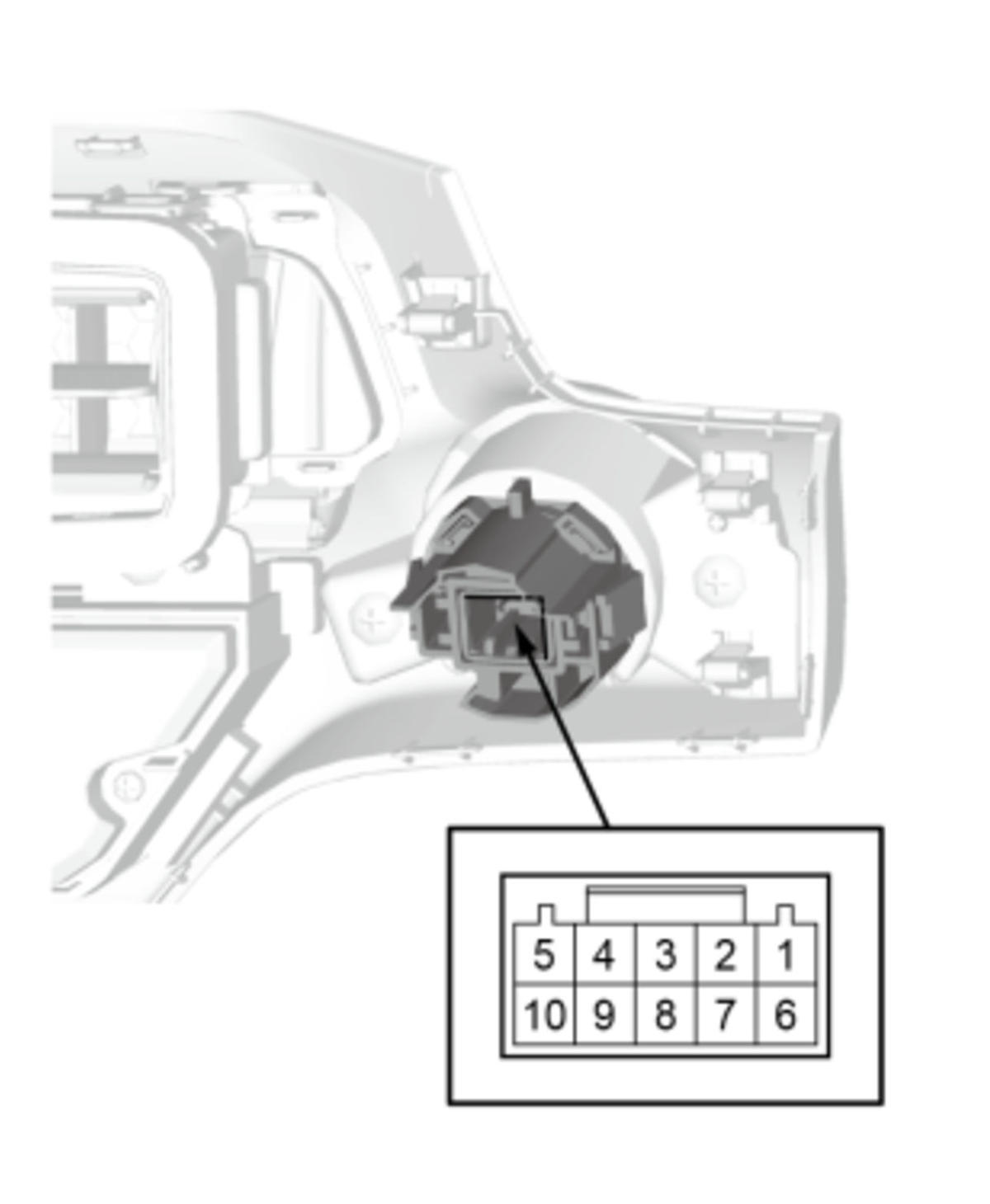

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

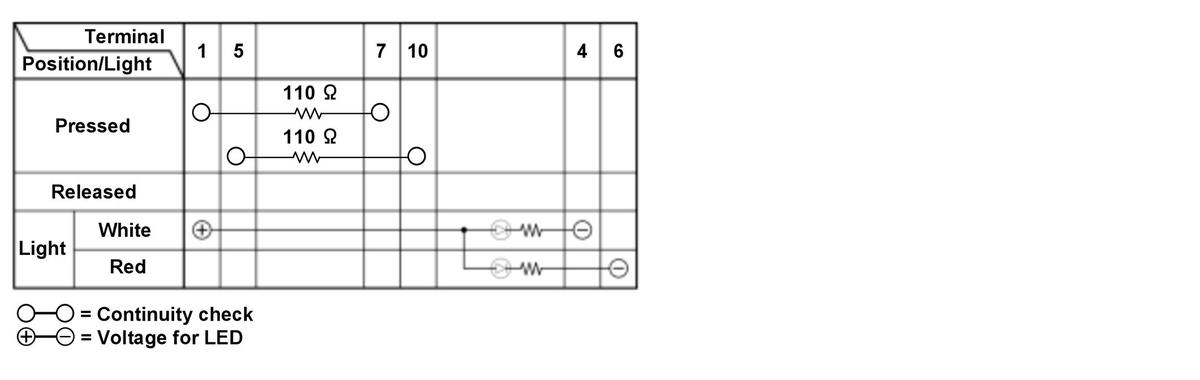

   Figure 2 (Switch)

   Courtesy of HONDA, U.S.A., INC.

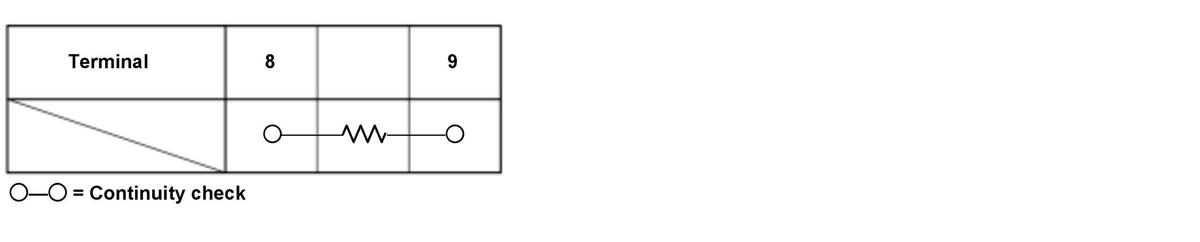

   Figure 3 (LF Antenna)

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the engine start/stop switch .
