Driver's Power Seat Motor Test (Driving Position Memory System (DPMS)): Test

How to use this Service Information .

Slide/Tilt

1. Slide Motor/Tilt Motor - Test

   Preconditions

   • Driver's Seat Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

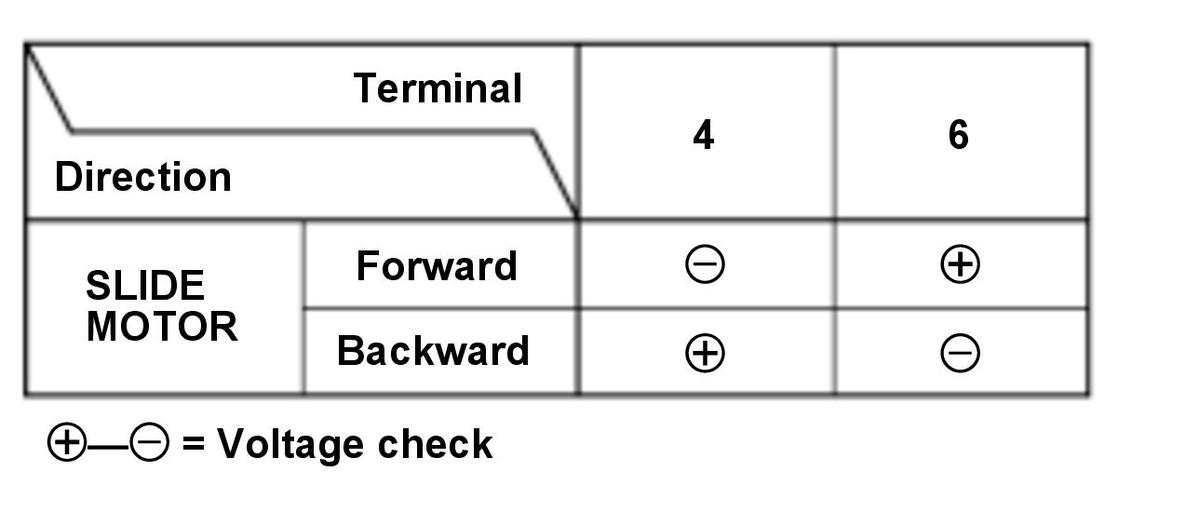

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

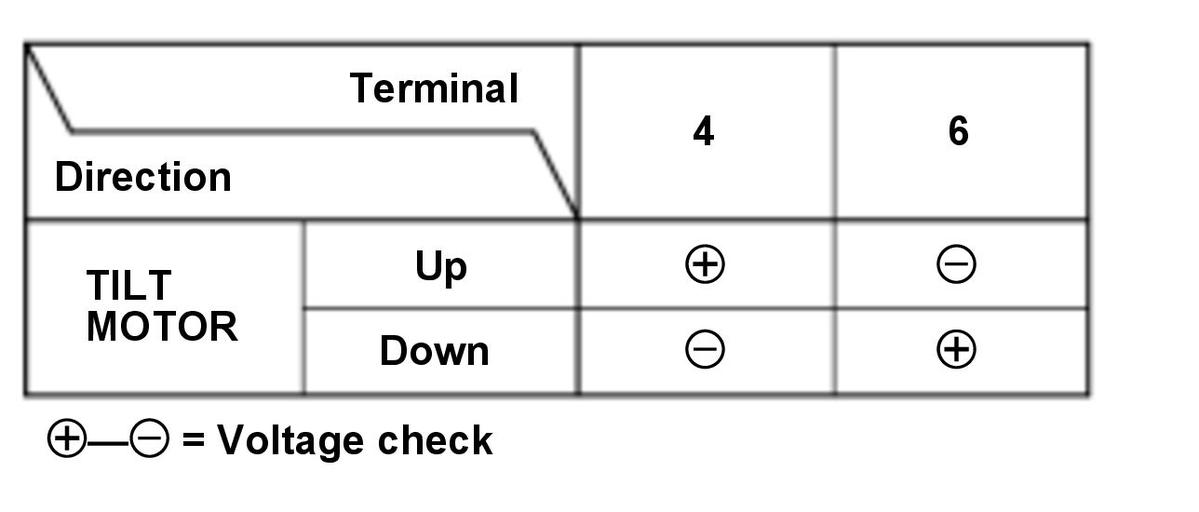

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1, 2, 3, and 4)

     Courtesy of AMERICAN HONDA MOTOR CO., INC.

     To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1, 2, and 3)

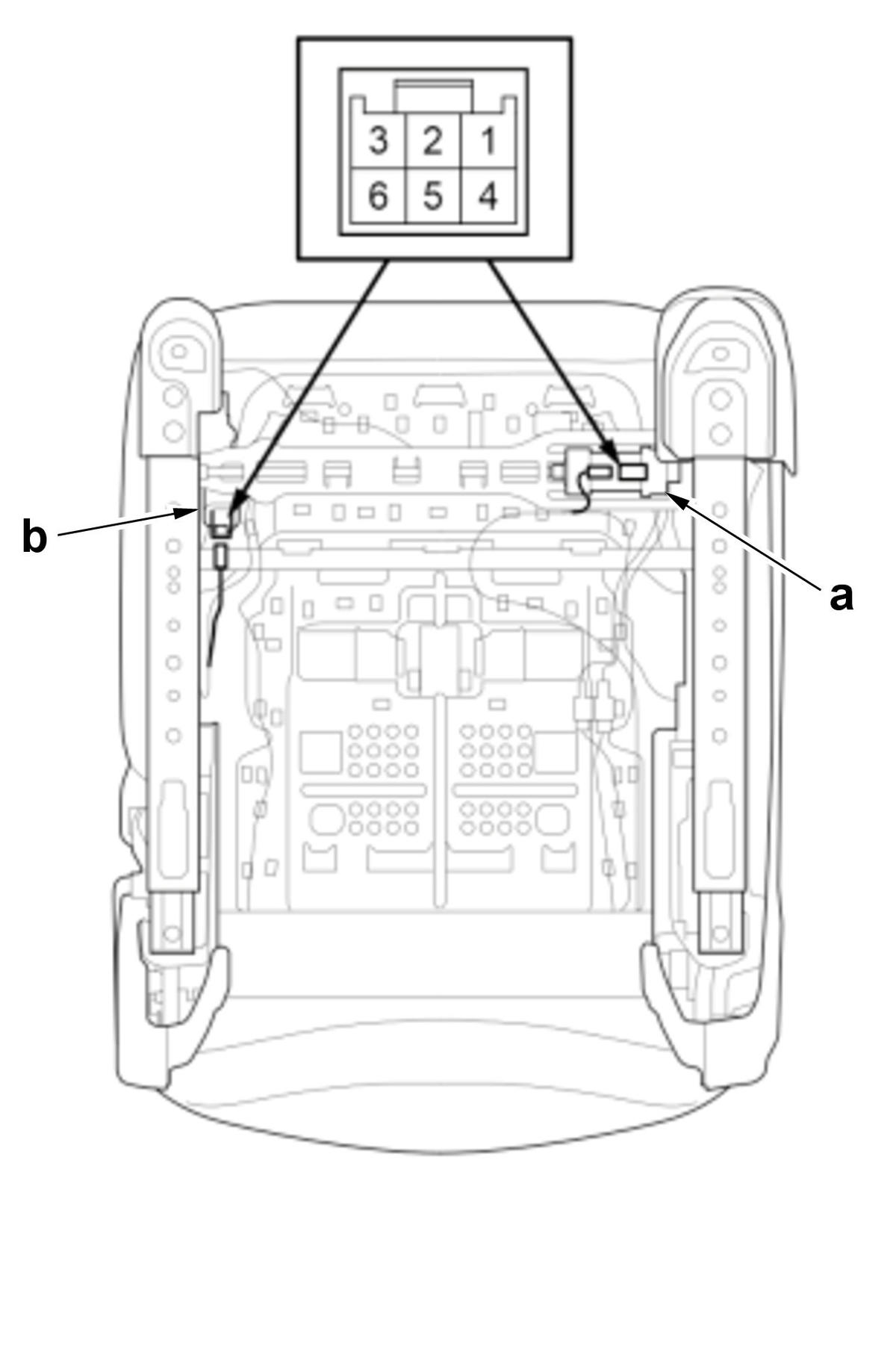

   Motor Details (Figure 1)

   Name
   a	Slide Motor
   b	Tilt Motor

   Result

   • If the motor does not operate as specified, replace the seat cushion frame .

   Height

2. Height Motor - Test

   Preconditions

   • Driver's Seat Recline Cover Removed

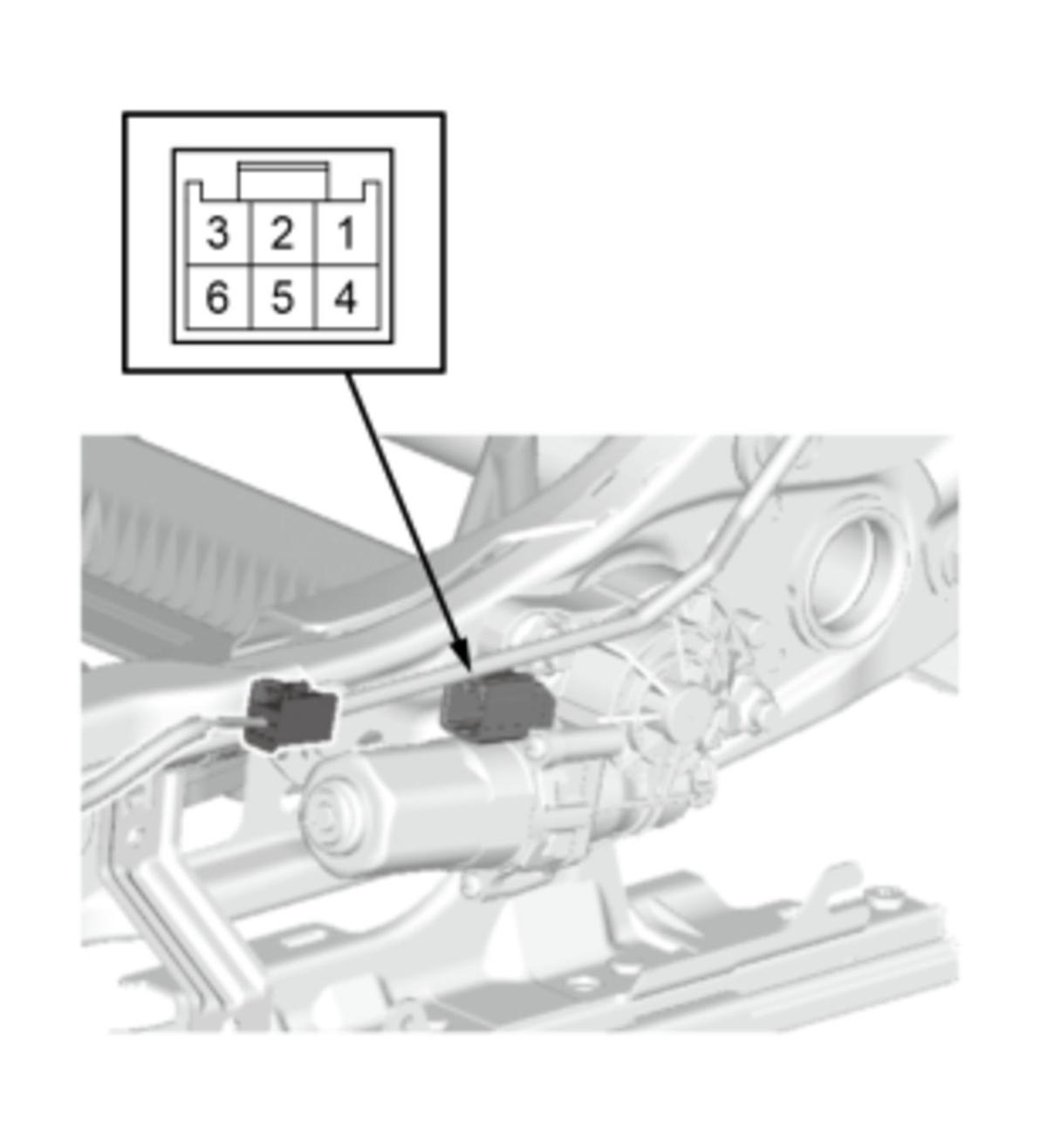

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

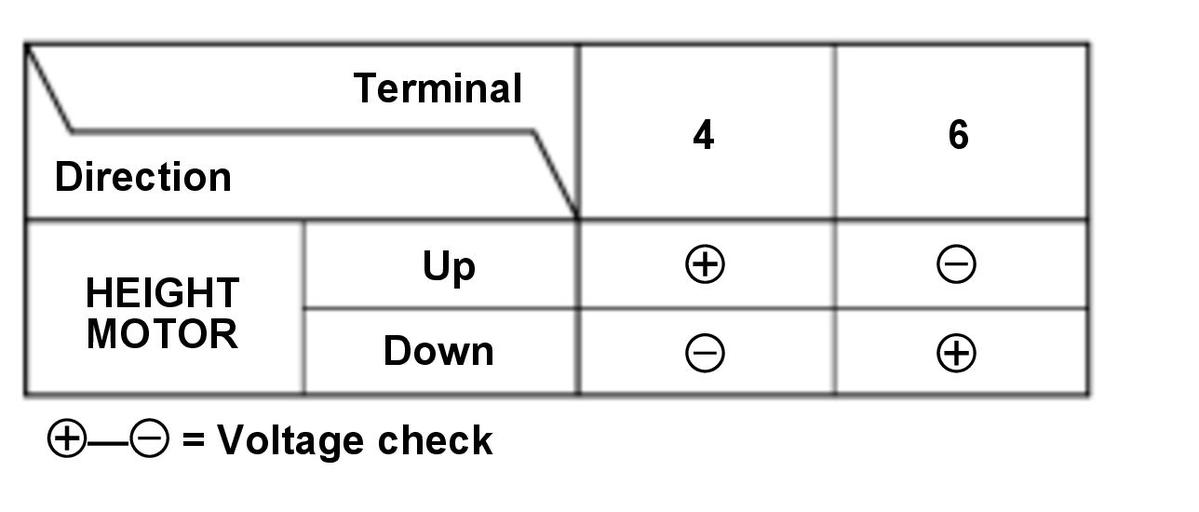

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1 and 2)

     Courtesy of AMERICAN HONDA MOTOR CO., INC.

     To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1 and 2)

   Result

   • If the motor does not operate as specified, replace the seat cushion frame .

   Recline

3. Recline Motor - Test

   Preconditions

   • Driver's Seat-Back Cover/Pad Removed as needed

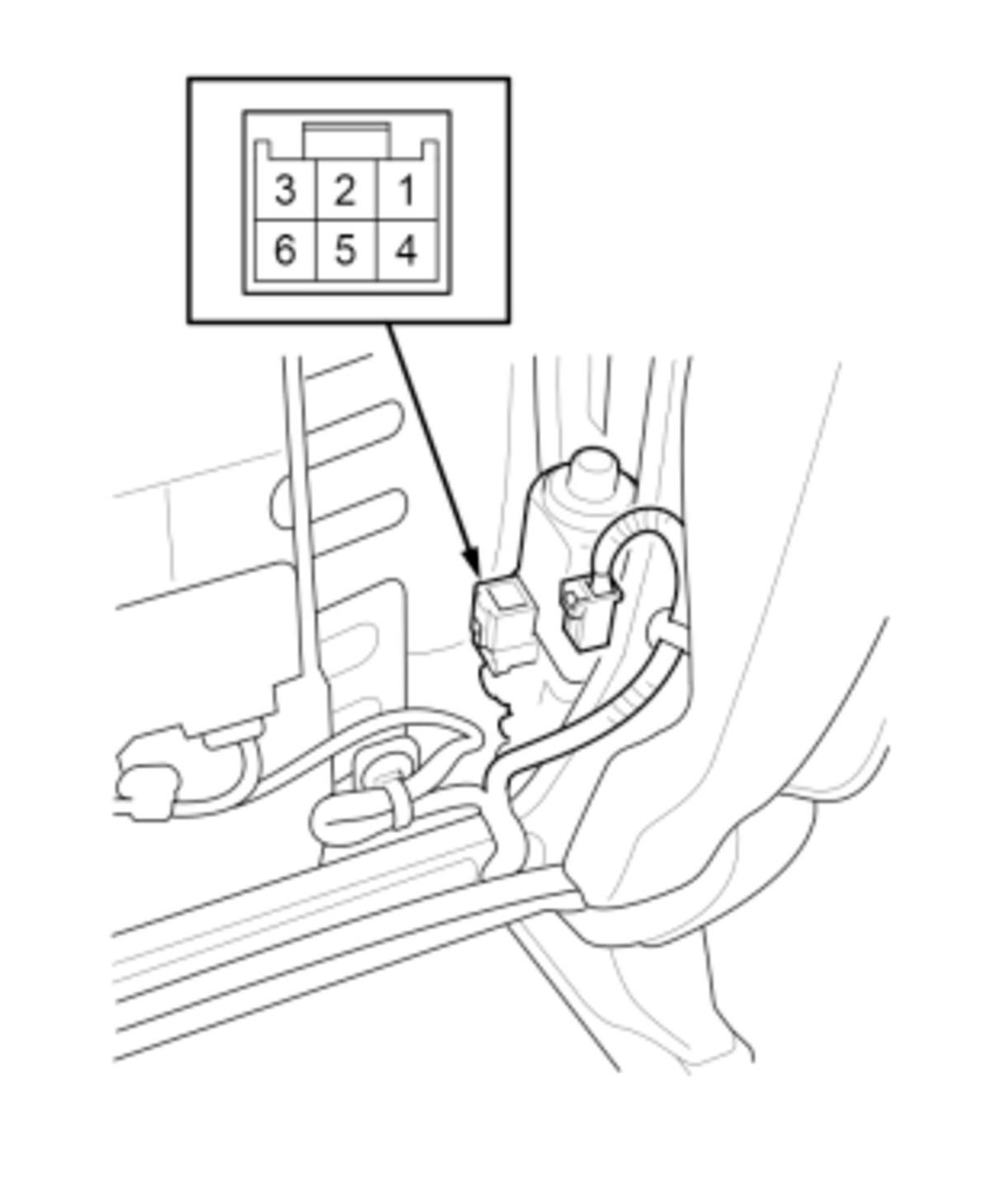

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

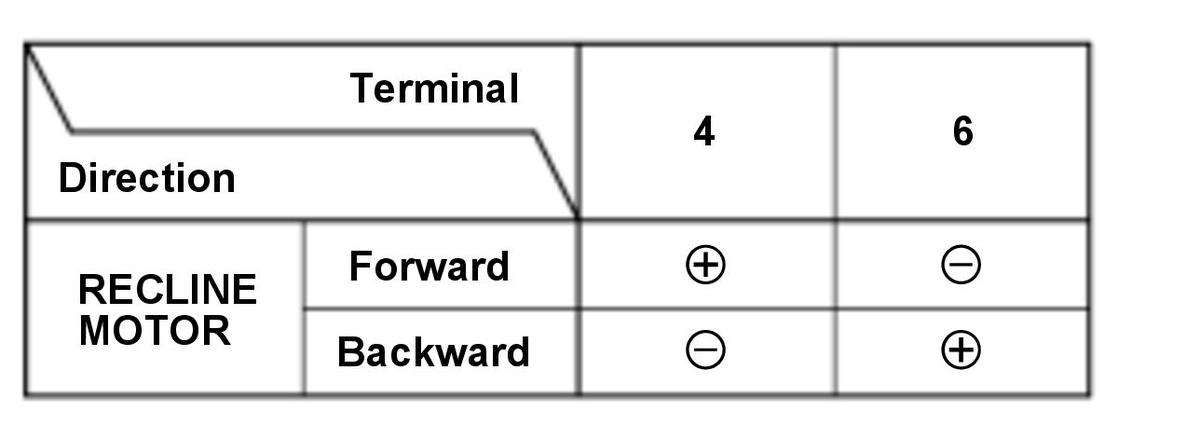

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1 and 2)

     Courtesy of AMERICAN HONDA MOTOR CO., INC.

     To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1 and 2)

   Result

   • If the motor does not operate as specified, replace the seat-back frame .
