Cannot Select ON Mode With Keyless Access, But Can Select ON Mode With The Keyless Remote Touching The Engine Start/Stop Switch: Inspection

SS1 (+), SS2 (-) Open Wire Inspection

Test Procedure

• Preparation

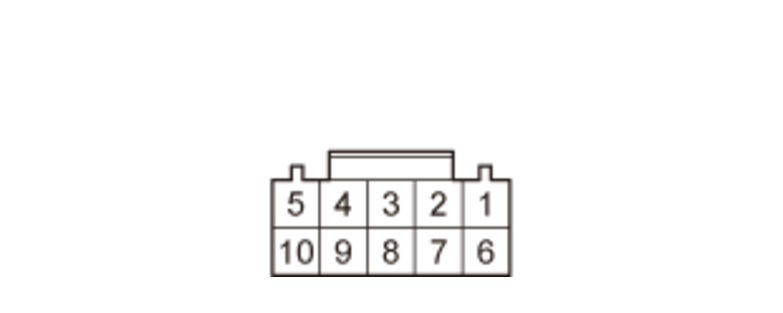

  • Engine start/stop switch connector (10P) : disconnected

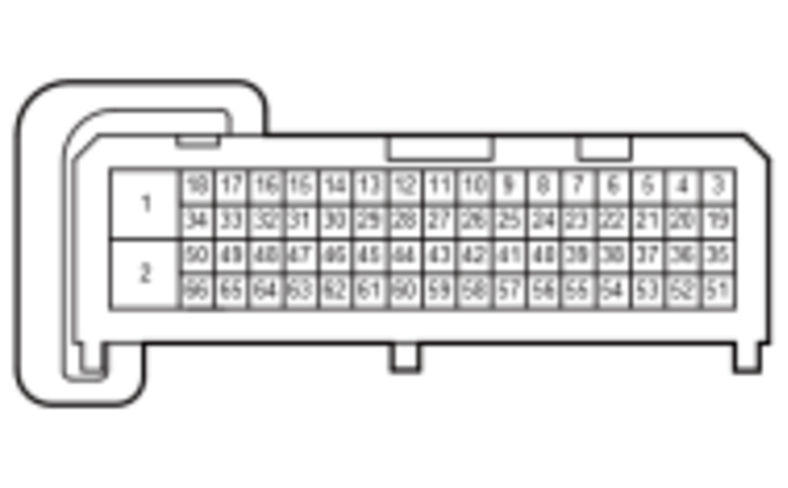

  • Body control module connector C (66P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) Engine start/stop switch connector (10P) female terminals	(Disconnected) Body control module connector C (66P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	SS1 (+) open wire inspection	OFF			There is less than 1 Ohm
    	SS2 (-) open wire inspection	OFF			There is less than 1 Ohm

Results

• If it is abnormal, there is a problem in the circuit.

Body Control Module Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
