With All Power Windows AUTO UP/DOWN Function

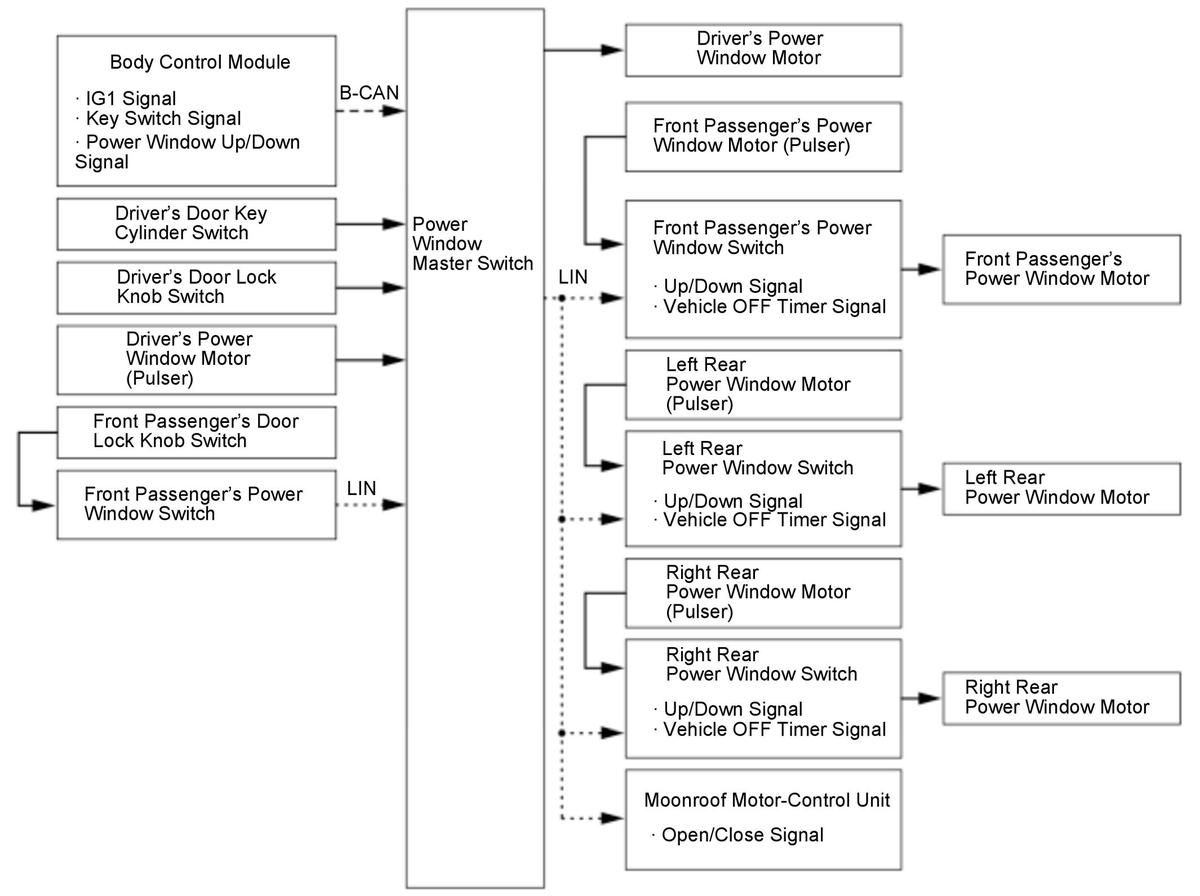

GHH553785Courtesy of HONDA, U.S.A., INC.
Keyless Operation Open Possible
Close Impossible
Key Cylinder Operation Open Possible
Close Possible
