Engine Block Assembly Component Location Index

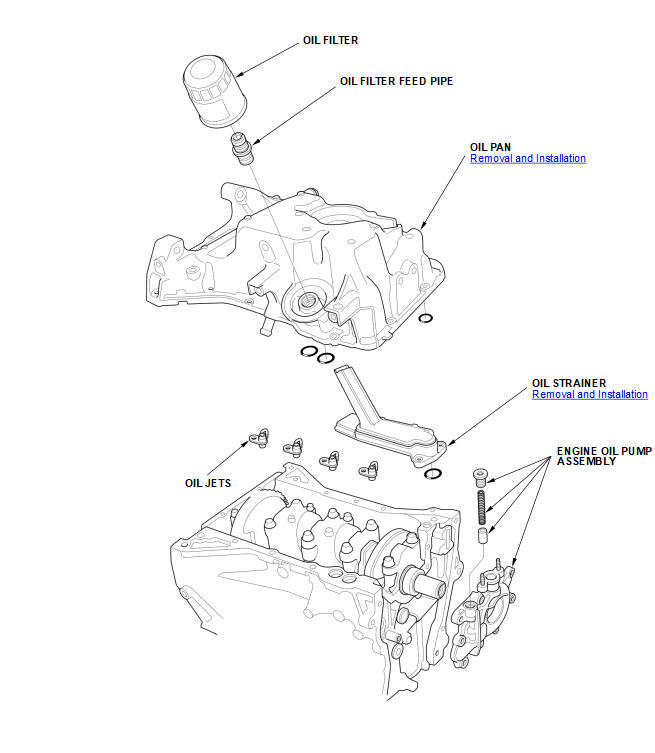

GHH548386Courtesy of HONDA, U.S.A., INC.

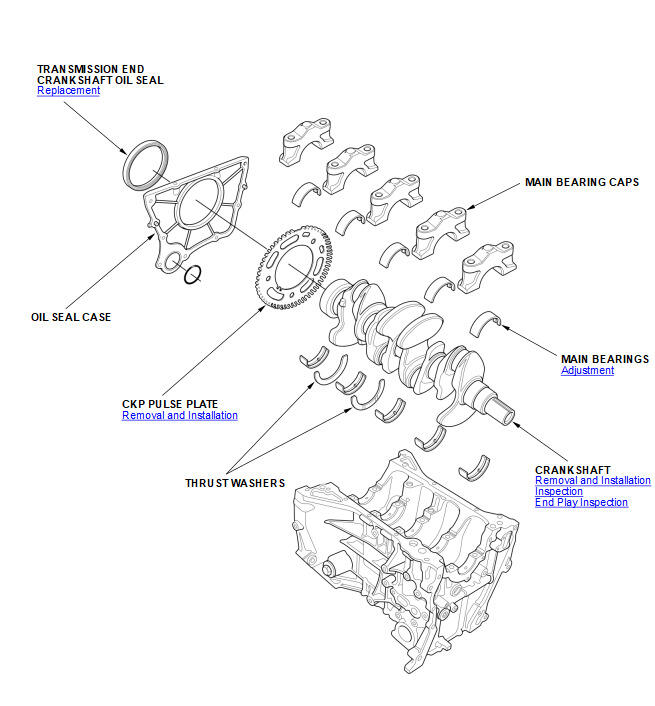

GHH548387Courtesy of HONDA, U.S.A., INC.

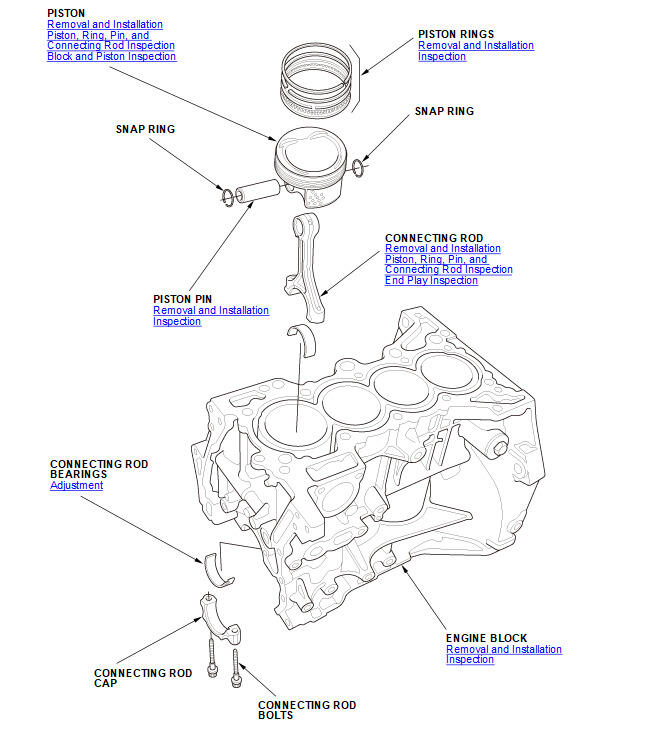

GHH548388Courtesy of HONDA, U.S.A., INC.
