Alternator Area: Notes

Exploded View

Fig 1: Drive Belt Routing & Pulley Bolt

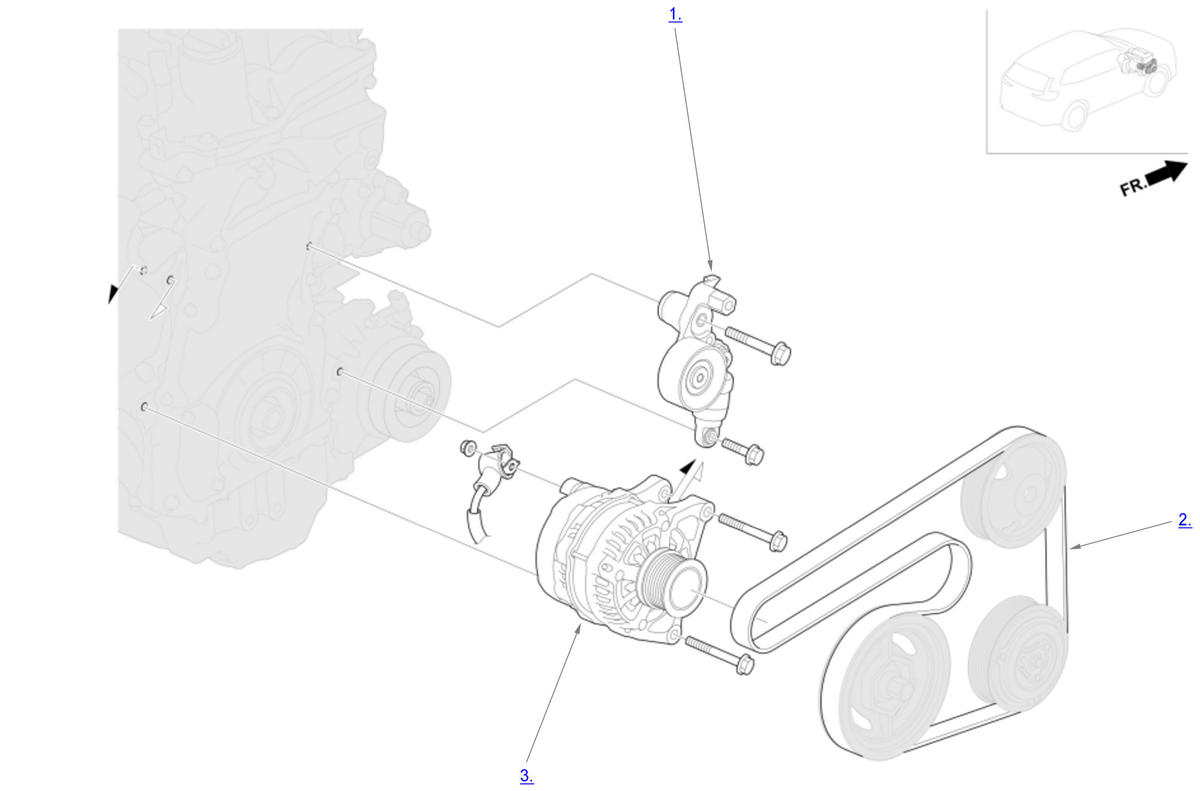

GHH544238Courtesy of HONDA, U.S.A., INC.

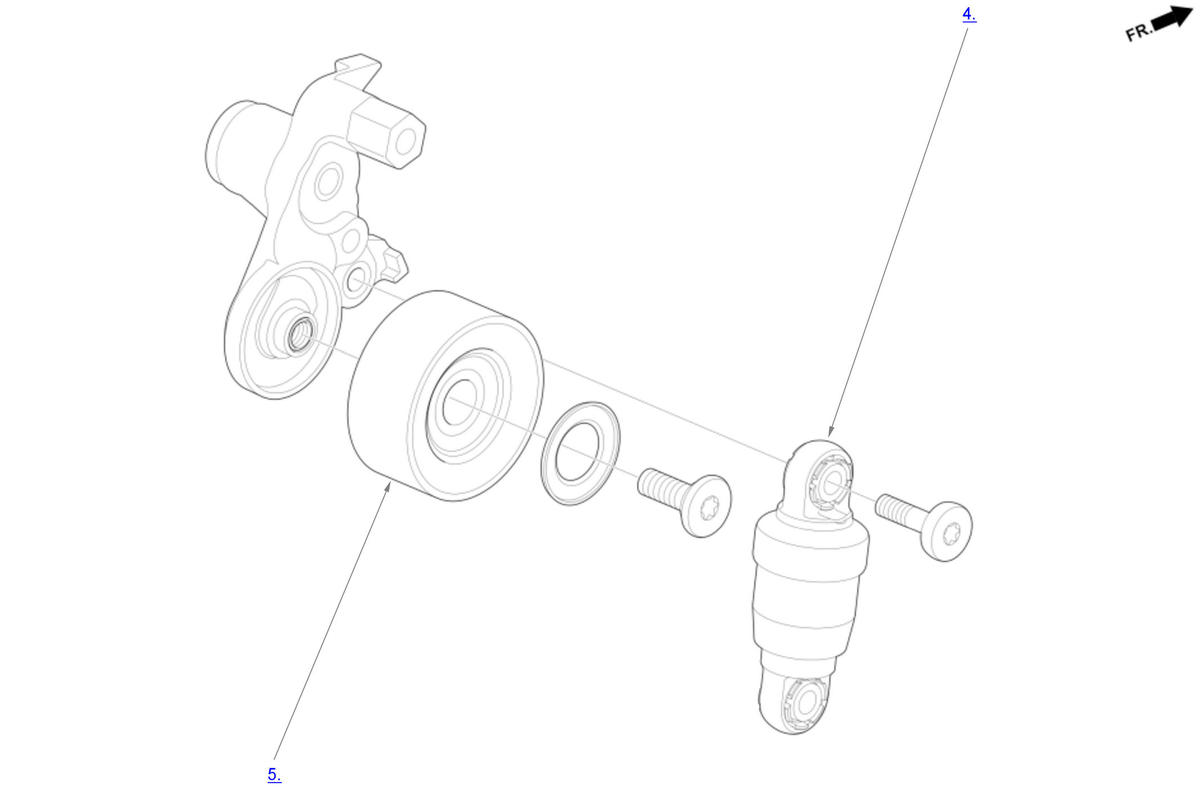

GHH544239Courtesy of HONDA, U.S.A., INC.
Alternator Area

Component Name Callout
Drive Belt Auto-Tensioner 1
Drive Belt 2
Alternator 3
Drive Belt Auto-Tensioner Damper 4
Drive Belt Auto-Tensioner Pulley 5
