Repair Procedure: Notes

How to use this Service Information .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

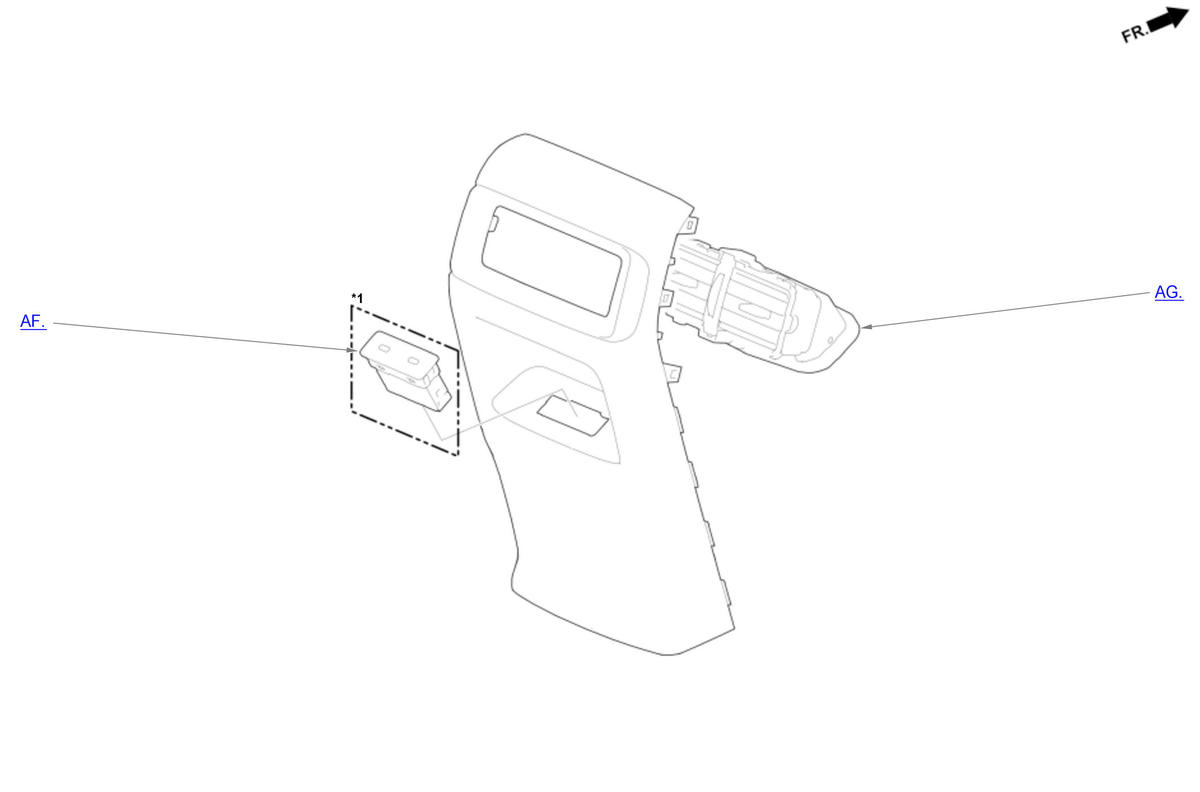

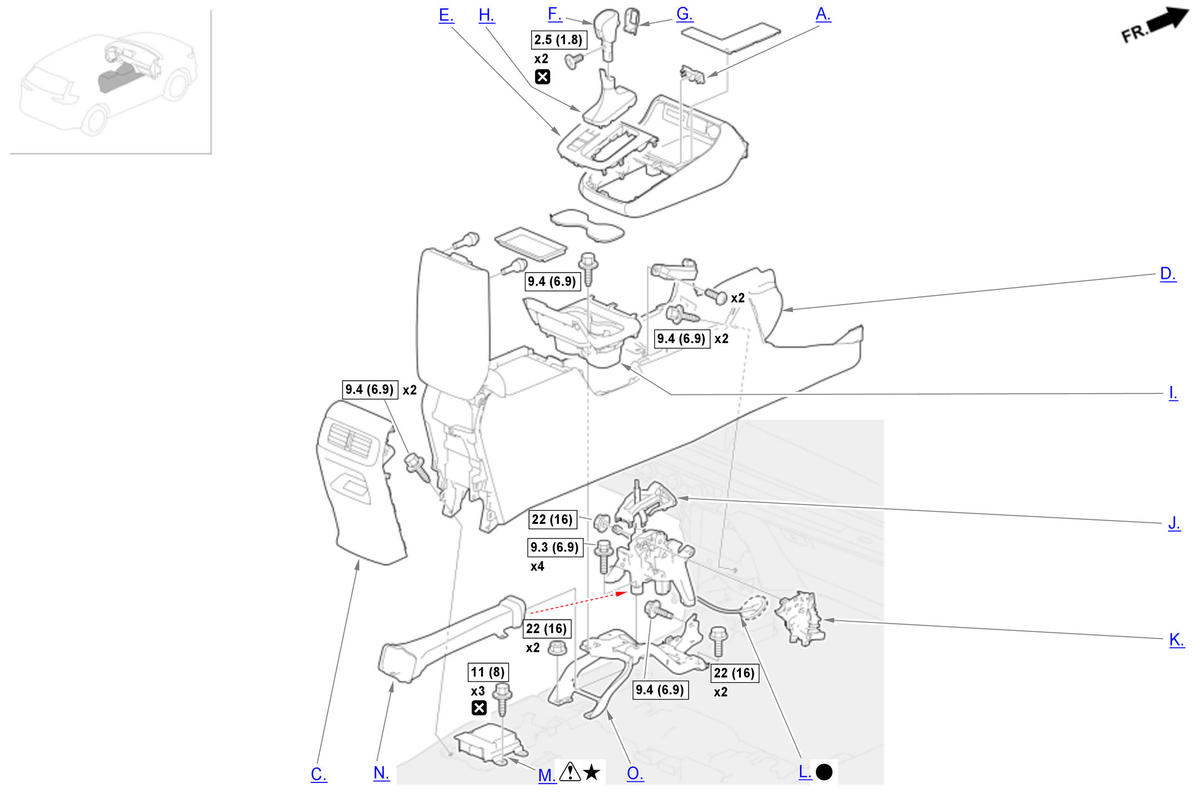

Fig 1: Center Console Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

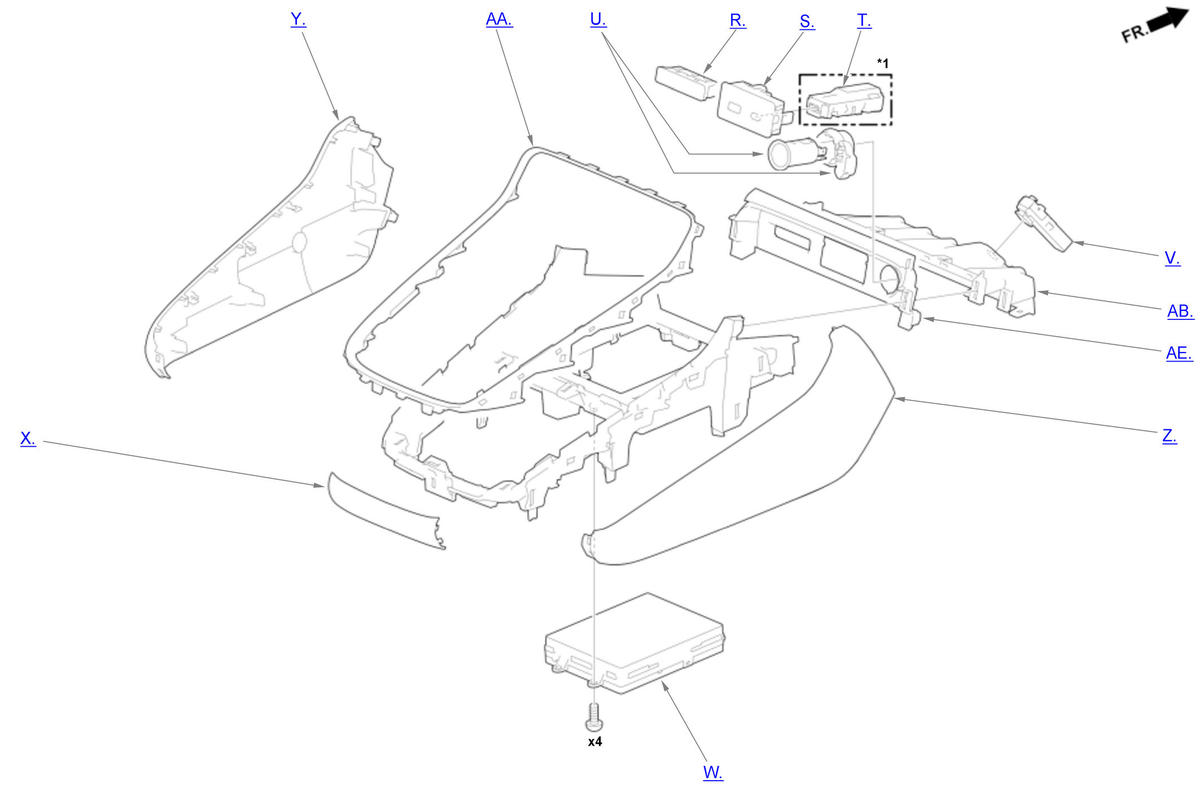

Fig 2: Center Console Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

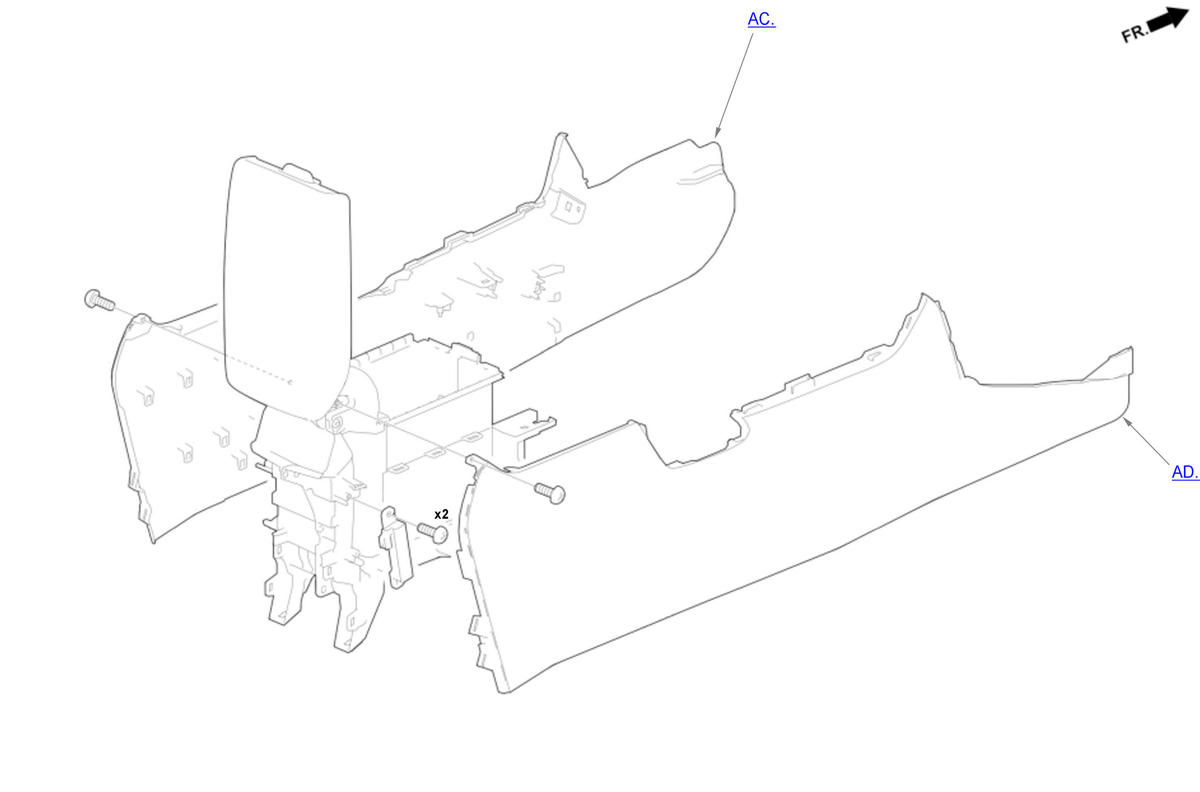

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

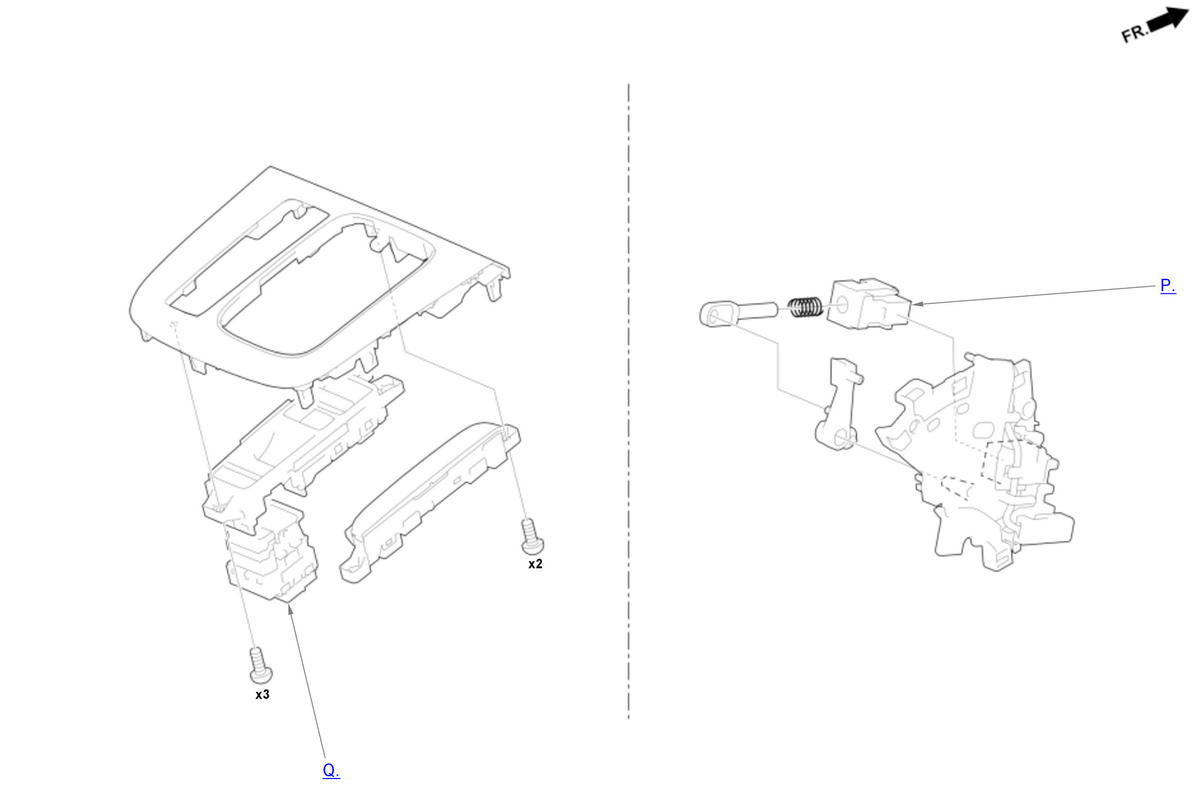

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

*1: With front USB charging port

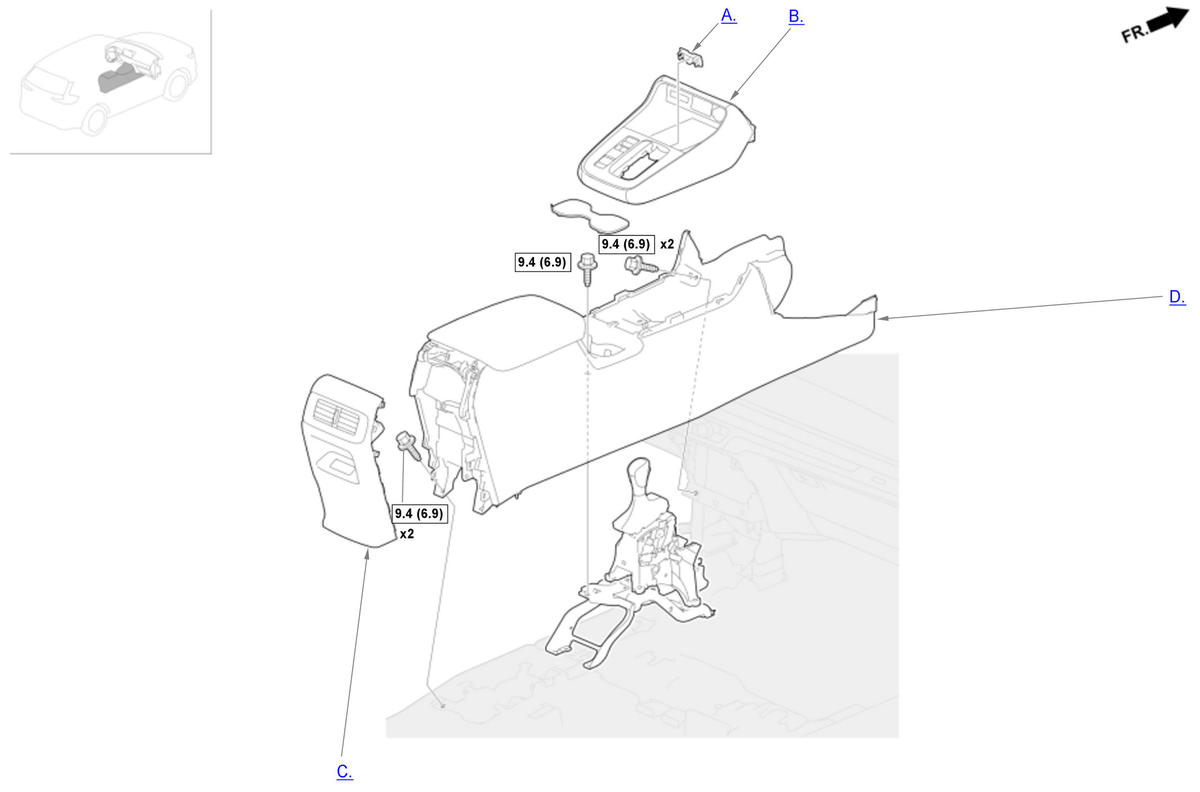

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

*1: With rear USB charging port
