Repair Procedure: Notes

How to use this Service Information .

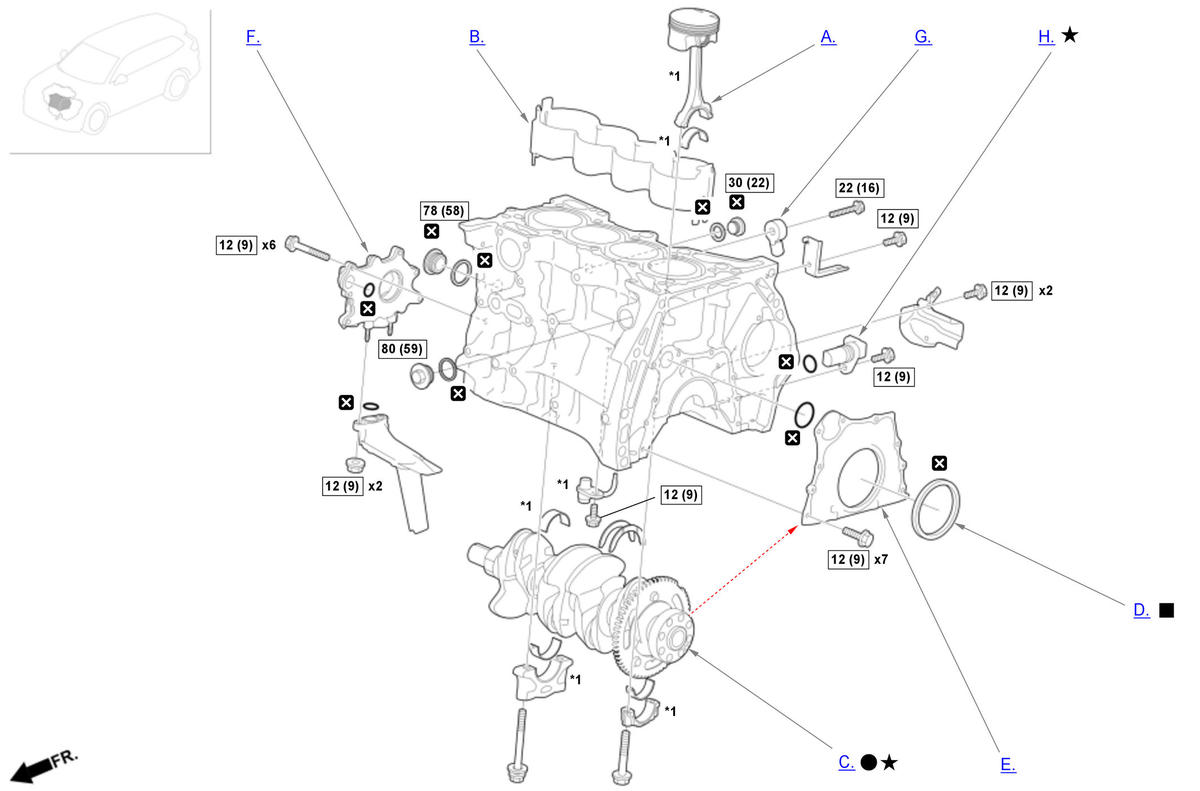

Fig 1: Engine Block/Crankshaft Area Replacement Components With Torque Specifications
GHH546855Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : ■SPL Tool : Required Removal
*1: In the illustration, other parts are omitted because the component parts and the removal/installation procedure are the same.

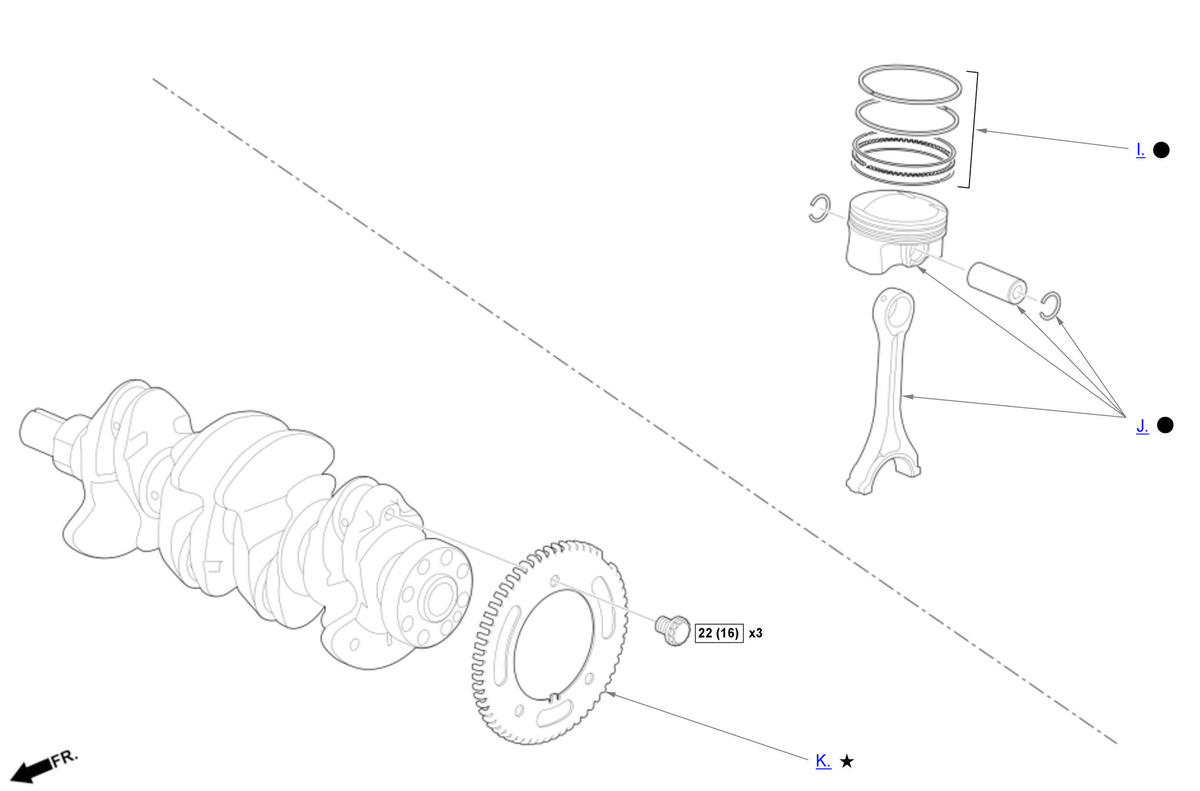

Fig 2: Engine Block/Crankshaft Area Replacement Components With Torque Specifications
GHH546856Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : ■SPL Tool : Required Removal
