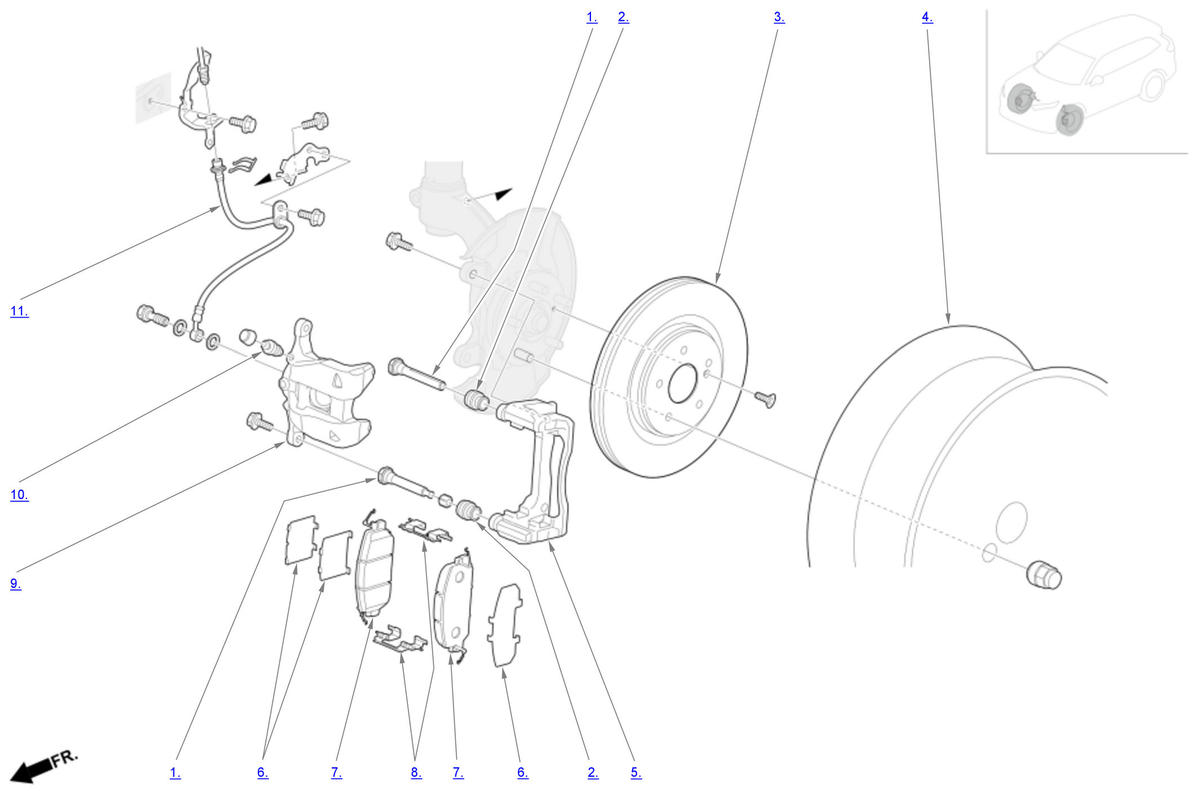

Exploded View
For Replacement of components listed below, see Repair Procedure
Front Brake Area
| Component Name | Callout |
|---|---|
| Caliper Pin | 1 |
| Pin Boot | 2 |
| Brake Disc | 3 |
| Wheel | 4 |
| Caliper Bracket | 5 |
| Pad Shim | 6 |
| Brake Pad | 7 |
| Pad Retainer | 8 |
| Caliper Body | 9 |
| Bleed Screw | 10 |
| Brake Hose | 11 |
