With Integrated Driver Support System (With Roof Rail)

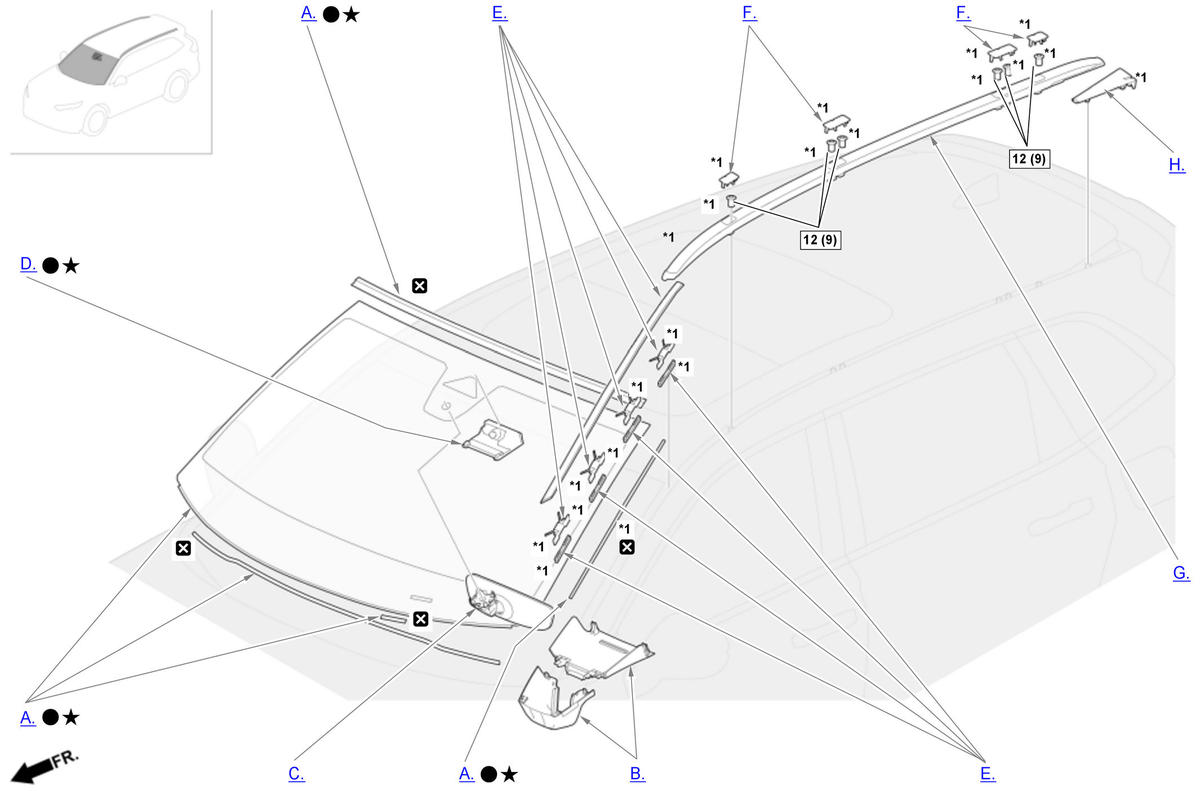

Fig 1: Windshield Area Replacement Components With Torque Specifications (With Integrated Driver Support System And Roof Rail)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
