Steering
>>
Power Steering
>>
Steering System - Testing And Troubleshooting (Except Hybrid)
>>
Connector View
>>
EPS Control Unit Connector for Inputs and Outputs
>>
EPS Control Unit Connector A (2P)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EPS Control Unit Connector A (2P)

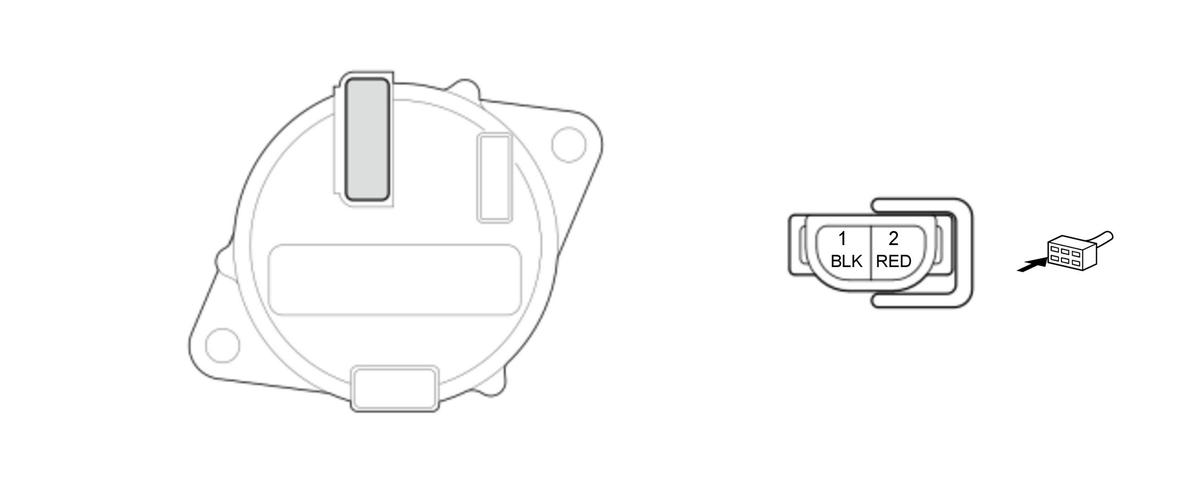

EPS Control Unit Connector A (2P) (female terminals)
Courtesy of HONDA, U.S.A., INC.
Terminal number
Terminal sign
Description
1
GND
Ground for the EPS control unit
2
+B_EPS
Power source for the actuator EPS motor
