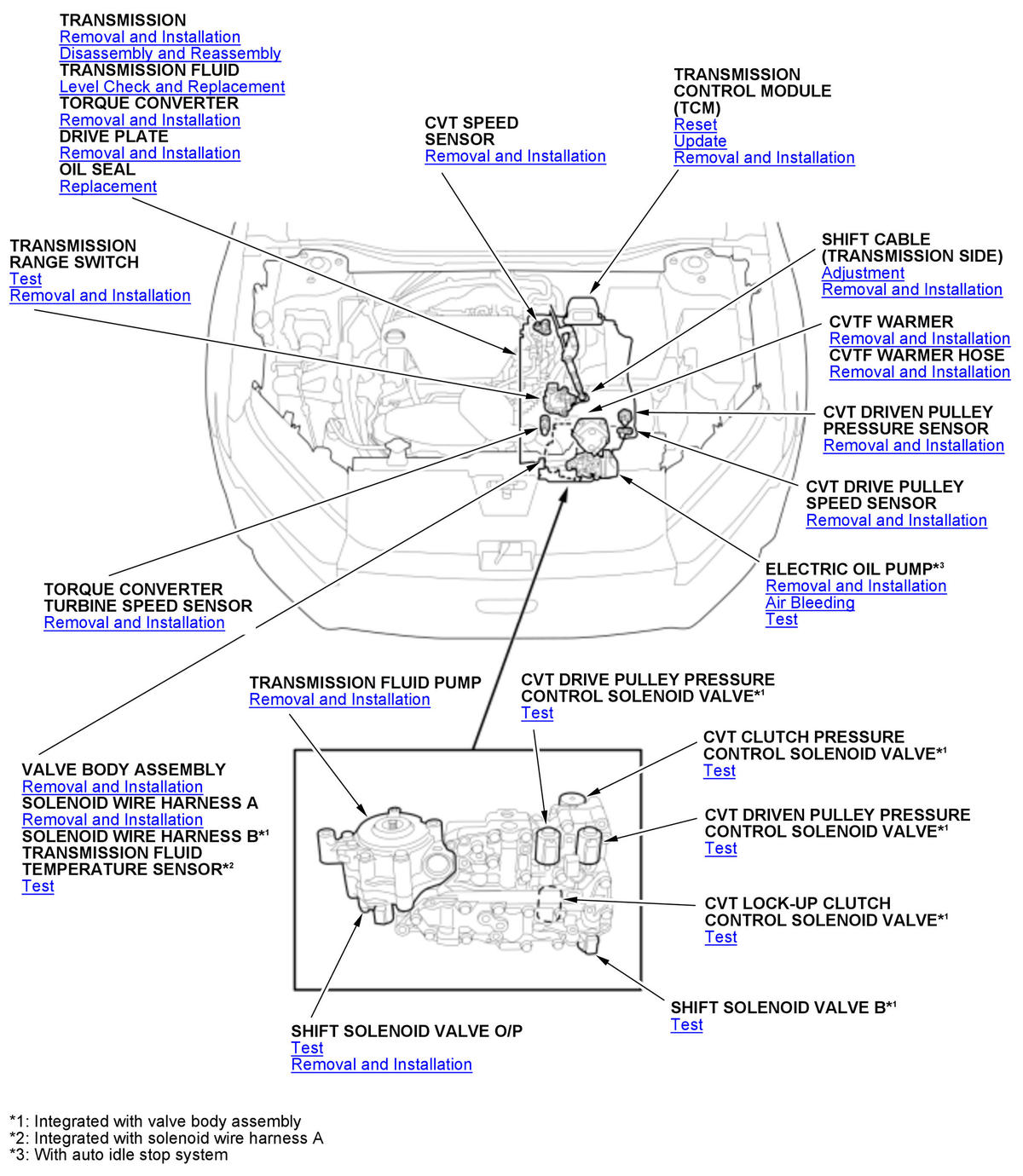

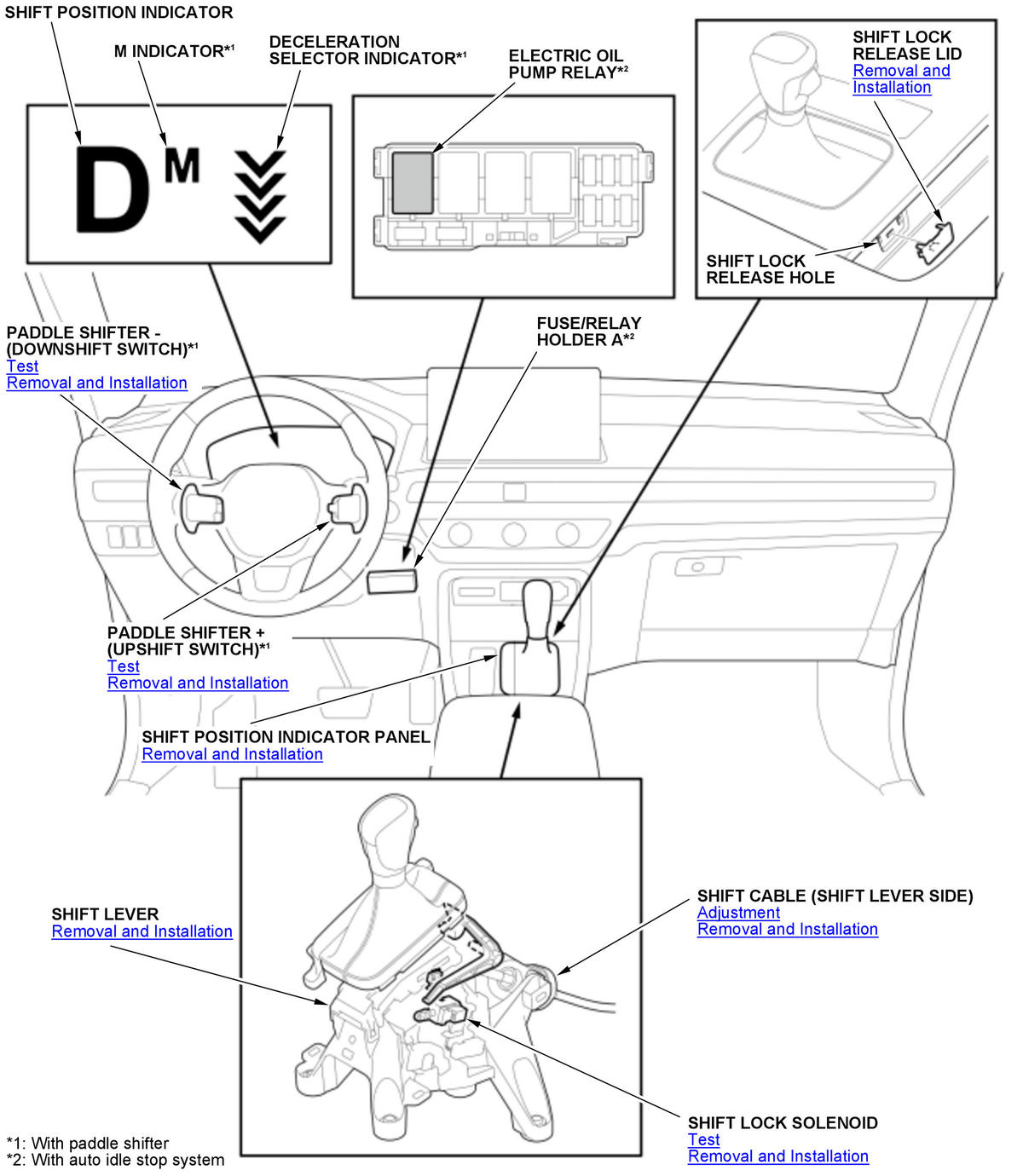

CVT System Component Location Index

For relationships between signals in a system, refer to System Diagram - Go to: CVT System Description - Electronic Control System .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
