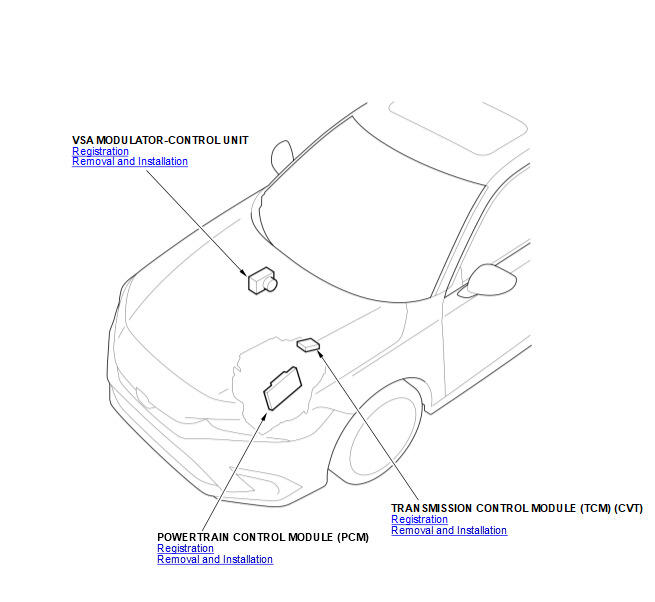

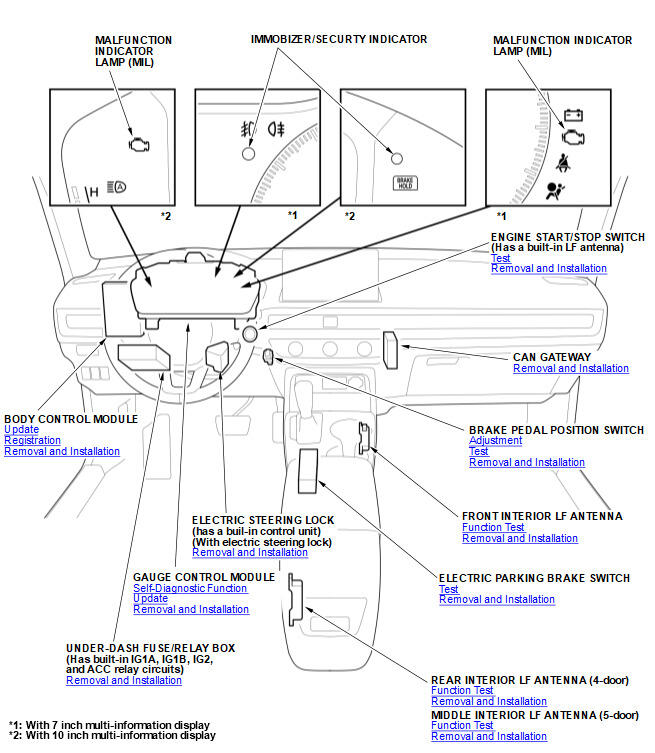

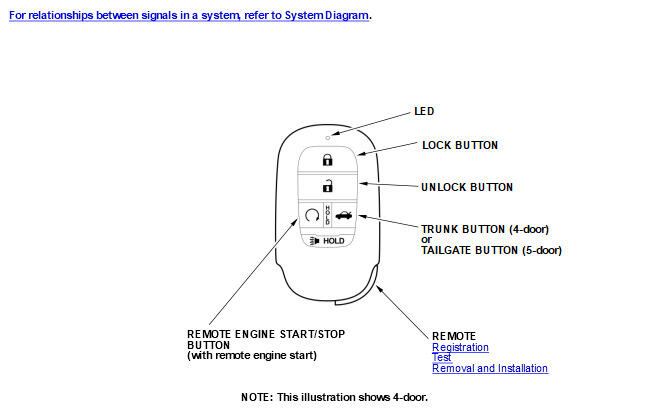

Keyless Access System Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.

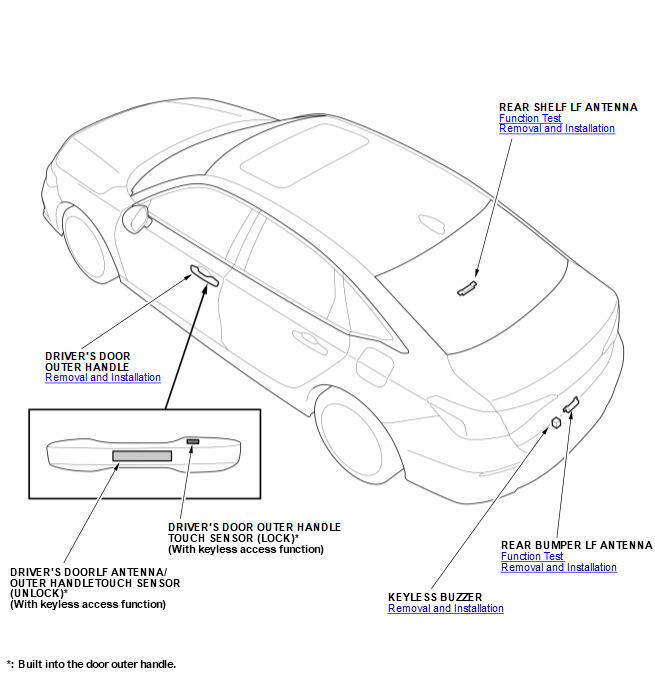

4-door
Courtesy of HONDA, U.S.A., INC.

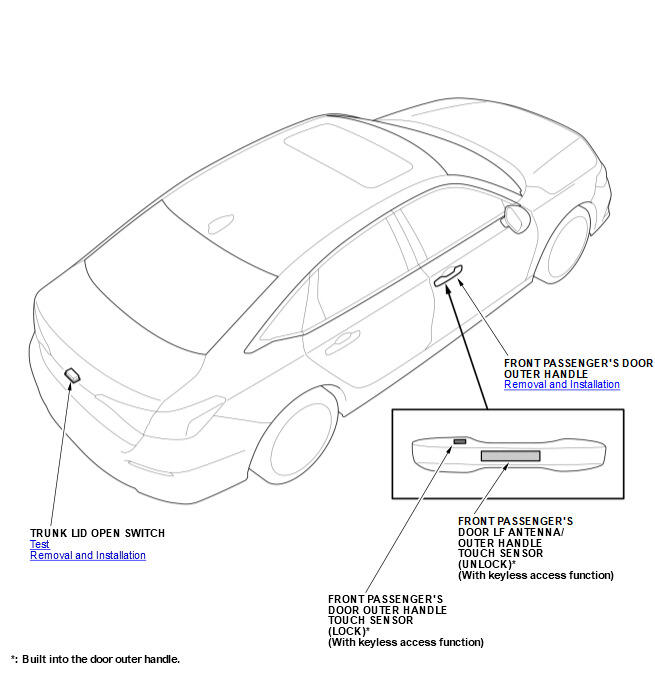

4-door
Courtesy of HONDA, U.S.A., INC.

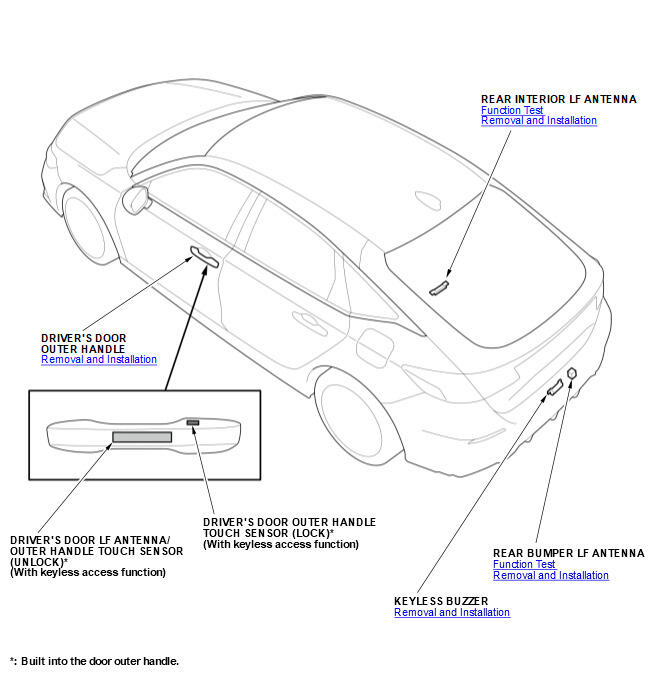

5-door
Courtesy of HONDA, U.S.A., INC.

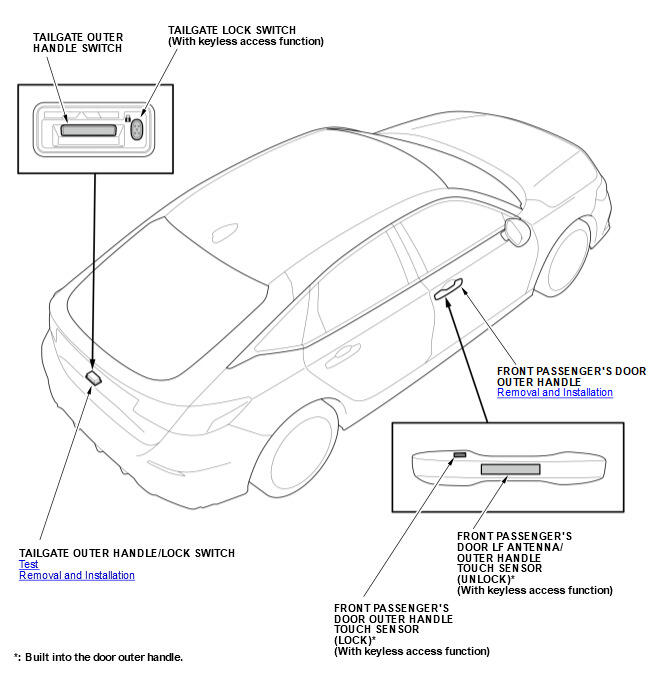

5-door
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
