Keyless/Power Door Locks/Security System Component Location Index

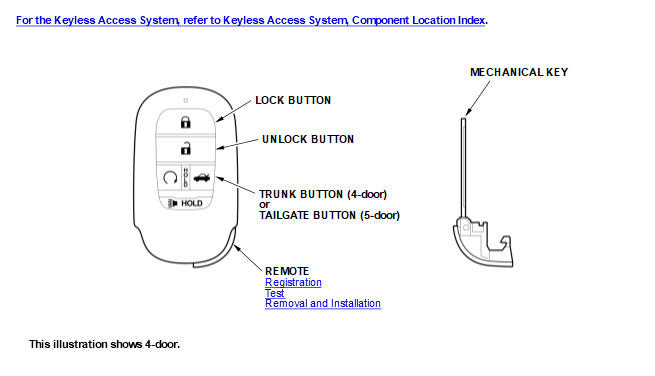

GHH680975

Courtesy of HONDA, U.S.A., INC.

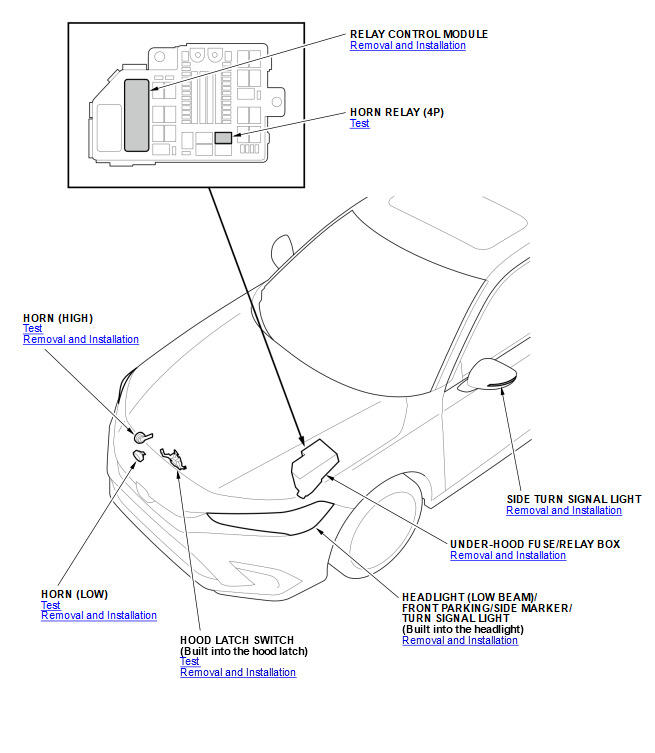

GHH680976

Courtesy of HONDA, U.S.A., INC.

4-Door

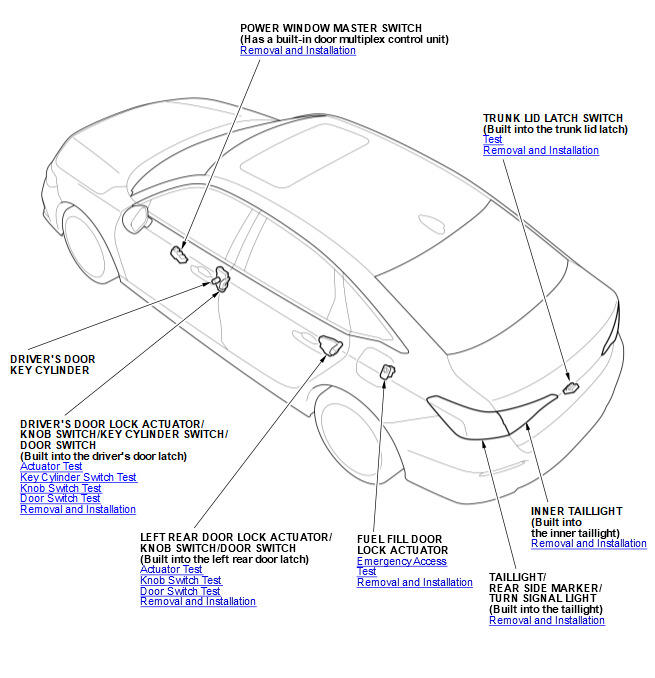

GHH680977

Courtesy of HONDA, U.S.A., INC.

4-Door

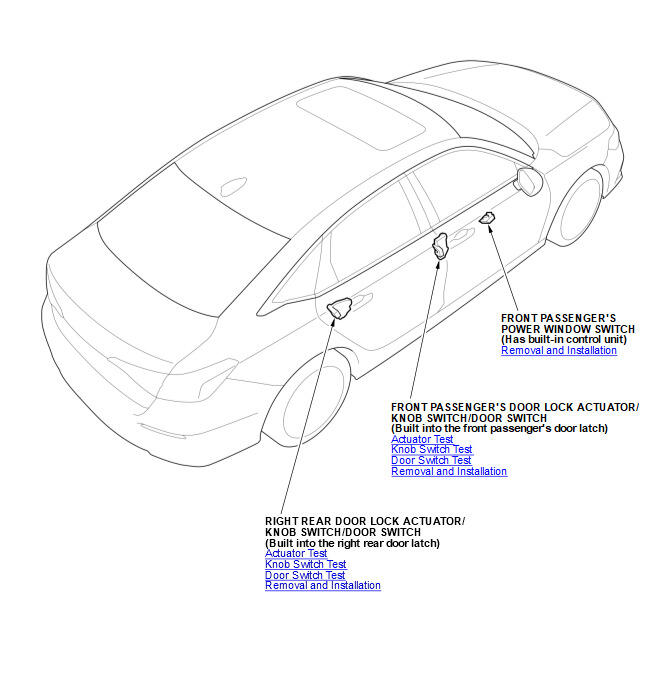

GHH680978

Courtesy of HONDA, U.S.A., INC.

5-Door

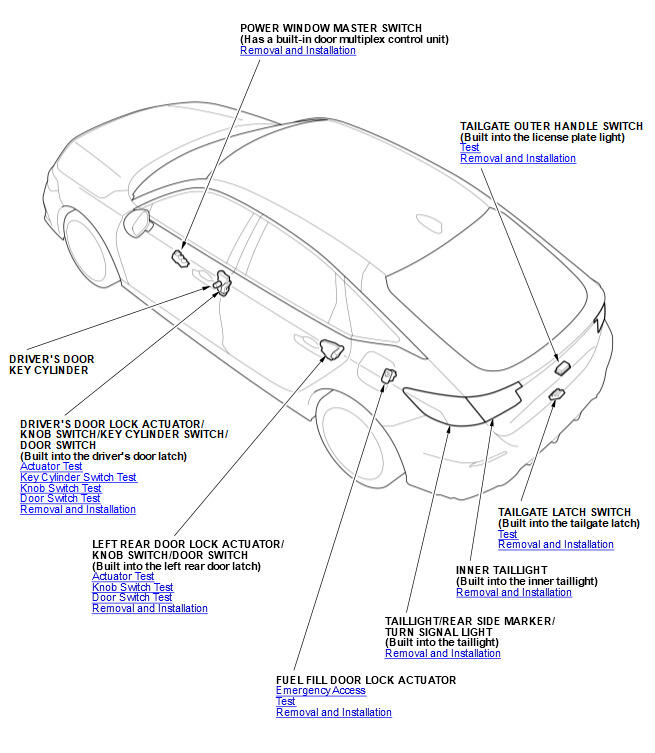

GHH680979

Courtesy of HONDA, U.S.A., INC.

5-Door

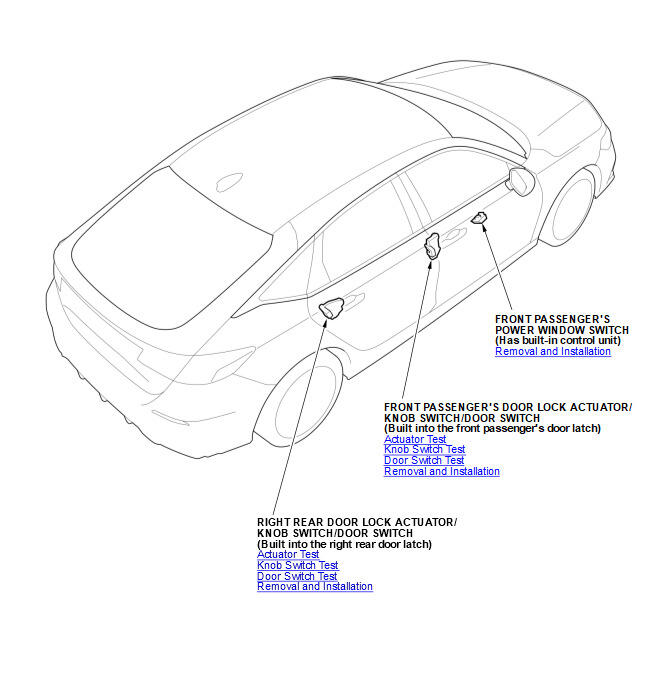

GHH680980

Courtesy of HONDA, U.S.A., INC.

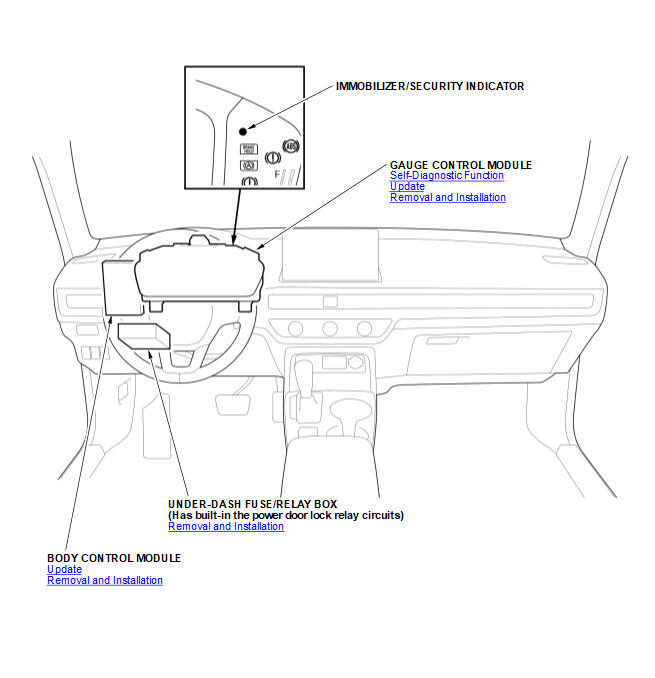

GHH680981

Courtesy of HONDA, U.S.A., INC.
