Multipurpose Camera Unit Connector For Inputs And Outputs

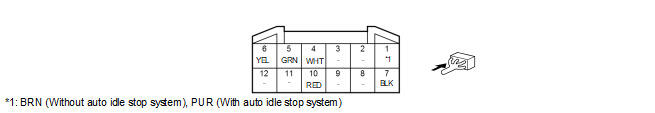

Multipurpose Camera Unit 12P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | IG1_OPTION* 1 | Power source for the multipurpose camera unit |
| IG1_RELAY2* 2 | ||
| 2 | Not used | - |
| 3 | Not used | - |
| 4 | AF-CAN A_H | AF-CAN A communication (high) circuit |
| 5* 3 | CAMERA_HTR_GND | Ground for the camera heater |
| 6* 3 | CAMERA_HTR_PWR | Power source for the camera heater |
| 7 | GND | Ground circuit for the multipurpose camera unit |
| 8 | Not used | - |
| 9 | Not used | - |
| 10 | AF-CAN A_L | AF-CAN A communication (low) circuit |
| 11 | Not used | - |
| 12 | Not used | - |
*1: Without auto idle stop system*2: With auto idle stop system*3: With camera heater
