Transmission Components (1.5L Engine): Notes

Image	Description/Tool Number

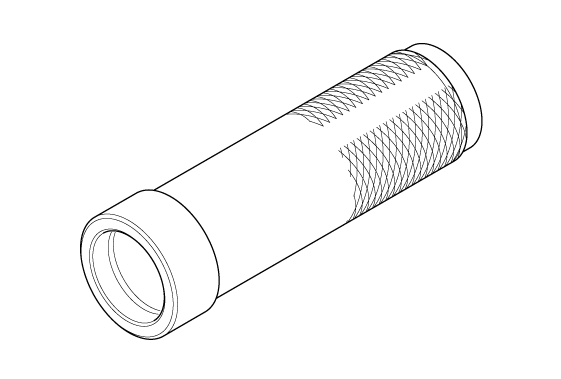

Courtesy of HONDA, U.S.A., INC.	Driver Handle, 40 mm I.D. 07746-0030100
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 30 mm I.D. 07746-0030300

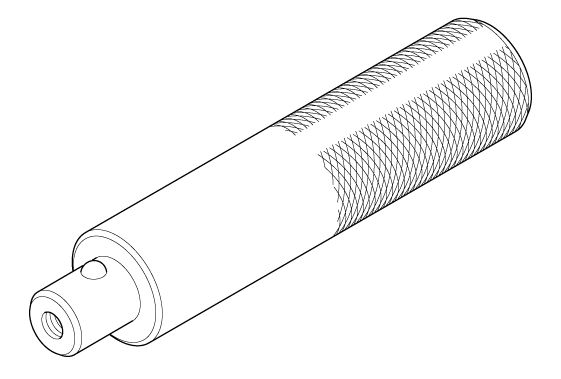

Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000
Courtesy of HONDA, U.S.A., INC.	Attachment, 40 mm 07947-6340300

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 64 mm 07947-6340400
Courtesy of HONDA, U.S.A., INC.	Attachment, 45 mm 07947-6890300
Courtesy of HONDA, U.S.A., INC.	Attachment, 78 x 90 mm 07GAD-SD40101

Image	Description/Tool Number

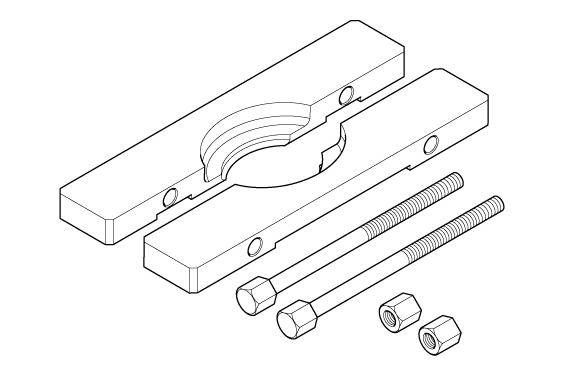

Courtesy of HONDA, U.S.A., INC.	Bearing Separator 07KAF-PS30200
Courtesy of HONDA, U.S.A., INC.	Attachment, 70 mm 07LAD-PW50500
Courtesy of HONDA, U.S.A., INC.	Installer Attachment 40 mm 07LAD-PW50601
Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver Attachment, 66 mm 07MAD-SP00100

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

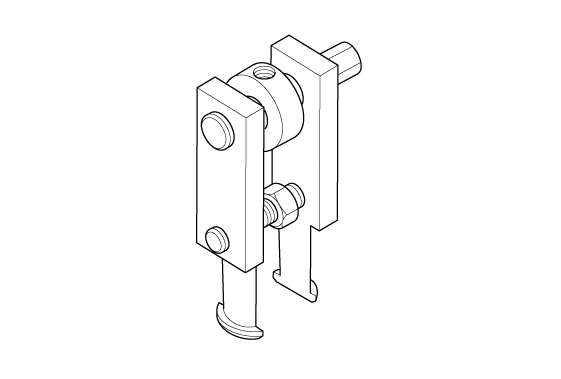

Courtesy of HONDA, U.S.A., INC.	Adjustable Bearing Puller, 45-75 mm 07YAC-0010102*

*: 07YAC-0010102 must be used with a commercially available 3/8"-16 slide hammer.

Transmission Components

Special Tools Required

Image	Description/Tool Number

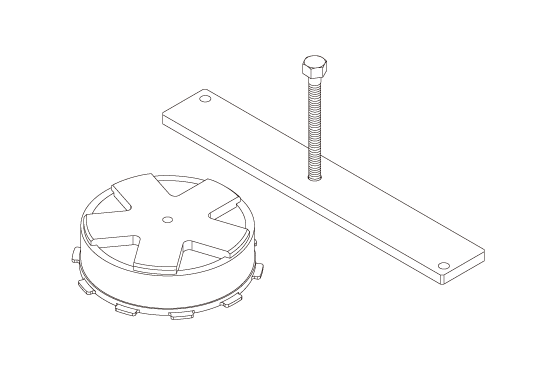

Courtesy of HONDA, U.S.A., INC.	Reverse Brake Spring Compressor Set 070AF-RJ2A100
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 72 x 75 mm 07746-0010600
Courtesy of HONDA, U.S.A., INC.	Attachment, 22 x 24 mm 07746-001A800
Courtesy of HONDA, U.S.A., INC.	Driver Handle, 40 mm I.D. 07746-0030100
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 30 mm I.D. 07746-0030300
Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000
Courtesy of HONDA, U.S.A., INC.	Attachment, 40 mm 07947-6340300
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 64 mm 07947-6340400
Courtesy of HONDA, U.S.A., INC.	Attachment, 45 mm 07947-6890300
Courtesy of HONDA, U.S.A., INC.	Attachment, 78 x 90 mm 07GAD-SD40101
Courtesy of HONDA, U.S.A., INC.	Bearing Separator 07KAF-PS30200
Courtesy of HONDA, U.S.A., INC.	Attachment, 70 mm 07LAD-PW50500
Courtesy of HONDA, U.S.A., INC.	Installer Attachment 40 mm 07LAD-PW50601
Courtesy of HONDA, U.S.A., INC.	Oil Seal Driver Attachment, 66 mm 07MAD-SP00100
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100
Courtesy of HONDA, U.S.A., INC.	Adjustable Bearing Puller, 45-75 mm 07YAC-0010102*

*: 07YAC-0010102 must be used with a commercially available 3/8"-16 slide hammer.
