MIL Circuit Troubleshooting: Inspection

Gauge Control Module Inspection

Test Procedure

• Procedure
  1. -

     Do the gauge control module self-diagnostic function .

• Normal Conditions
  1. -

     MIL blinks.

Results

• If it is abnormal, there is a problem with the gauge control module.

SCS Shorted Wire Inspection

Test Procedure

• Preparation
  1. -

     PCM connector A (50P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following table.

     Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

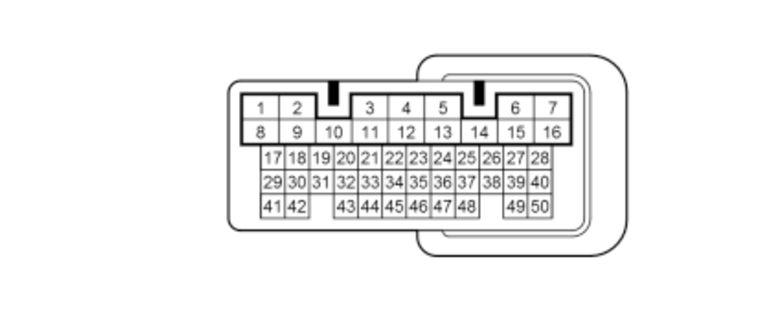

			(Disconnected) PCM connector A (50P)  female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SCS shorted to ground inspection	OFF		There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
