Inspection Outline

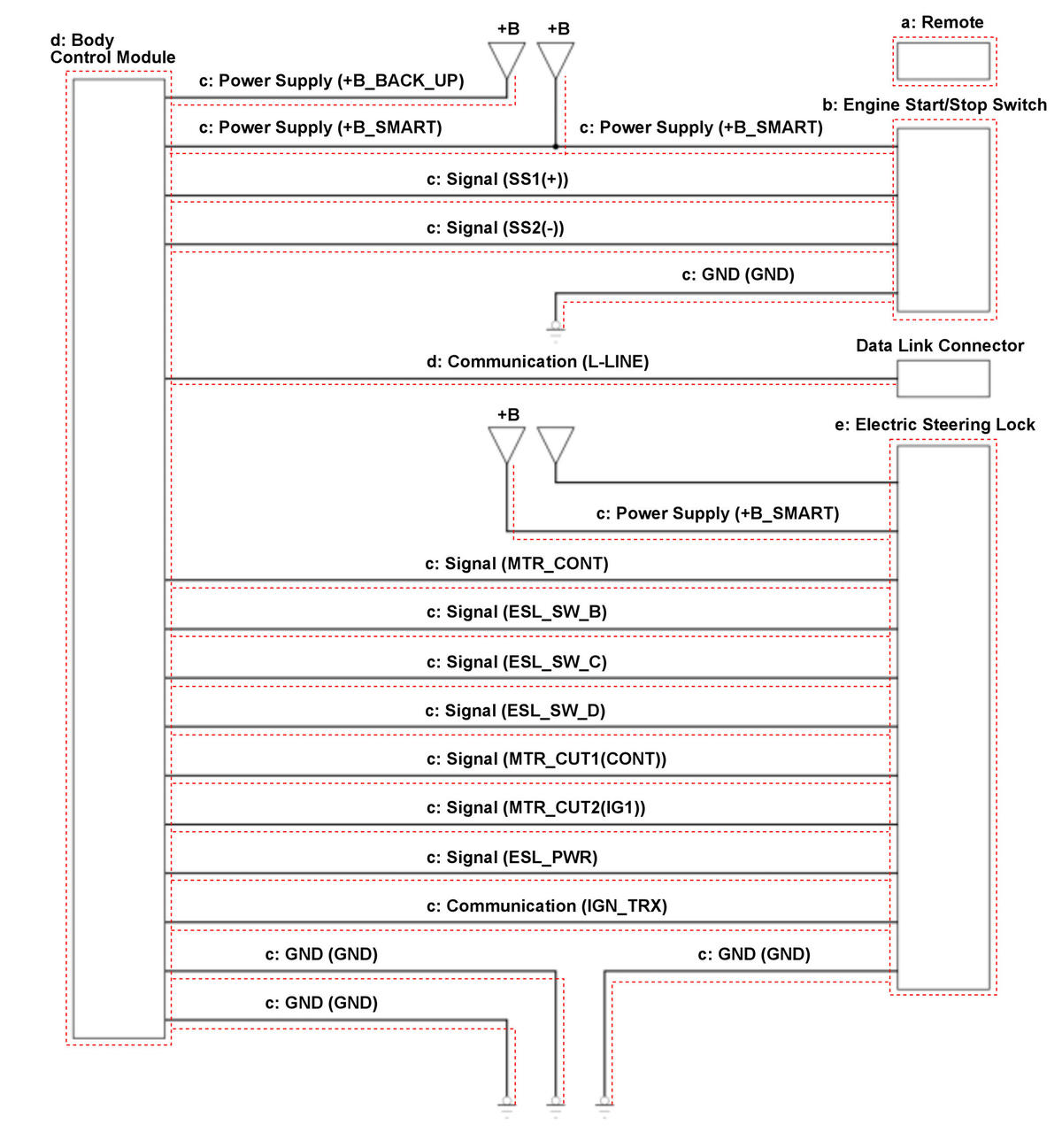

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
- -
Keyless Access System [Keyless Access Control Unit], [Backup Control Unit], [Power Control Unit]: Go to the indicated DTC's troubleshooting .
- -
NOTE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- (Application 1) Do the HDS [Self Check]
- -
The system communicate with the HDS:
- -
The system does not communicate with the HDS:
- -
- (Application 2) Reboot the HDS and select YES when asked if the vehicle has keyless access system, this selects the forced ON mode
- -
The system changes to forced ON mode:
- -
The system does not change to forced ON mode:
- -
| Inspection Items | Work Items | Application 1 | Application 2 | |||
|---|---|---|---|---|---|---|
| a | Remote | Do the Keyless Access Remote Test | o | o | o | o |
| b | Engine Start/Stop Switch | Do the Engine Start/Stop Switch Test | o | o | o | o |
| c | External Circuit | +B_SMART, SS1(+), SS2(-), GND Circuit Inspection | o | |||
| +B_BACK_UP, GND, +B_SMART Circuit Inspection | o | o | o | |||
| +B_SMART, MTR_CONT, ESL_SW_B, ESL_SW_C, ESL_SW_D, MTR_CUT1(CONT), MTR_CUT2(IG1), ESL_PWR, IGN_TRX, GND Circuit Inspection | o | o | o | |||
| L-LINE Circuit Inspection | o | |||||
| d | Body Control Module | Body Control Module Inspection | o | o | o | o |
| e | Electric Steering Lock | Electric Steering Lock Inspection | o | o | o | o |
