Front Passenger's Power Window Switch Connector for Inputs and Outputs

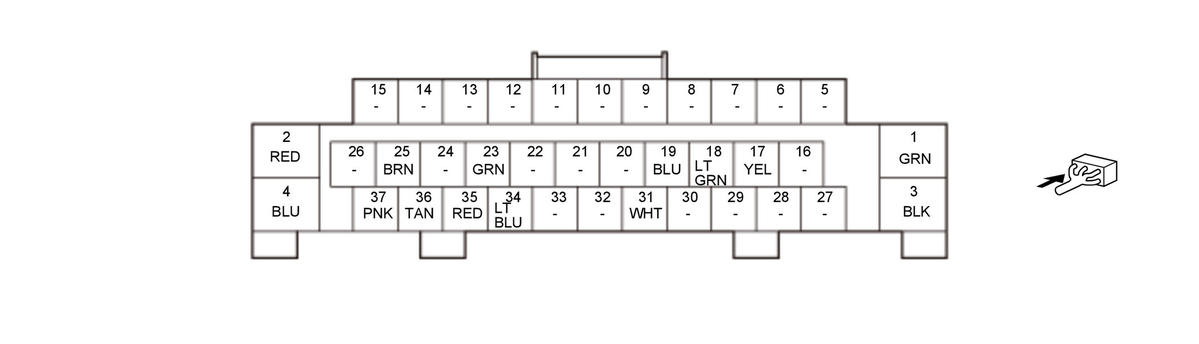

Front Passenger's Power Window Switch Connector (37P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	+B_P/W_AS	Power source for front passenger's power window switch
2	P/W_AS_MTR_DOWN	Drives front passenger's power window motor
3	GND	Ground for front passenger's power window switch
4	P/W_AS_MTR_UP	Drives front passenger's power window motor
5	Not used	---
6	Not used	---
7	Not used	---
8	Not used	---
9	Not used	---
10	Not used	---
11	Not used	---
12	Not used	---
13	Not used	---
14	Not used	---
15	Not used	---
16	Not used	---
17	AS_MIRROR_COM	Detects AS_MIRROR_COM signal
18	AS_MIRROR_UD	Detects AS_MIRROR_UD signal
19	AS_MIRROR_LR	Detects AS_MIRROR_LR signal
20	Not used	---
21	Not used	---
22	Not used	---
23*	H/MIRROR_AS	Outputs H/MIRROR_AS signal
24	Not used	---
25	P/W_AS_MTR_SGND	Ground for front passenger's power window motor
26	Not used	---
27	Not used	---
28	Not used	---
29	Not used	---
30	Not used	---
31	P/W_AS_MTR_VCC	Outputs P/W_AS_MTR_VCC signal
32	Not used	---
33	Not used	---
34	LIN(P/W)	Communication line

*: With mirror defogger

Terminal number	Terminal name	Description
35	P/W_AS_MTR_PLSA	Detects P/W_AS_MTR_PLSA signal
36	AS_SILCON_UNLOCK	Detects AS_SILCON_UNLOCK signal
37	P/W_AS_MTR_PLSB	Detects P/W_AS_MTR_PLSB signal

*: With mirror defogger
