Security Horn Removal, Installation, and Test: Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Honda HR-V, 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, and 2018 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

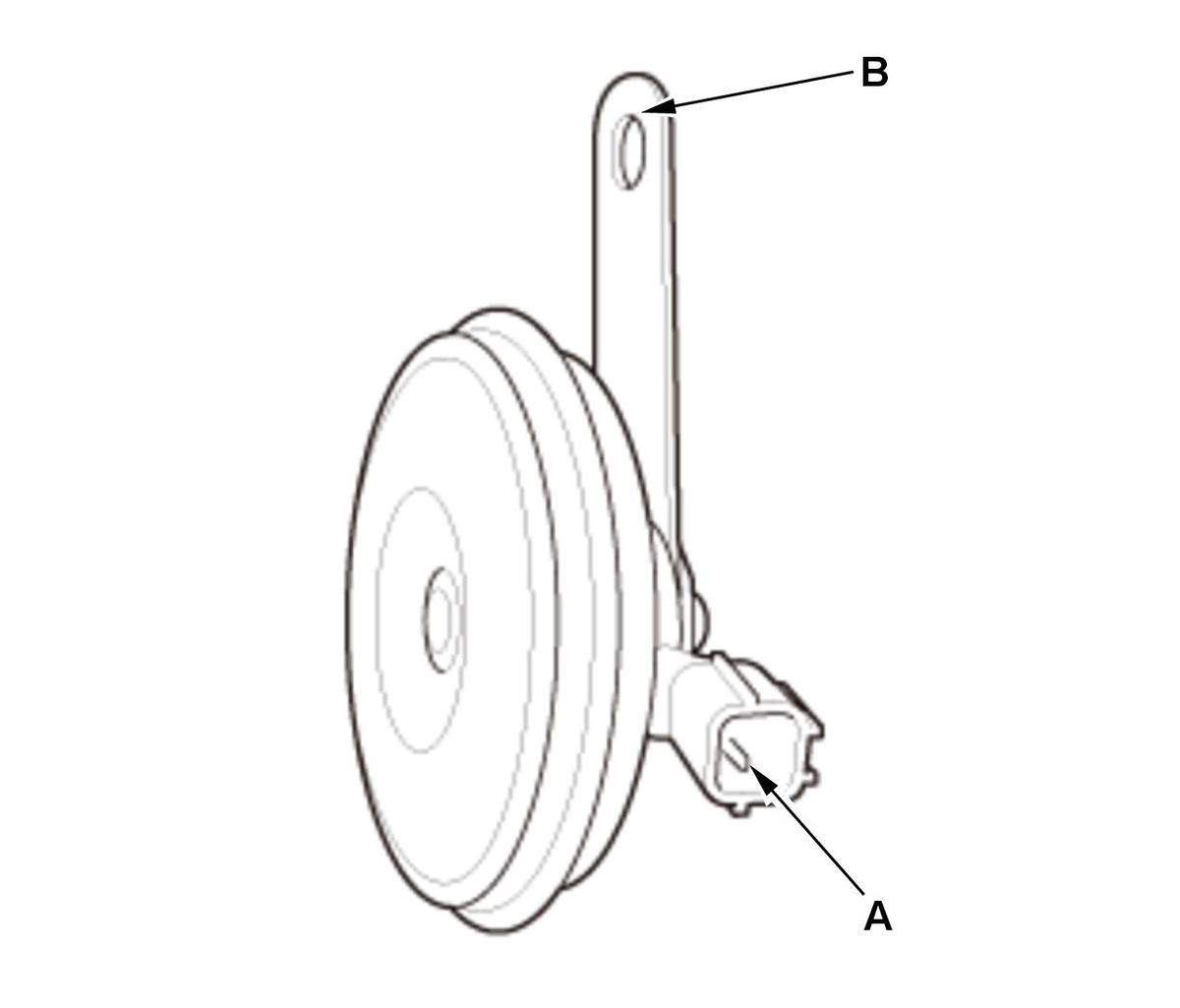

  1. Security Horn - Test
    GHH438589Courtesy of HONDA, U.S.A., INC.
    		 1. Test the horn by momentarily connecting 12 volt battery power to the terminal (A) and grounding the bracket (B). The horn should sound.

    2. If it fails to sound, replace the security horn.
