Climate Control System Component Location Index

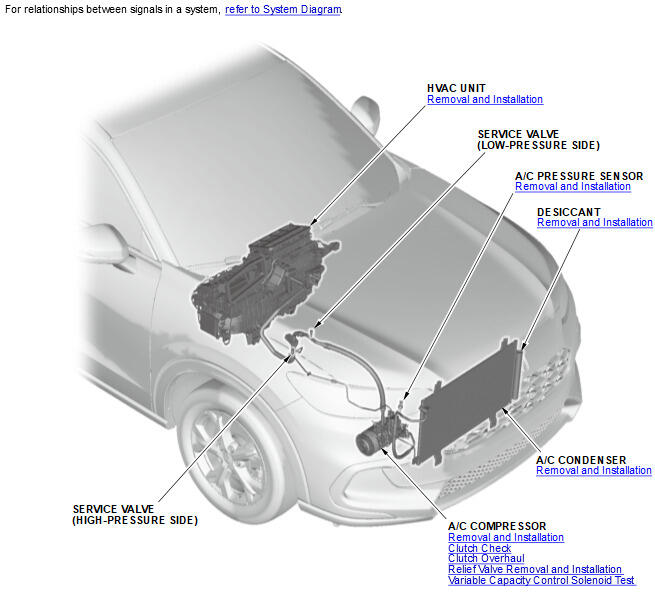

GHH540332Courtesy of HONDA, U.S.A., INC.

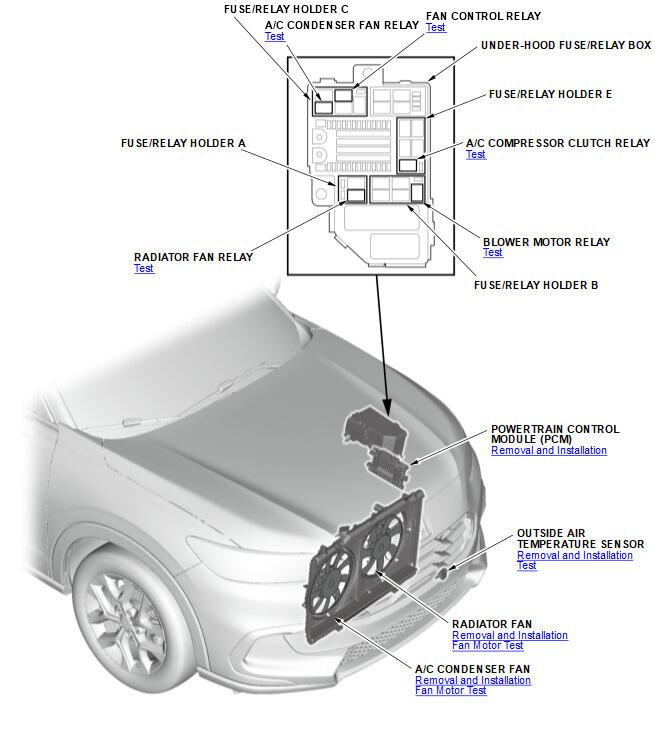

GHH540333Courtesy of HONDA, U.S.A., INC.

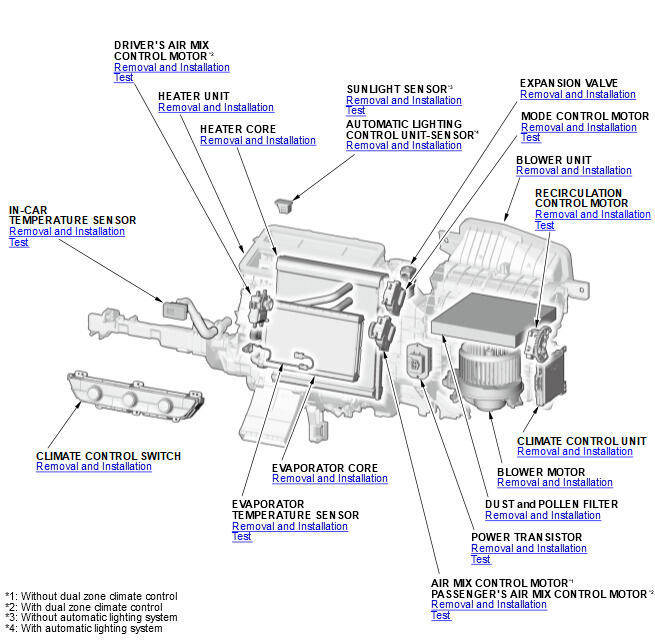

GHH540334Courtesy of HONDA, U.S.A., INC.
