Power Seat Control Unit Connector for Inputs and Outputs
| Connector Index |
| Power Seat Control Unit Connector A (20P) |
| Power Seat Control Unit Connector B (12P) |

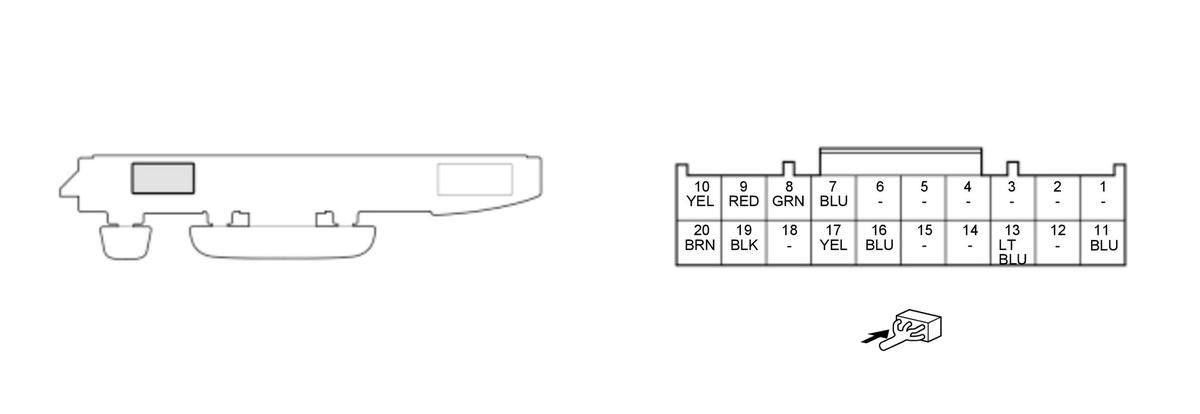

Power Seat Control Unit Connector A (20P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
- - - |
Not used |
| 2 |
- - - |
Not used |
| 3 |
- - - |
Not used |
| 4 |
- - - |
Not used |
| 5 |
- - - |
Not used |
| 6 |
- - - |
Not used |
| 7 |
TI_SE |
Detects tilt motor position sensor signal |
| 8 |
SLSE |
Detects slide motor position sensor signal |
| 9 |
HT_SE |
Detects height motor position sensor signal |
| 10 |
RESE |
Detects recline motor position sensor signal |
| 11 |
+B_BACK_UP |
+B power source |
| 12 |
- - - |
Not used |
| 13 |
IG1_OPTION |
IG1 power source |
| 14 |
- - - |
Not used |
| 15 |
- - - |
Not used |
| 16 |
BB-CAN_H |
Communication line |
| 17 |
BB-CAN_L |
Communication line |
| 18 |
- - - |
Not used |
| 19 |
SEG |
Ground for position sensors |
| 20 |
SGND |
Power seat control unit ground |

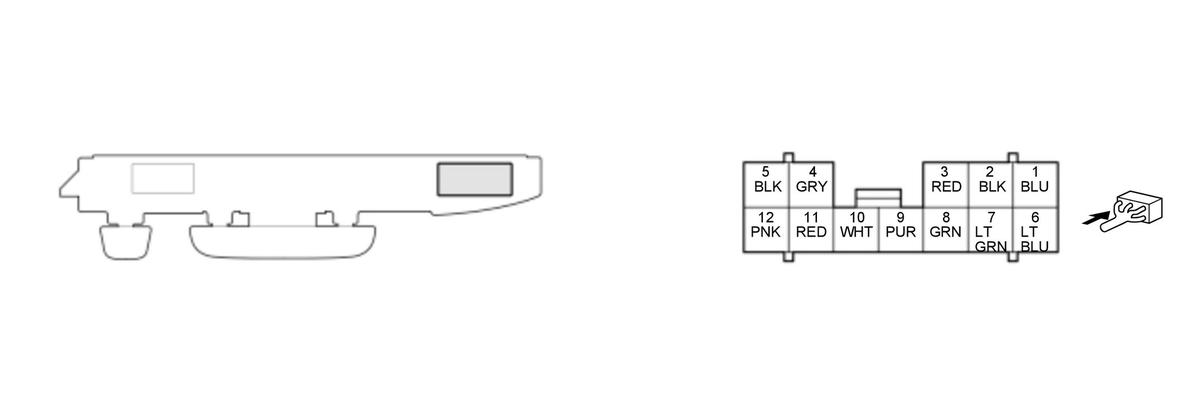

Power Seat Control Unit Connector B (12P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
SL_RR |
Drives slide motor |
| 2 |
GND |
Power seat control unit ground |
| 3 |
SL_FR |
Drives slide motor |
| 4 |
HT_DWN |
Drives height motor |
| 5 |
GND |
Power seat control unit ground |
| 6 |
+B_DR_P/SEAT_SLIDE |
+B power source |
| 7 |
TI_DWN |
Drives tilt motor |
| 8 |
REC_FR |
Drives recline motor |
| 9 |
HT_UP |
Drives height motor |
| 10 |
TI_UP |
Drives tilt motor |
| 11 |
REC_RR |
Drives recline motor |
| 12 |
+B_DR_P/SEAT_REC |
+B power source |
