DTC Advanced Diagnostics: P05B2: General Description

Courtesy of HONDA, U.S.A., INC.

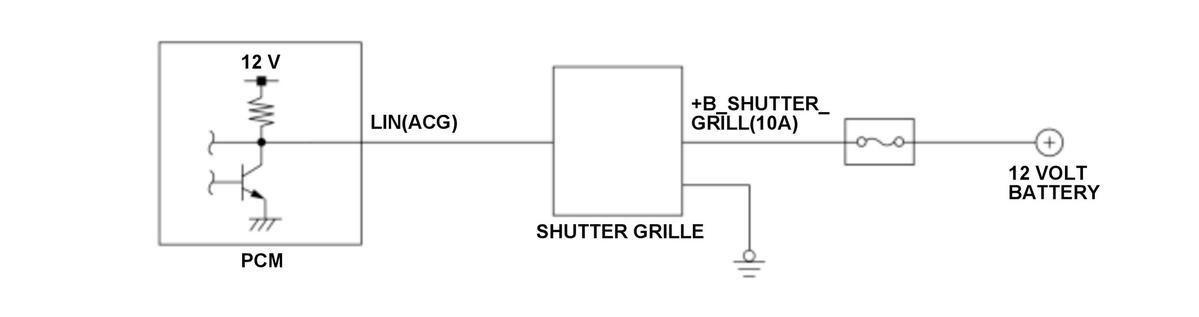

The shutter grille system opens/closes the shutter depending on the driving conditions. The system improves fuel efficiency by reducing the wind drag. The shutter is controlled by the shutter grille which integrates the actuator with CPU. The powertrain control module (PCM) sends open/close requests which depends on the driving conditions to the shutter grille via the local interconnect network (LIN) line. If the shutter grille actuator detects the shutter grille system as electrically abnormal or LIN communication abnormal, the PCM confirms the abnormality and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type
