Repair Procedure

How to use this manual .

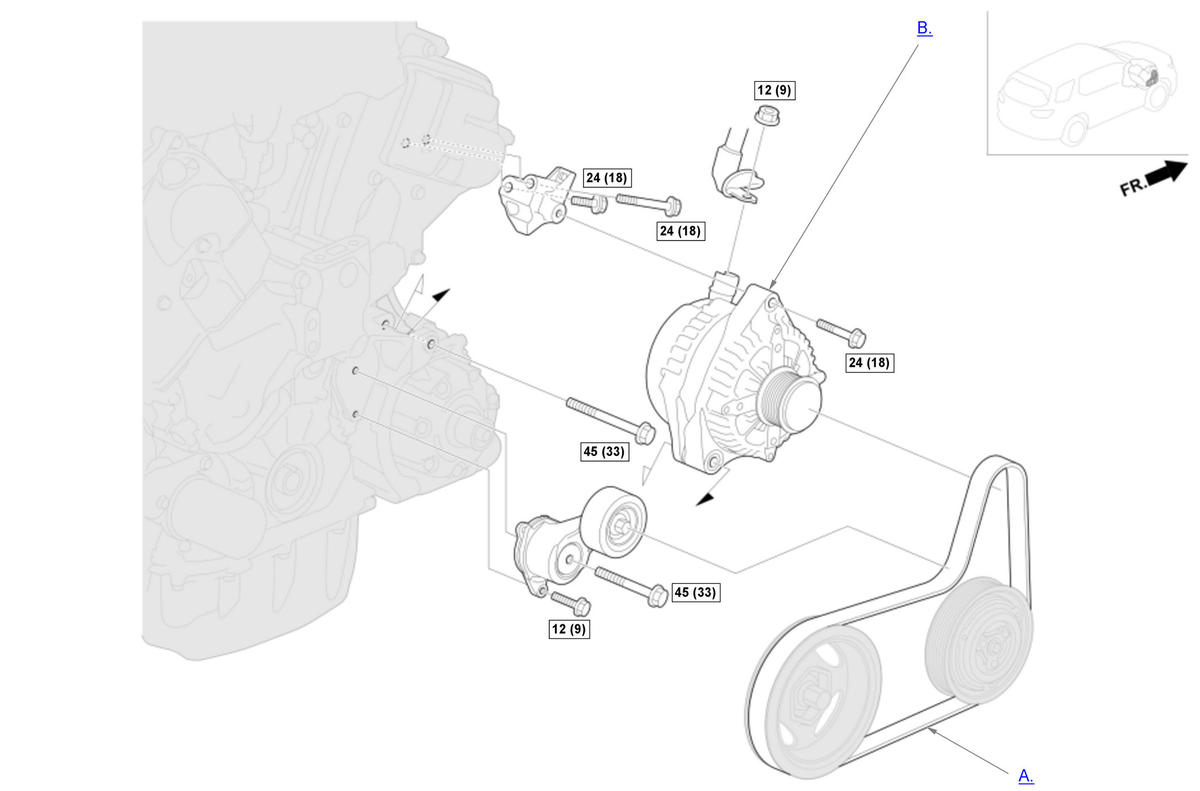

Alternator Area Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

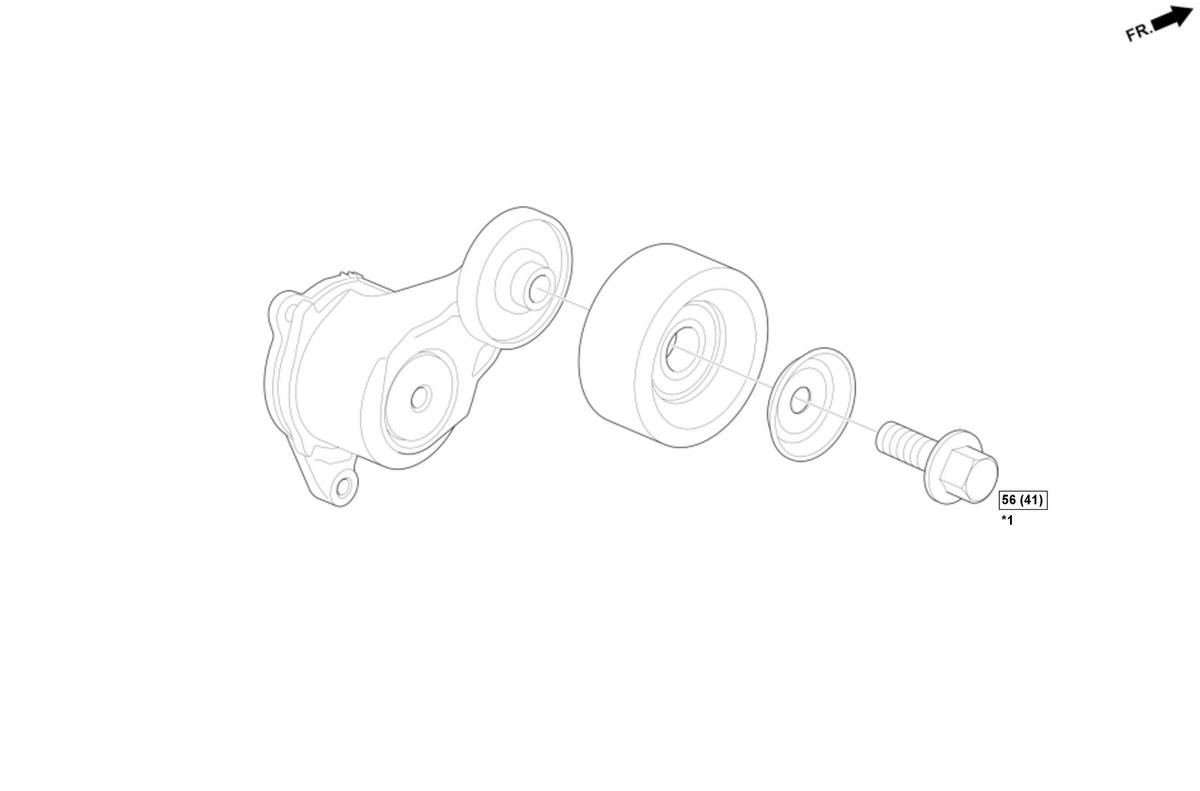

Alternator Area Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Key Information

   Do the following before starting your work.

   Remove:

   • Right Front Wheel

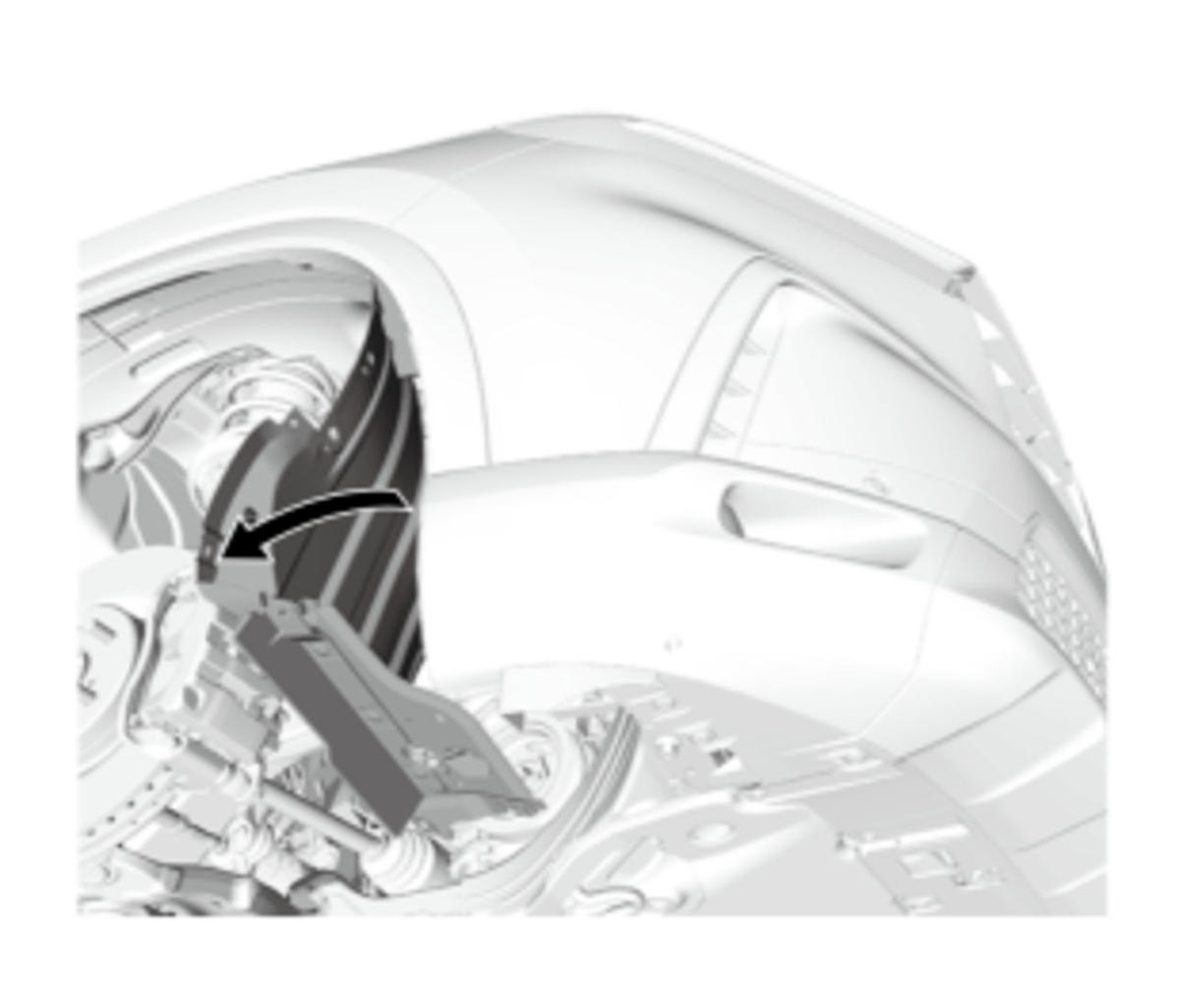

   • Right Front Inner Fender (As Needed) (Figure 1)

   Sub-Procedure

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Removal

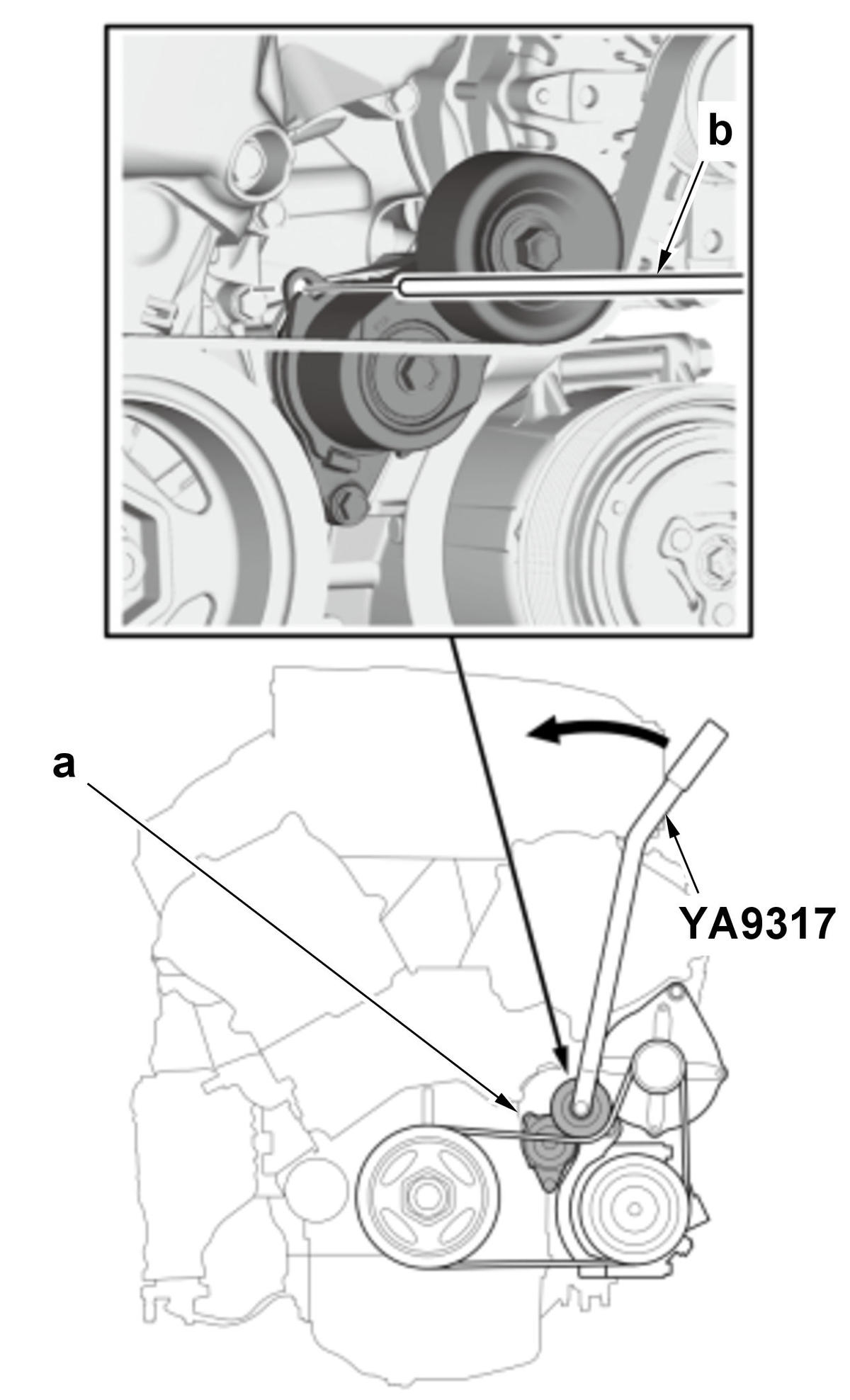

   1. Set a wrench on the drive belt auto-tensioner (a), and slowly turn the wrench in the direction of the arrow. (Figure 2)

   2. Insert a pin (b) into the hole. (Figure 2)

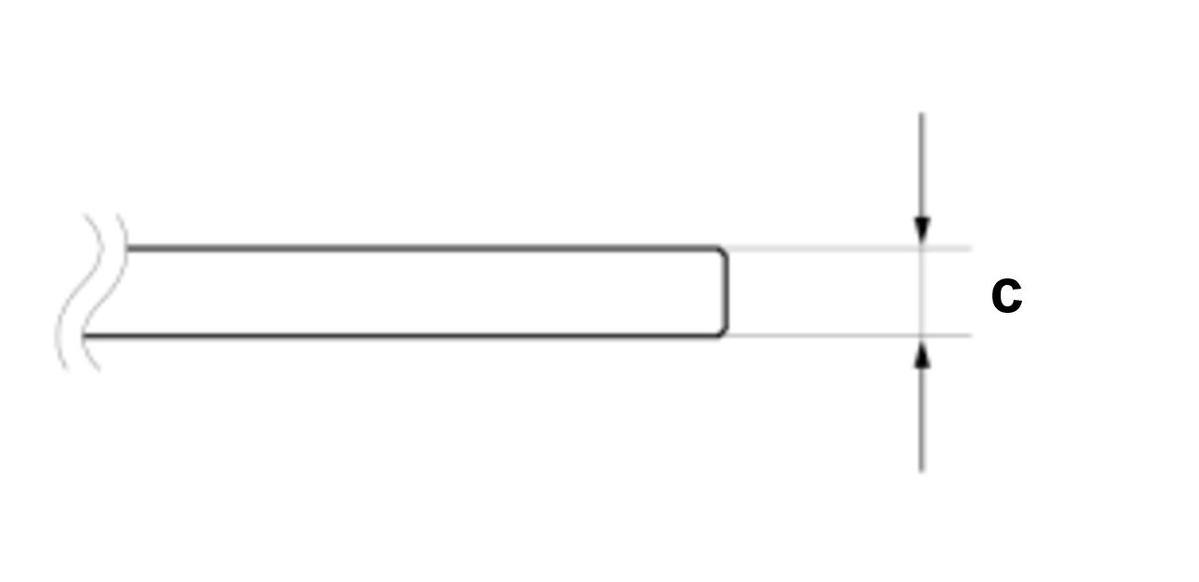

   Pin Specifications (Figure 3)

   Standard Value
   c	6.0 mm (15/64 in)

2. B.-

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnect

   Key Information

   Do the following before starting your work.

   Remove:

   • A/C Condenser Fan Shroud Assembly

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

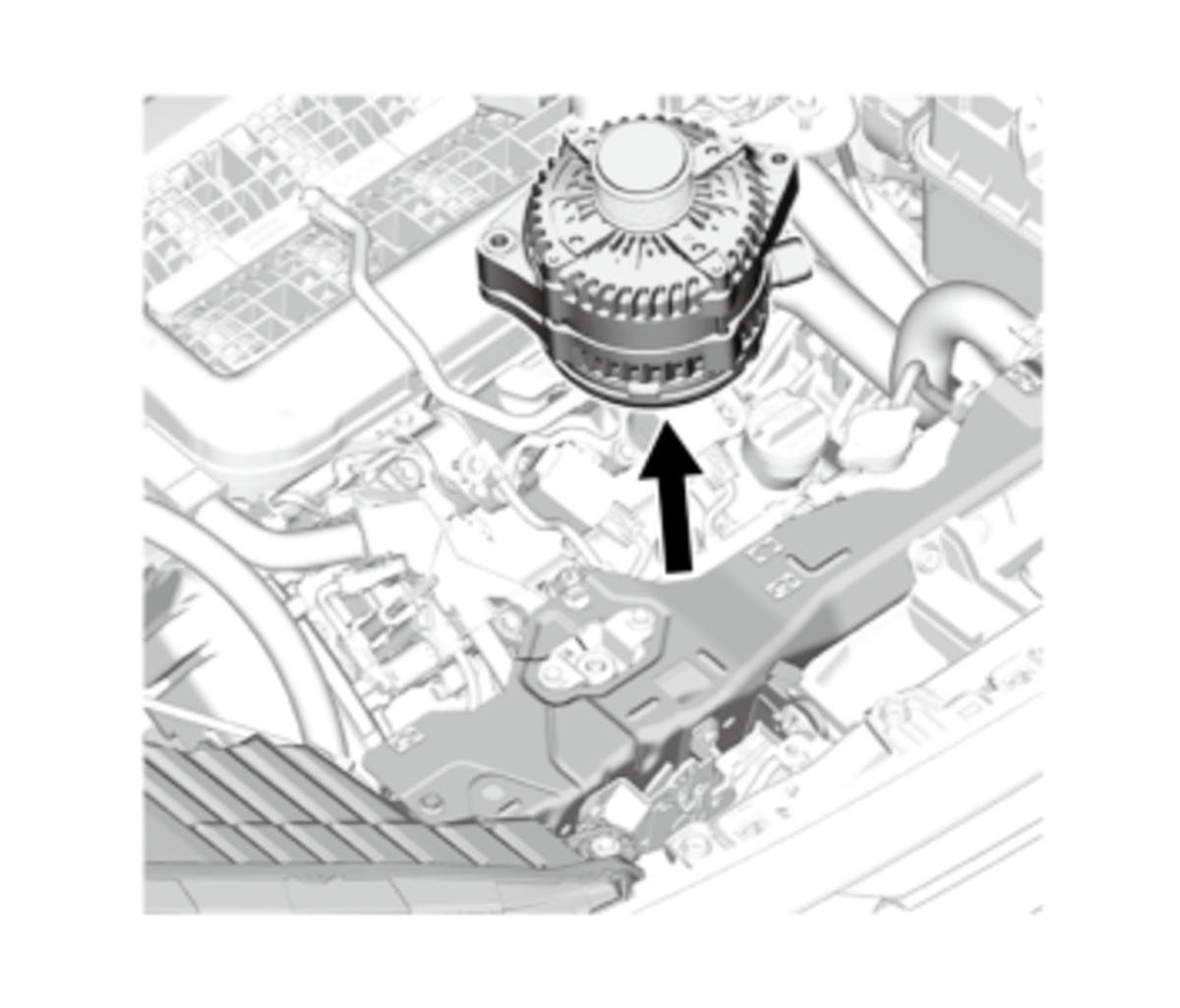

   • Remove the alternator as shown.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect
