Exploded View
| *1: With multi view camera system *2: With side turn signal light *3: Without side turn signal light |
| *1: With puddle light *2: Without puddle light *3: With multi view camera system *4: Without multi view camera system |

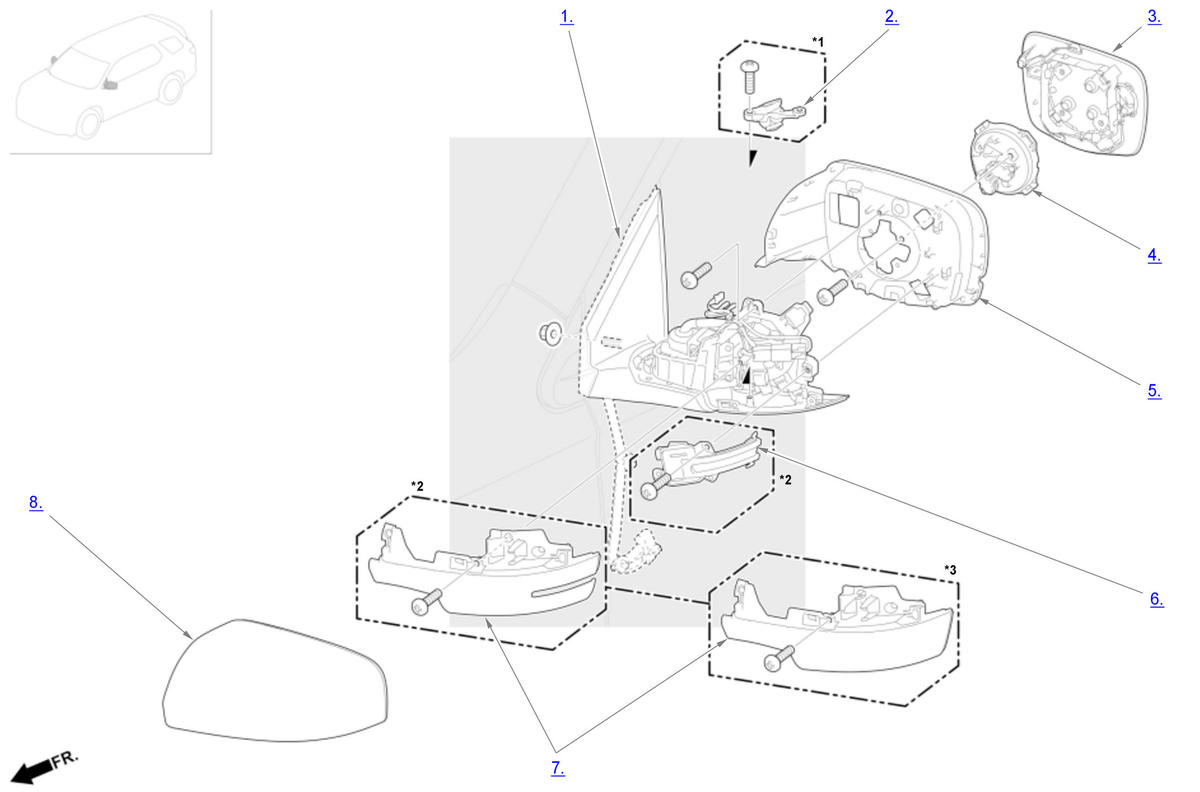

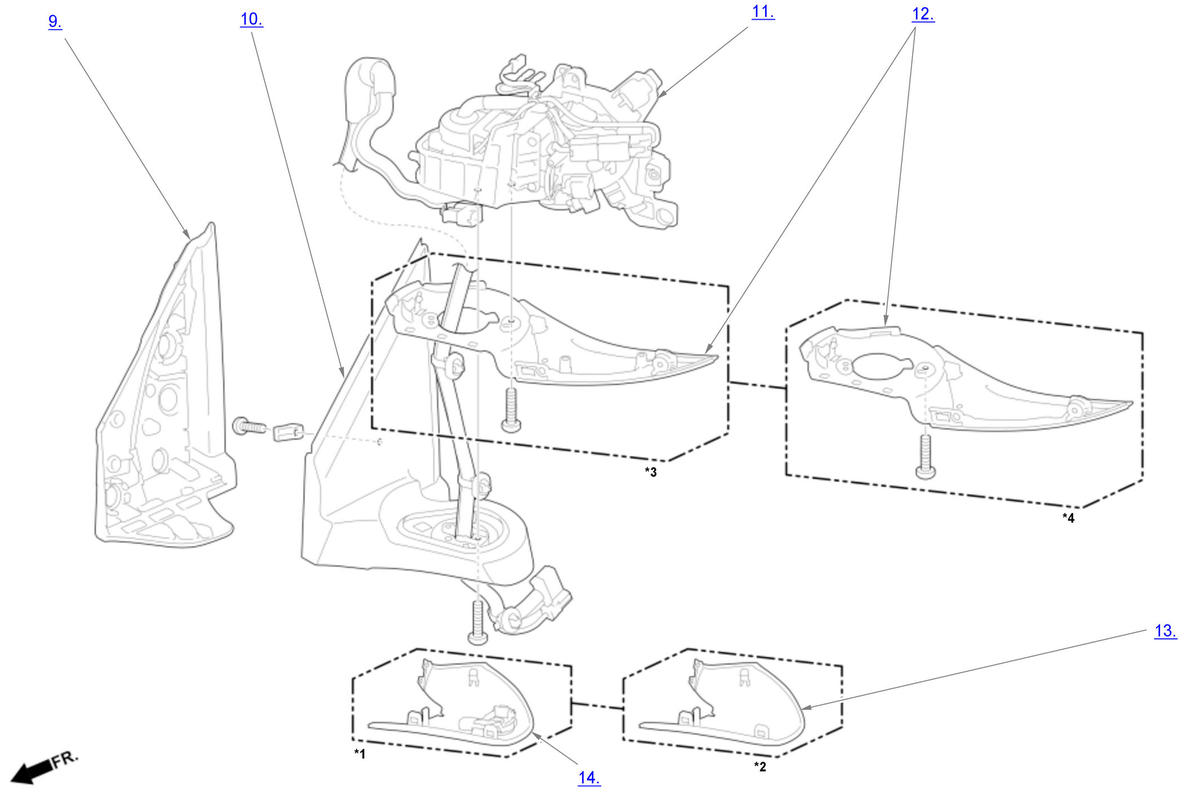

Outside Mirror Area
| Component Name | Callout |
|---|---|
| Power Mirror Assembly | 1 |
| Multi View Side Camera | 2 |
| Mirror Holder | 3 |
| Power Mirror Actuator | 4 |
| Mirror Visor | 5 |
| Side Turn Signal Light | 6 |
| Front Mirror Housing Lower Cover | 7 |
| Mirror Housing Upper Cover | 8 |
| Base Seat | 9 |
| Mirror Base | 10 |
| Mirror Housing/Power Mirror Retract Actuator | 11 |
| Rear Mirror Housing Lower Cover | 12 |
| Outer Base Cover (Without Puddle Light) | 13 |
| Outer Base Cover/Front Door Puddle Light (With Puddle Light) | 14 |
| Power Mirror Retract Actuator | 15 |
| Mirror Housing | 16 |

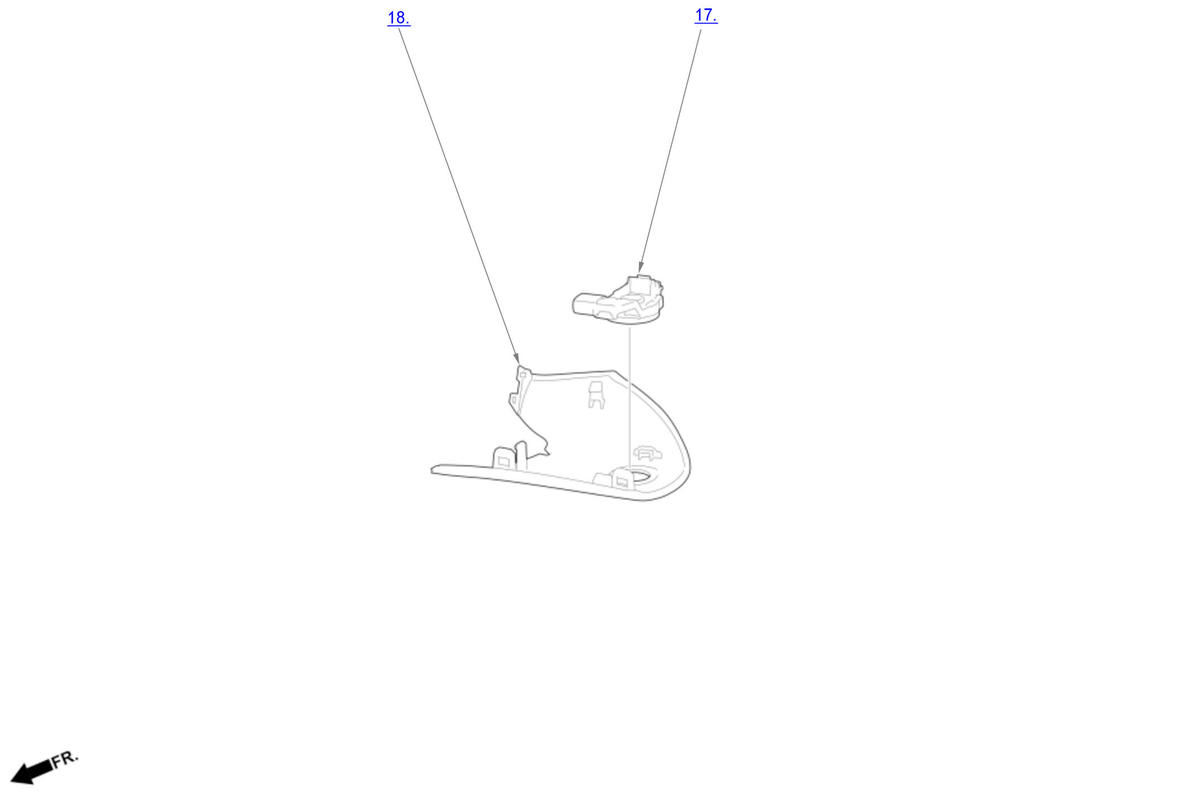

| Outer Base Cover(With Puddle Light) | 17 |
| Front Door Puddle Light (With Puddle Light) | 18 |
