Removal and Installation

How to use this manual .

NOTE:

• Where icon is shown, click for further information.
• This procedure must be used in conjunction with the information and sub procedures listed in the intake manifold supplemental information.

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

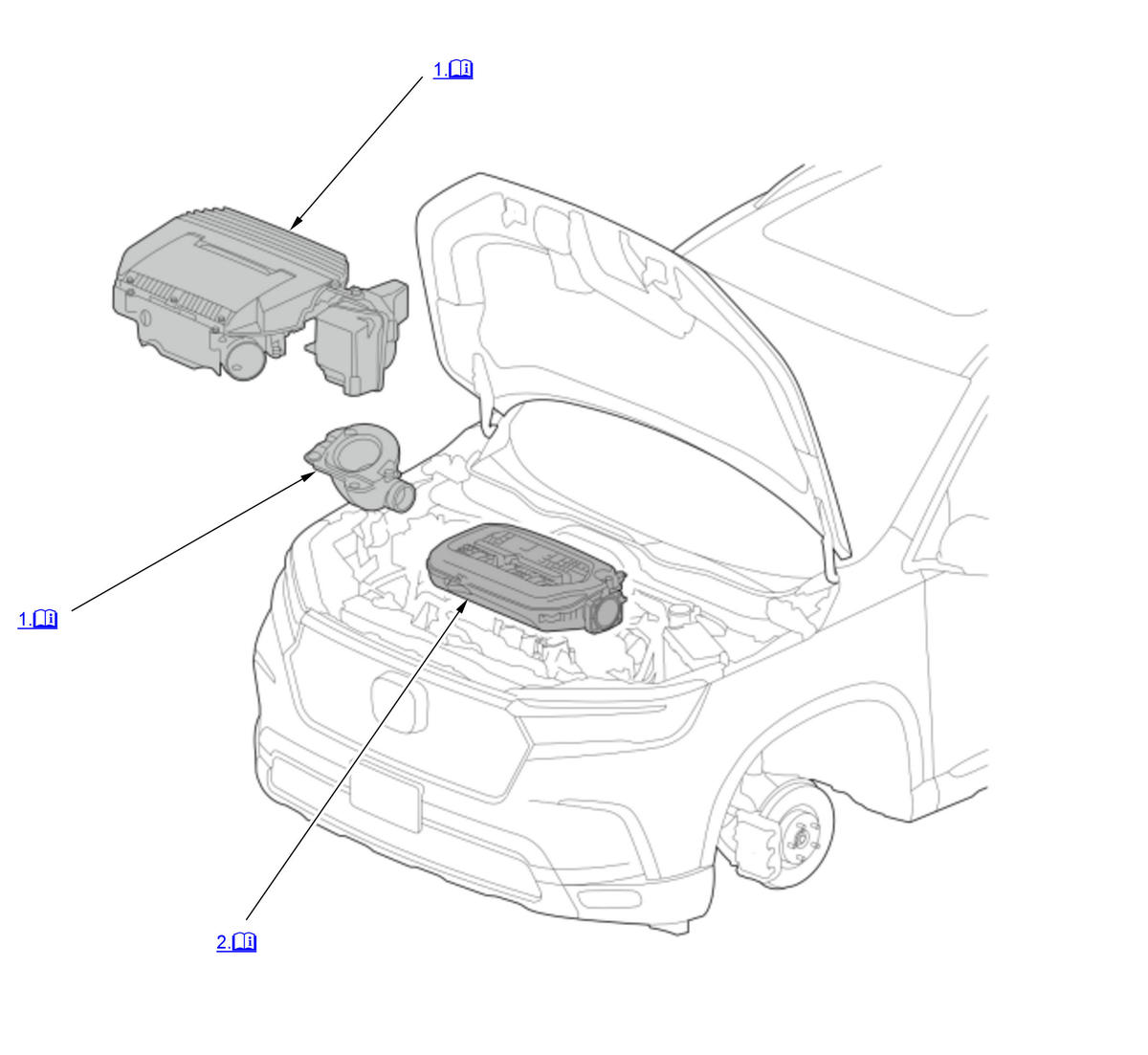

1. Air Cleaner Area Parts - Remove
   • Air Cleaner Area
   • • Air Cleaner Housing
     • Air Flow Chamber
     • Air Intake Tube
2. Intake Manifold Area Parts - Remove/Move
   • Intake Manifold Area
   • • Throttle Body

       NOTE:  Do not disconnect and excessively bend the water bypass hoses.

     • Intake Manifold
3. All Removed Parts - Install
   • Install the parts in the reverse order of removal.
