DTC Advanced Diagnostics: P060A: General Description

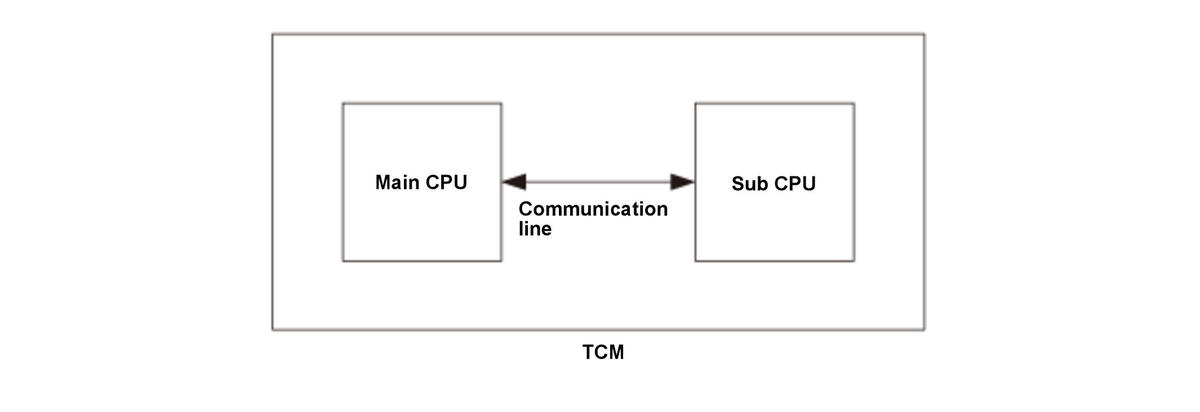

If abnormality is occurred in the transmission control module (TCM) and no monitor signal from the sub CPU are continuously detected for a specified time, or the abnormalities of the sub CPU are continuously detected for a specified time, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 3 consecutive times |
| DTC Type | One drive cycle, MIL on, shift position indicator blinks |
