DTC Advanced Diagnostics: P0697: General Description

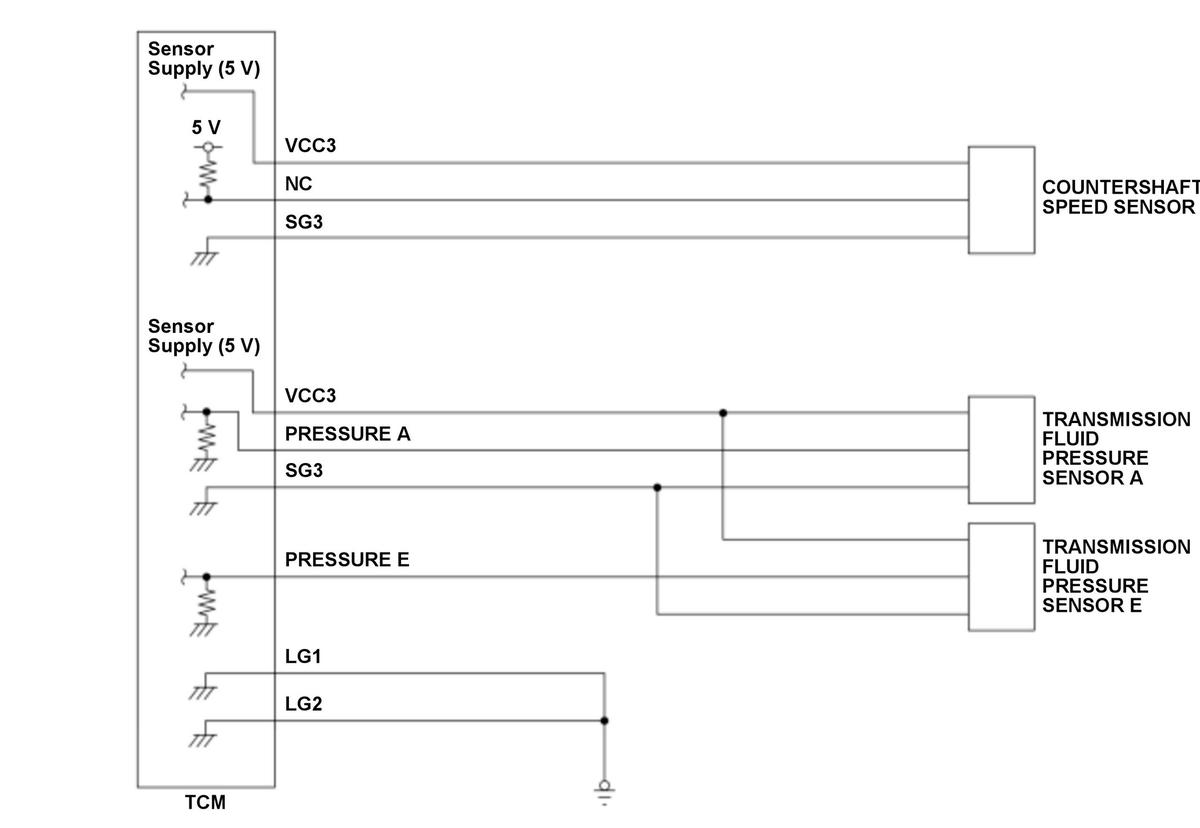

The transmission control module (TCM) is equipped with a sensor supply (5 V power source) to supply a stable 5 V to each sensor as reference voltage. The correct voltages for the sensors are loaded in the CPU of the TCM (A/D input) and when the sensor supply voltage (VCC3) is a set value (high or low) for a certain time, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 0.25 second or more |
| DTC Type | One drive cycle, MIL on, shift position indicator blinks |
